FUSE 125V V/FA NANO2 W/Au CAPS RoHS.375A
Description
AI

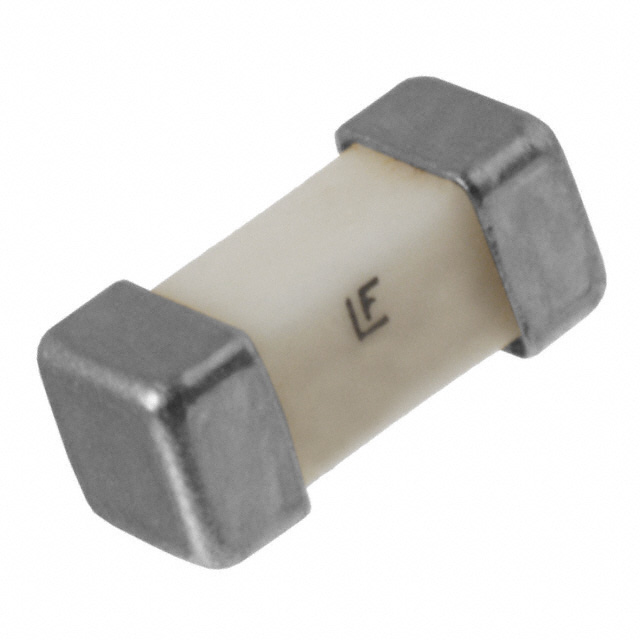

The Nano2 SMF Fuse is a very small, square surface mount fuse that is also available in a surface mount holder.
Beta
⌘K
FUSE 125V V/FA NANO2 W/Au CAPS RoHS.375A
FUSE 125V V/FA NANO2 W/Au CAPS RoHS.375A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Response Time | Voltage Rating - DC | Mounting Type | Voltage Rating - AC | Approval Agency | Breaking Capacity @ Rated Voltage | Melting I²t | Current Rating (Amps) | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | -55 C | 125 °C | Board Mount (Cartridge Style Excluded) | Fast Blow | 125 VDC | Surface Mount | 125 V | CSA UL | 50 A | 0.0425 | 375 mA | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm |
LITTELFUSE | -55 C | 125 °C | Board Mount (Cartridge Style Excluded) | Fast Blow | 125 VDC | Surface Mount | 125 V | CSA UL | 50 A | 0.0425 | 375 mA | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm |
LITTELFUSE | -55 C | 125 °C | Board Mount (Cartridge Style Excluded) | Fast Blow | 125 VDC | Surface Mount | 125 V | CSA UL | 50 A | 0.0425 | 375 mA | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm |
LITTELFUSE | -55 C | 125 °C | Board Mount (Cartridge Style Excluded) | Fast Blow | 125 VDC | Surface Mount | 125 V | CSA UL | 50 A | 0.0425 | 375 mA | 2-SMD Square End Block | 0.106 in | 2.69 mm | 0.24 " | 6.1 mm | 0.106 in | 2.69 mm |
