16SEPC Series

Manufacturer: Panasonic Electronic Components

Catalog

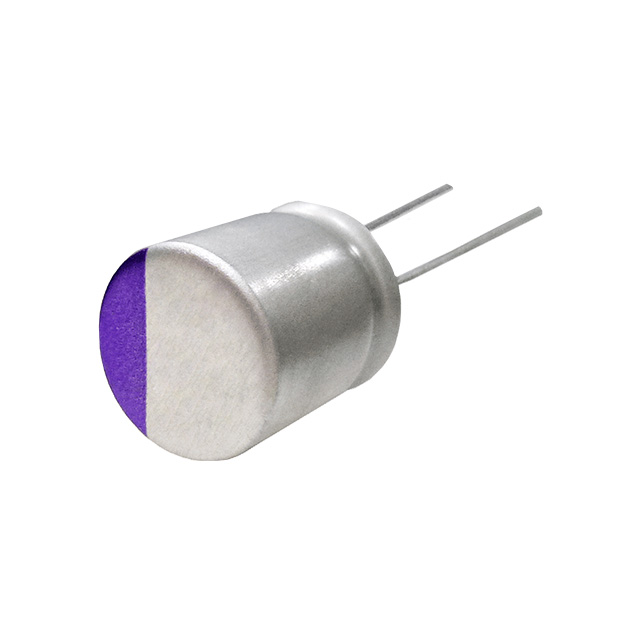

CAP ALUM POLY 150UF 20% 16V T/H

Part	Lifetime @ Temp.	Mounting Type	Voltage - Rated	Type	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	ESR (Equivalent Series Resistance)	Applications	Ripple Current @ Low Frequency	Height - Seated (Max)
Panasonic Electronic Components 16SEPC150MD+S	5000 Hrs	Through Hole	16 V	Polymer	3.22 A	0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	150 µF	0.276 in	7 mm	0.315 in	8 mm	20 %	22 mOhms	General Purpose	161 mA
Panasonic Electronic Components 16SEPC150MD	5000 Hrs	Through Hole	16 V	Polymer	3.22 A	0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	150 µF	0.276 in	7 mm	0.315 in	8 mm	20 %	22 mOhms	General Purpose	161 mA
Panasonic Electronic Components 16SEPC100M+TSS	5000 Hrs	Through Hole	16 V	Polymer	2.49 A	0.098 in	2.5 mm	Can Radial	-55 C	105 ░C	100 µF	0.236 "		0.248 "	6.3 mm	20 %	24 mOhms	General Purpose	124.5 mA	6 mm
Panasonic Electronic Components 16SEPC220MD+S	5000 Hrs	Through Hole	16 V	Polymer	4.15 A	0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	220 µF	0.276 in	7 mm	0.315 in	8 mm	20 %	13 mOhms	General Purpose	207.5 mA
Panasonic Electronic Components 16SEPC220MD	5000 Hrs	Through Hole	16 V	Polymer	4.15 A	0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	220 µF	0.276 in	7 mm	0.315 in	8 mm	20 %	13 mOhms	General Purpose	207.5 mA
Panasonic Electronic Components 16SEPC100MW+S	5000 Hrs	Through Hole	16 V	Polymer	4.68 A	0.098 in	2.5 mm	Can Radial	-55 C	105 ░C	100 µF	0.354 in	9 mm	0.248 "	6.3 mm	20 %	10 mOhm	General Purpose	234 mA
Panasonic Electronic Components 16SEPC270M	5000 Hrs	Through Hole	16 V	Polymer		0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	270 µF	0.472 in		0.315 in	8 mm	20 %	11 mOhm	General Purpose	250 mA	12 mm
Panasonic Electronic Components 16SEPC180M	5000 Hrs	Through Hole	16 V	Polymer	4.36 A	0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	180 µF	0.354 in	9 mm	0.315 in	8 mm	20 %	16 mOhm	General Purpose	218 mA
Panasonic Electronic Components 16SEPC100MW	5000 Hrs	Through Hole	16 V	Polymer	4.68 A	0.098 in	2.5 mm	Can Radial	-55 C	105 ░C	100 µF	0.354 in	9 mm	0.248 "	6.3 mm	20 %	10 mOhm	General Purpose	234 mA
Panasonic Electronic Components 16SEPC180M+TSS	5000 Hrs	Through Hole	16 V	Polymer	4.36 A	0.138 in	3.5 mm	Can Radial	-55 C	105 ░C	180 µF	0.354 in	9 mm	0.315 in	8 mm	20 %	16 mOhm	General Purpose	218 mA
