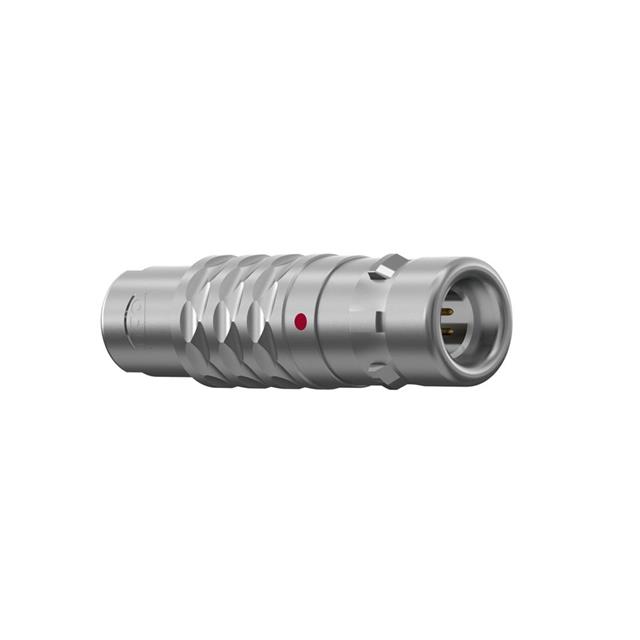

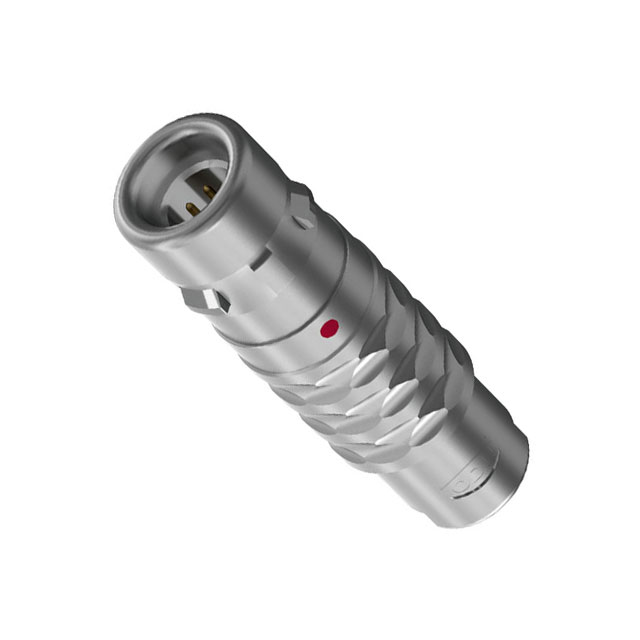

S10K0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 2P GOLD SLDR CUP
| Part | Shell Finish | Features | Orientation | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Fastening Type | Applications | Ingress Protection | Mounting Type | Contact Material | Number of Positions | Primary Material | Shell Size - Insert [custom] | Connector Type | Insert Material | Contact Finish - Mating | Shielding | Color | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Current Rating (Amps) | Backshell Material, Plating | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome over Nickel | Backshell | 0 | 0.157 in | 4 mm | 0.138 " | 3.5 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 2 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel | |||
Chrome over Nickel | Backshell | 0 | 0.118 " | 3 mm | 0.098 in | 2.5 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 2 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel | |||
Chrome over Nickel | Backshell | 0 | 0.098 in 2.5 mm | 0.079 in 2 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 9 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 4 A | Brass Chrome over Nickel | |||||
Chrome over Nickel | Backshell | 0 | 0.138 in | 3.5 mm | 0.118 in | 3 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 2 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel | |||
Chrome over Nickel | Backshell | 0 | 0.177 " | 4.5 mm | 0.157 in | 4 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 7 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 4 A | Brass Chrome over Nickel | |||
Chrome over Nickel | Backshell | 0 | 0.079 " | 2 mm | 0.059 " | 1.5 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 5 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel | |||
Chrome over Nickel | Backshell | 0 | 0.138 in | 3.5 mm | 0.118 in | 3 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 10 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 4 A | Brass Chrome over Nickel | |||
Chrome over Nickel | Backshell | 0 | 0.118 " | 3 mm | 0.098 in | 2.5 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 4 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel | 300 VDC | Crimp | |
Chrome over Nickel | Backshell | 0 | 0.079 " | 2 mm | 0.059 " | 1.5 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 4 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel | 300 VDC | ||
Chrome over Nickel | Backshell | 0 | 0.177 " | 4.5 mm | 0.157 in | 4 mm | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | Free Hanging (In-Line) | Brass | 4 | Metal | 0 | Plug Male Pins | Polyetheretherketone (PEEK) | Gold | Shielded | Silver | 120 °C | -40 C | Brass | 7.5 A | Brass Chrome over Nickel |
