224929 Series
5.00mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, 8 Circuits
Manufacturer: Molex
Catalog
5.00mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, 8 Circuits
Beta
⌘K
5.00mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, 8 Circuits
5.00mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, 8 Circuits
5.00mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, 8 Circuits
| Part | Current | Positions Per Level | Wire Termination | Features | Mating Orientation | Mating Orientation | Number of Levels | Voltage | Pitch | Pitch | Color | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 20 A | 9 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |

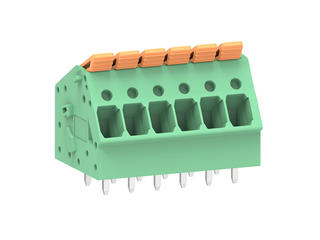

 Molex | 20 A | 6 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |
 Molex | 20 A | 3 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |
 Molex | 20 A | 2 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |

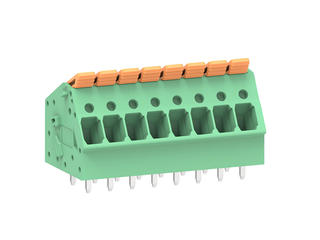

 Molex | 20 A | 8 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |
 Molex | 20 A | 10 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |

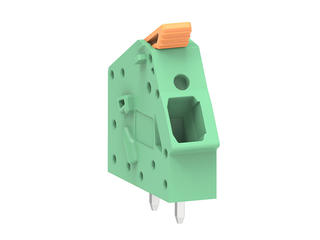

 Molex | 20 A | 1 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | Green | Through Hole | 24 AWG | 12 AWG | ||

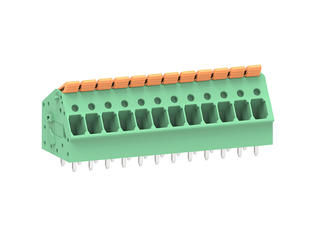

 Molex | 20 A | 12 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |

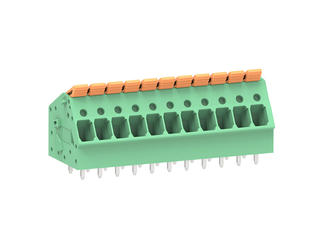

 Molex | 20 A | 11 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |
 Molex | 20 A | 5 | Leg Spring Push-In Spring | Lever Actuated | 30 ° | 150 ° | 1 | 320 V | 0.197 in | 5 mm | Green | Through Hole | 24 AWG | 12 AWG |
