3RT2535 Series
Manufacturer: Siemens
Beta
⌘K

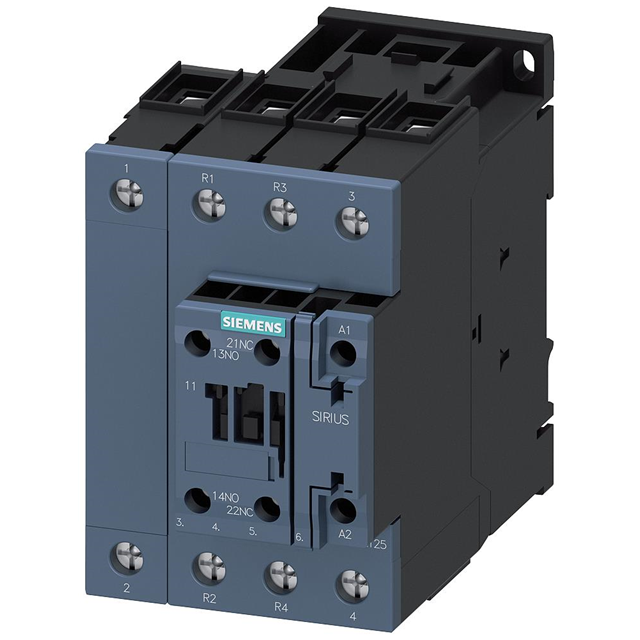

CONTACTOR S2 55A 4P 240VAC 1NO/1
| Part | Operate Time | Release Time | Coil Power | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Operate Voltage | Features | Switching Voltage [Max] | Contact Rating (Current) | Contact Form | Coil Voltage [Min] | Coil Voltage [Max] | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 80 ms | 18 ms | 190 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 240 VAC/DC | 192 VAC | Auxiliary Contacts | 690 VAC | 60 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||
 Siemens | 100 ms | 55 ms | 110 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | Auxiliary Contacts | 690 VAC | 40 A | 4PST-2NO/2NC (2 Form A 2 Form B) | 20 VAC/DC | 33 VAC/DC | |||
Siemens | 100 ms | 55 ms | 110 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | Auxiliary Contacts | 690 VAC | 60 A | 4PST-2NO/2NC (2 Form A 2 Form B) | 175 VAC/DC | 280 VAC/DC | |||
Siemens | 80 ms | 18 ms | 190 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 24 VAC | 19.2 VAC | Auxiliary Contacts | 690 VAC | 60 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||
Siemens | 80 ms | 18 ms | 190 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 42 VAC/DC | 33.6 VAC | Auxiliary Contacts | 690 VAC | 40 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||
Siemens | 80 ms | 18 ms | 188 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 120 VAC | 96 VAC | Auxiliary Contacts | 690 VAC | 60 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||
Siemens | 100 ms | 55 ms | 110 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | Auxiliary Contacts | 690 VAC | 40 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||||
Siemens | 80 ms | 18 ms | 190 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 24 VAC | 19.2 VAC | Auxiliary Contacts | 690 VAC | 40 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||
Siemens | 80 ms | 18 ms | 190 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 110 VAC/DC | 88 VAC/DC | Auxiliary Contacts | 690 VAC | 55 A | 4PST-2NO/2NC (2 Form A 2 Form B) | |||
Siemens | 22 ms | 18 ms | 188 VA | Chassis Mount DIN Rail | Screw Terminal | 70 °C | -40 C | 230 VAC | 195.5 VAC | Auxiliary Contacts | 40 A | 4PST-2NO/2NC (2 Form A 2 Form B) | 400 VAC |
