L177DE09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

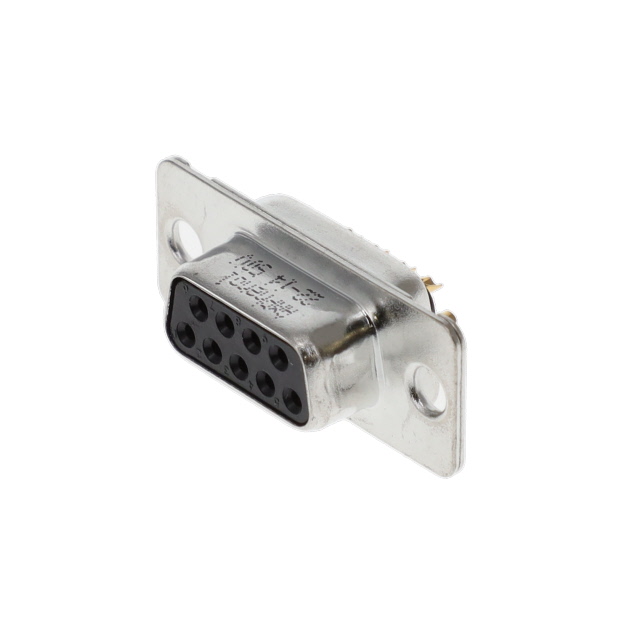

CONN D-SUB RCPT 9POS SCREW
| Part | Color | Wire Gauge | Dielectric Material | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Material Flammability Rating | Connector Style | Number of Rows [custom] | Termination | Mounting Type | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | 18 AWG | Thermoplastic Glass Filled | 300 VDC | Bronze | -55 C | 85 °C | Gold | UL94 V-0 | D-Sub | 2 | Screw | Free Hanging (In-Line) | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.38 µm | 15 µin | Signal | Receptacle Female Sockets |
Amphenol ICC (Commercial Products) | Black | 18 AWG | Thermoplastic Glass Filled | 300 VDC | Bronze | -55 C | 85 °C | Gold | UL94 V-0 | D-Sub | 2 | Screw | Free Hanging (In-Line) | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.38 µm | 15 µin | Signal | Receptacle Female Sockets |
 Amphenol ICC (Commercial Products) | Black | Thermoplastic Glass Filled | 300 VDC | Brass | -55 C | 125 °C | Gold | UL94 V-0 | D-Sub | 2 | Free Hanging (In-Line) | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.51 µm | 20 µin | Signal | Receptacle Female Sockets | ||
Amphenol ICC (Commercial Products) | Black | Thermoplastic Glass Filled | 300 VDC | Brass | -55 C | 125 °C | Gold | UL94 V-0 | D-Sub | 2 | Wire Wrap | Panel Mount Through Hole | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.51 µm | 20 µin | Signal | Receptacle Female Sockets | |
Amphenol ICC (Commercial Products) | Black | Thermoplastic Glass Filled | 300 VDC | Brass | -55 C | 125 °C | Gold | UL94 V-0 | D-Sub | 2 | Solder | Through Hole | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.51 µm | 20 µin | Signal | Receptacle Female Sockets | |
Amphenol ICC (Commercial Products) | Black | Thermoplastic Glass Filled | 300 VDC | Brass | -55 C | 125 °C | Gold | UL94 V-0 | D-Sub | 2 | Solder | Through Hole | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.51 µm | 20 µin | Signal | Receptacle Female Sockets | |
 Amphenol ICC (Commercial Products) | Black | 18 AWG | Thermoplastic Glass Filled | 300 VDC | Brass | -55 C | 125 °C | Gold | UL94 V-0 | D-Sub | 2 | Screw | Free Hanging (In-Line) | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.38 µm | 15 µin | Signal | Receptacle Female Sockets |
Amphenol ICC (Commercial Products) | Black | 18 AWG | Thermoplastic Glass Filled | 300 VDC | Bronze | -55 C | 85 °C | Gold | UL94 V-0 | D-Sub | 2 | Screw | Free Hanging (In-Line) | 9 | 1 | DE E | 7.5 A | Housing/Shell (Unthreaded) | 0.38 µm | 15 µin | Signal | Receptacle Female Sockets |
