JACK-L Series
Manufacturer: GlobTek, Inc.
Beta
⌘K
CONN PWR JACK 2.50MMX5.50MM SLDR
| Part | Contact Material | Contact Material - Plating | Housing Material | Body Color | Current Rating (Amps) | Connector Type | Mounting Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Material Flammability Rating | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Industry Recognized Mating Diameter [custom] | Shielding | Voltage - Rated | Termination | Internal Switch(s) | Gender | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Internal Switch(s) | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Brass | Gold | Iron | Silver | 10 A | Jack | Board Cutout Right Angle Through Hole | 0.098 in | 2.5 mm | UL94 V-0 | 0.217 in | 2.5 mm | 5.5 mm | 0.098 in | Shielded | 50 VDC | Kinked Pin Solder | Single Switch Normally Closed | Male | 5 | 4 | |||||

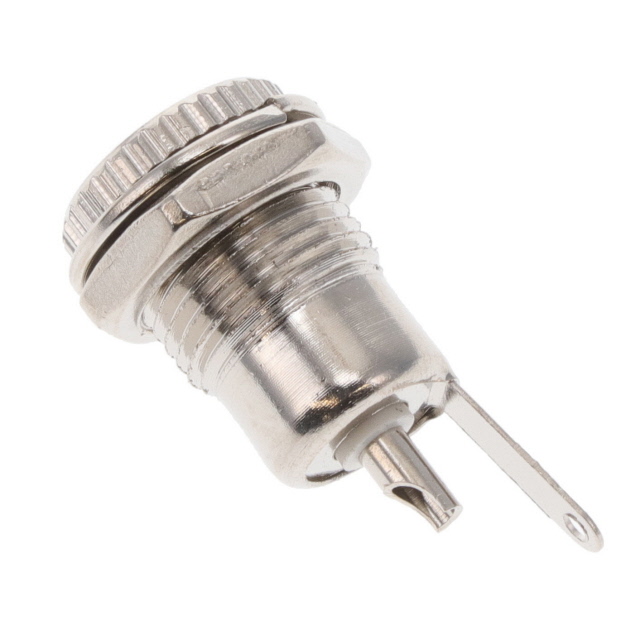

 GlobTek, Inc. | Brass | Gold | Brass | Silver | 8 A | Jack | Panel Mount | 0.098 in 0.224 in | 2.5 mm 5.7 mm | UL94 V-0 | 0.217 in | 2.5 mm | 5.5 mm | 0.098 in | 50 VDC | Solder Cup Solder Eyelet | Male | 2 | 2 | 85 °C | -25 °C | Mounting Hardware | Bulkhead - Rear Side Nut |
