UF3C065080 Series

Manufacturer: Qorvo

Catalog

MOSFET N-CH 650V 31A TO220-3

Part	Package / Case	Rds On (Max) @ Id, Vgs	FET Type	Vgs(th) (Max) @ Id	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Mounting Type	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max)	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]
Qorvo UF3C065080T3S	TO-220-3	100 mOhm	N-Channel	6 V	TO-220-3	31 A	1500 pF	650 V	Through Hole	25 V	175 °C	-55 °C	51 nC	12 V	190 W

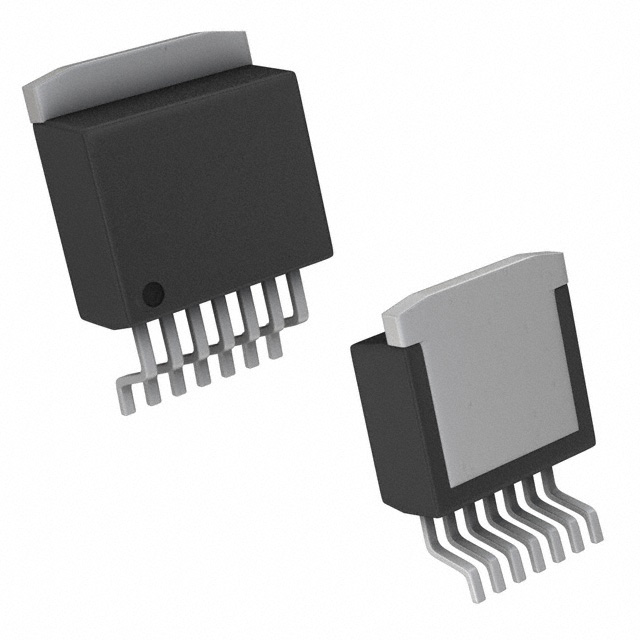

Qorvo UF3C065080B7S	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	105 mOhm	N-Channel	6 V	D2PAK-7	27 A		650 V	Surface Mount	25 V	175 °C	-55 °C	23 nC		136.4 W	SiCFET (Cascode SiCJFET)	760 pF
Qorvo UF3C065080K3S	TO-247-3	100 mOhm	N-Channel	6 V	TO-247-3	31 A	1500 pF	650 V	Through Hole	25 V	175 °C	-55 °C	51 nC	12 V	190 W
