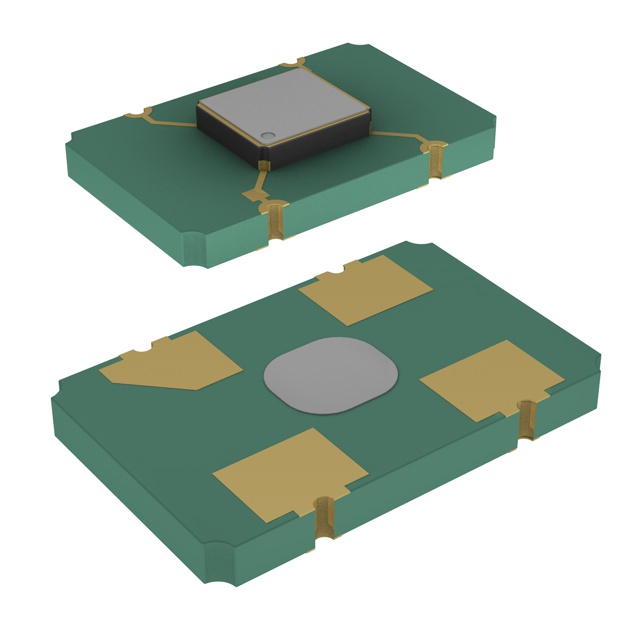

KC5032K Series

Catalog

STANDARD CLOCK OSCILLATORS 33.3333MHZ CLOCK OSC IL CMOS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output	Function	Current - Supply (Max) [Max]	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Base Resonator [custom]	Type	Package / Case	Frequency Stability	Mounting Type	Current - Supply (Disable) (Max)
KYOCERA AVX KC5032K33.3333C10E00	70 °C	-10 °C	CMOS	Standby (Power Down)	5 mA	33.3333 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount
KYOCERA AVX KC5032K10.0000C1GE00	85 °C	-40 C	CMOS	Standby (Power Down)	6 mA	10 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount	5 µA
KYOCERA AVX KC5032K12.0000C10E00	70 °C	-10 °C	CMOS	Standby (Power Down)	3.5 mA	12 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount
KYOCERA AVX KC5032K66.6667C1GE00	85 °C	-40 C	CMOS	Standby (Power Down)	18 mA	66.6667 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount	5 µA
KYOCERA AVX KC5032K32.0000C1GE00	85 °C	-40 C	CMOS	Standby (Power Down)	5 mA	32 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount
KYOCERA AVX KC5032K20.0000C1GE00	85 °C	-40 C	CMOS	Standby (Power Down)	3.5 mA	20 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount
KYOCERA AVX KC5032K13.5600C1GE00	85 °C	-40 C	CMOS	Standby (Power Down)	6 mA	13.56 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	3.63 V	1.6 V	Crystal	XO (Standard)	4-SMD No Lead	50 ppm	Surface Mount	5 µA
