86130141 Series

Catalog

QKE CONN SOCKET IDC

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Features	Contact Shape	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Contact Material	Insulation Material	Contact Finish - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Contact Type	Number of Rows	Number of Positions Loaded	Connector Type	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating
Amphenol ICC (FCI) 86130141014365E1LF	2.54 mm	0.1 in	Board to Cable/Wire	Keying Slot	Circular	Shrouded - 4 Wall	-55 °C	125 °C	14.15 mm	0.557 in	Solder	Copper Alloy	Polybutylene Terephthalate (PBT)	Tin	14	6.1 mm	0.24 in	Push-Pull	0.1 in	2.54 mm	4.35 mm	0.171 in	UL94 V-0	Gray	Gold or Gold-Palladium	Male Pin	2	All	Header	Through Hole

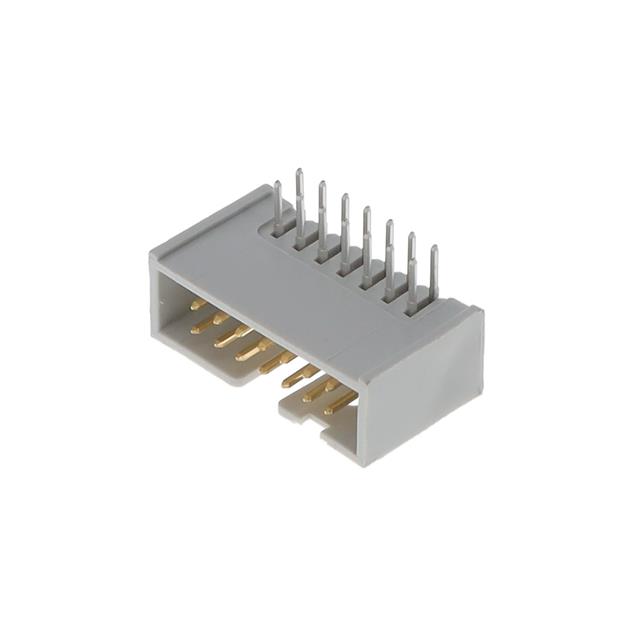

Amphenol ICC (FCI) 86130141013345E1LF	2.54 mm	0.1 in	Board to Cable/Wire	Keying Slot	Circular	Shrouded - 4 Wall	-55 °C	125 °C	8.75 mm	0.344 in	Solder	Copper Alloy	Polybutylene Terephthalate (PBT)	Tin	14	6.1 mm	0.24 in	Push-Pull	0.1 in	2.54 mm			UL94 V-0	Gray	Gold or Gold-Palladium	Male Pin	2	All	Header	Through Hole Right Angle	0.165 in	4.19 mm	250 VDC

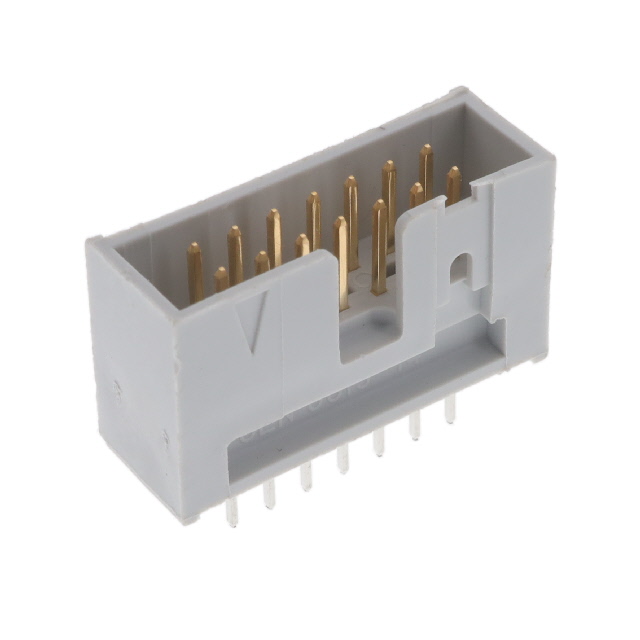

Amphenol ICC (FCI) 86130141014345E1LF	2.54 mm	0.1 in	Board to Cable/Wire	Keying Slot	Circular	Shrouded - 4 Wall	-55 °C	125 °C	14.15 mm	0.557 in	Solder	Copper Alloy	Polybutylene Terephthalate (PBT)	Tin	14	6.1 mm	0.24 in	Push-Pull	0.1 in	2.54 mm	4.35 mm	0.171 in	UL94 V-0	Gray	Gold or Gold-Palladium	Male Pin	2	All	Header	Through Hole			250 VDC
