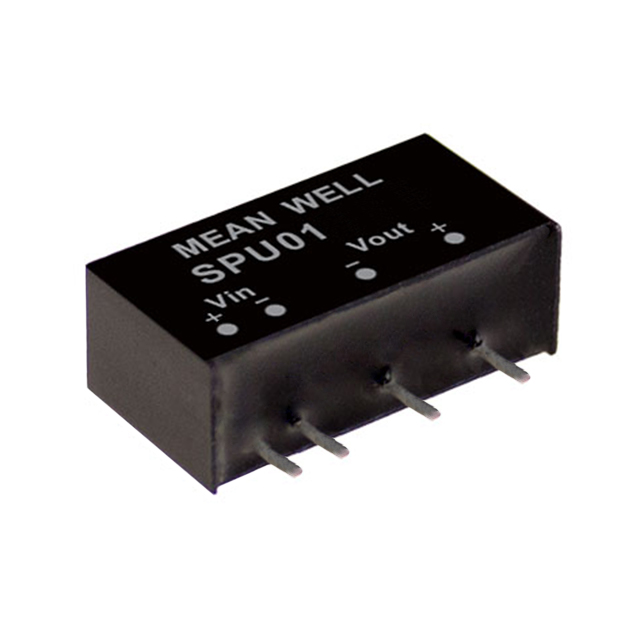

SPU01 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 1W
| Part | Applications | Voltage - Output 1 | Efficiency | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Isolation | Number of Outputs | Type | Voltage - Input (Max) [Max] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 15 V | 84 % | Through Hole | 67 mA | 10.8 V | 1.5 kV | 1 | Isolated Module | 13.2 V | SCP | 90 °C | -40 °C | 0.4 " | 6.1 mm | 0.24 " | 10.2 mm | 0.77 in | 19.5 mm | 6-SIP Module 5 Leads |
MEAN WELL USA Inc. | ITE (Commercial) | 12 V | 81 % | Through Hole | 84 mA | 21.6 V | 1.5 kV | 1 | Isolated Module | 26.4 V | SCP | 90 °C | -40 °C | 0.4 " | 7.2 mm | 0.28 in | 10.2 mm | 0.77 in | 19.5 mm | 6-SIP Module 5 Leads |
