837-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Color	Card Type	Termination	Read Out	Flange Feature	Gender	Contact Type	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Features

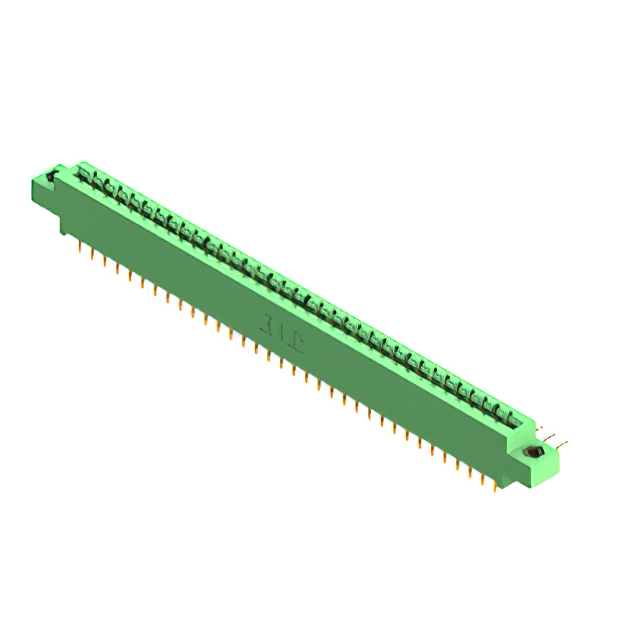

EDAC Inc. 837-068-559-807	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Right Angle Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual	M3 Threaded Insert Top Mount Opening	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in
EDAC Inc. 837-068-559-212	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Right Angle Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual	Flush Mount Side Opening Unthreaded	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	0.128 "	3.25 mm
EDAC Inc. 837-068-521-804	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual		Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	0.156 "	3.96 mm
EDAC Inc. 837-068-559-204	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Right Angle Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual	Flush Mount Top Opening Unthreaded	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	0.156 "	3.96 mm
EDAC Inc. 837-068-500-804	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder Eyelet(s)	Dual		Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	0.156 "	3.96 mm
EDAC Inc. 837-068-555-201	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual		Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in			Card Extender

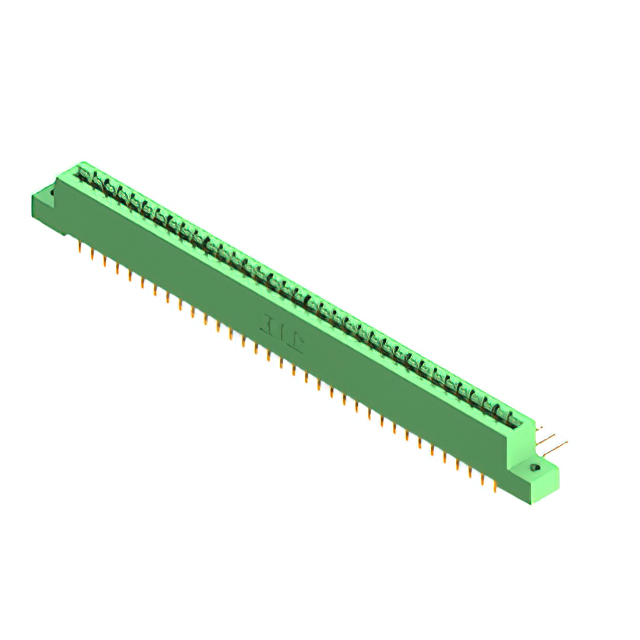

EDAC Inc. 837-068-559-202	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Right Angle Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual	Flush Mount Top Opening Unthreaded	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	0.128 "	3.25 mm
EDAC Inc. 837-068-556-812	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual	Side Mount Opening Unthreaded	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	0.128 "	3.25 mm	Card Extender
EDAC Inc. 837-068-556-807	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Board Edge Straddle Mount	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	Dual	M3 Threaded Insert Top Mount Opening	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in			Card Extender
EDAC Inc. 837-068-540-808	Diallyl Phthalate (DAP)	2	68 positions	Copper Alloy	Through Hole	125 °C	-40 C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Wire Wrap	Dual	4-40 Threaded Insert Top Mount Opening	Female	Cantilever	34	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in
