NK02 Series

Catalog

TERM BLK 2POS SIDE ENT 7.5MM PCB

Part	Clamp Material - Plating	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Housing Material	Mounting Type	Color	Mating Orientation	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]
Amphenol Anytek NK02A1510000G	Stainless Steel	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	2	Thermoplastic	Through Hole	Green	Horizontal with Board	1	8 AWG	24 AWG	0.295 in	7.5 mm
Amphenol Anytek NK02A0510000G	Stainless Steel	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	2	Thermoplastic	Through Hole	Green	Vertical with Board	1	8 AWG	24 AWG	0.295 in	7.5 mm

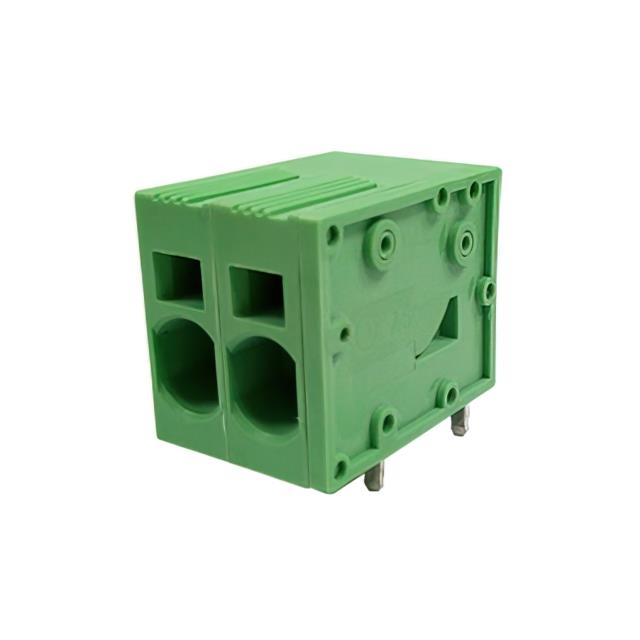

Amphenol Anytek NK02A1500000G	Stainless Steel	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	2	Thermoplastic	Through Hole	Green	Horizontal with Board	1	8 AWG	24 AWG	0.295 in	7.5 mm
