EEG.3B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 24POS GOLD SLDR

Part	Primary Material	Termination	Ingress Protection	Fastening Type	Shell Material	Current Rating (Amps)	Shell Size - Insert	Shielding	Orientation [custom]	Insert Material	Number of Positions	Mounting Feature	Connector Type	Mounting Type	Contact Finish - Mating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Color	Material Flammability Rating	Number of Positions [custom]	Shell Size - Insert [custom]

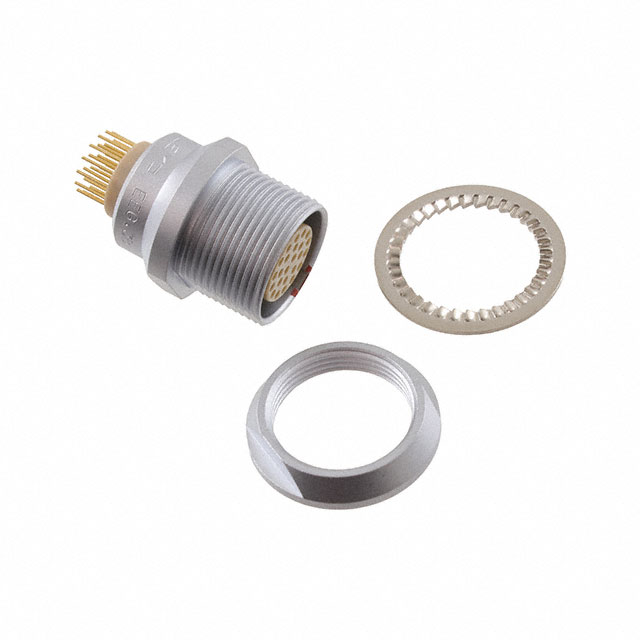

LEMO EEG.3B.324.CLN	Metal	Solder	IP50 - Dust Protected	Push-Pull	Brass	4 A	324	Shielded	G	Polyetheretherketone (PEEK)	24	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount Through Hole	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0
LEMO EEG.3B.846.CYM1	Metal	Crimp	IP50 - Dust Protected	Push-Pull	Brass	10 A	846	Shielded	G	Polyetheretherketone (PEEK)	8	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount	Gold	Chrome	-55 C	250 °C				Silver	UL94 V-0	2
LEMO EEG.3B.318.CLL	Metal		IP50 - Dust Protected	Push-Pull	Brass	7 A	318	Shielded	G	Polyetheretherketone (PEEK)	18	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0
LEMO EEG.3B.308.CLL	Metal		IP50 - Dust Protected	Push-Pull	Brass	13 A	308	Shielded	G	Polyetheretherketone (PEEK)	8	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0
LEMO EEG.3B.318.CYM	Metal	Crimp	IP50 - Dust Protected	Push-Pull	Brass	7 A	318	Shielded	G	Polyetheretherketone (PEEK)	18	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0

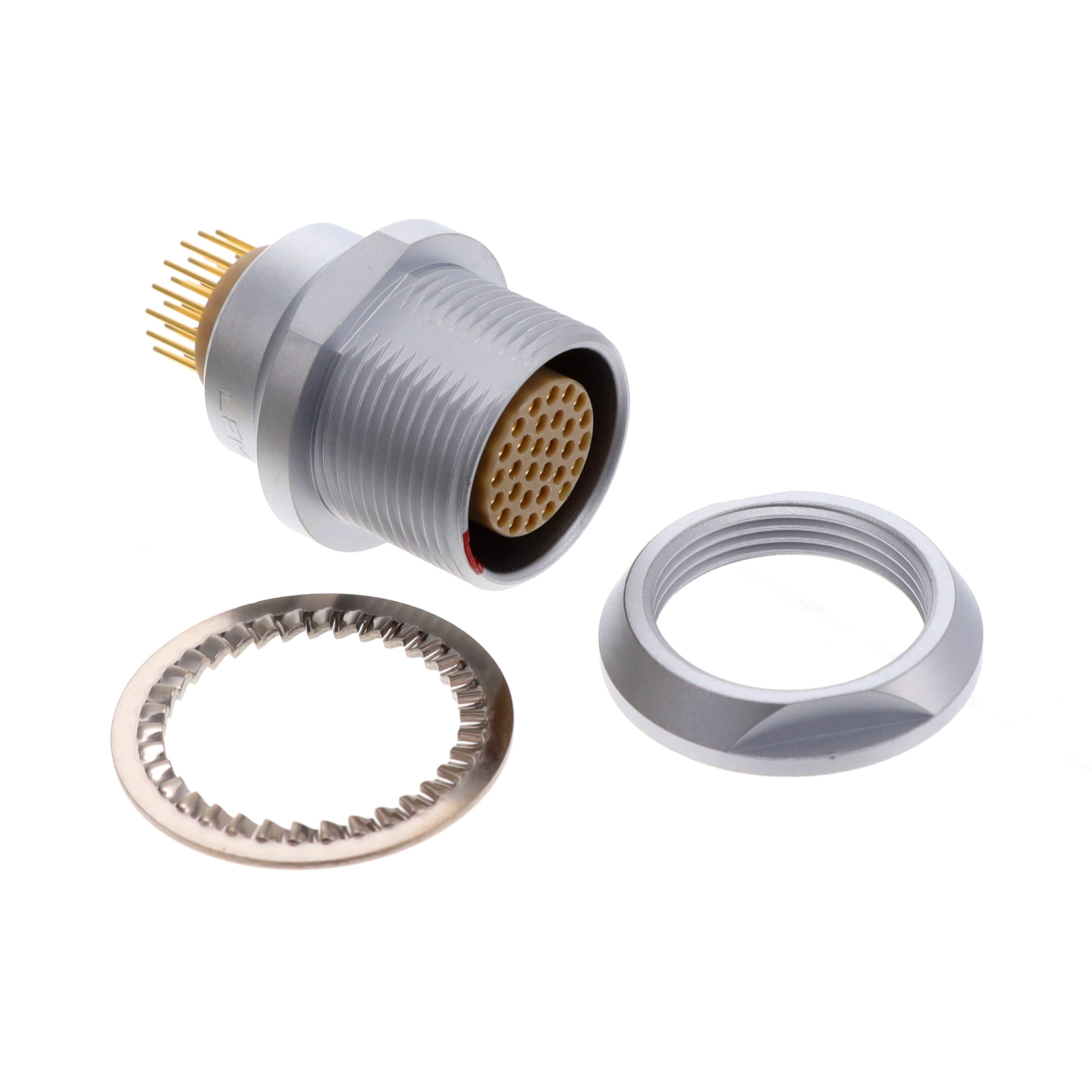

LEMO EEG.3B.330.CLN	Metal	Solder	IP50 - Dust Protected	Push-Pull	Brass	3.5 A	330	Shielded	G	Polyetheretherketone (PEEK)	30	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount Through Hole	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0
LEMO EEG.3B.310.CYM	Metal	Crimp	IP50 - Dust Protected	Push-Pull	Brass	12 Amps	310	Shielded	G	Polyetheretherketone (PEEK)	10	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0
LEMO EEG.3B.809.NLL3	Metal		IP50 - Dust Protected	Push-Pull	Brass	7 A		Shielded	G	Polyetheretherketone (PEEK)	10	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount	Gold	Nickel	-55 C	250 °C				Silver	UL94 V-0
LEMO EEG.3B.314.CLN	Metal	Solder	IP50 - Dust Protected	Push-Pull	Brass	9 A	314	Shielded	G	Polyetheretherketone (PEEK)	14	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount Through Hole	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0
LEMO EEG.3B.316.CLN	Metal	Solder	IP50 - Dust Protected	Push-Pull	Brass	8 A		Shielded	G	Polyetheretherketone (PEEK)	16	Bulkhead - Front Side Nut	Receptacle Female Sockets	Panel Mount Through Hole	Gold	Chrome	-55 C	250 °C	1.5 Ám	59 Áin	Bronze	Silver	UL94 V-0		316
