EN3P15 Series

Catalog

CONN RCPT MALE 15POS GOLD SOLDER

Part	Mounting Type	Termination	Material Flammability Rating	Connector Type	Current Rating (Amps)	Insert Material	Applications	Primary Material	Contact Finish - Mating	Ingress Protection	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Orientation	Contact Material	Voltage Rating	Mounting Feature	Fastening Type	Number of Positions

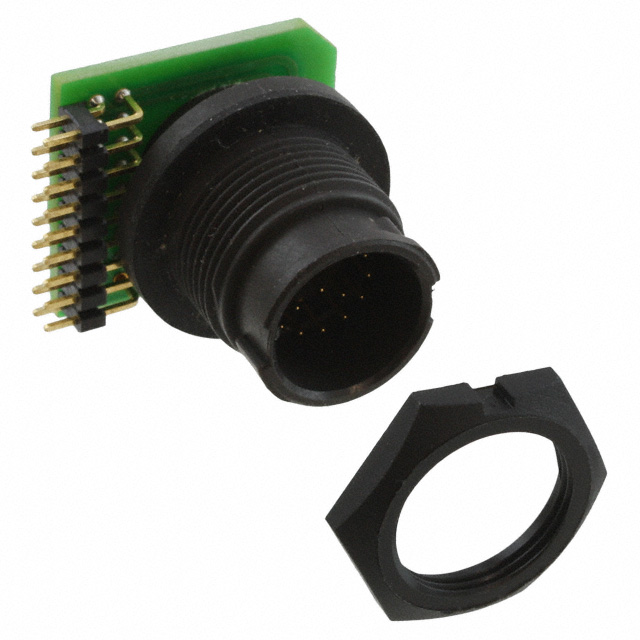

Switchcraft Inc. EN3P15MRAPCBN	Panel Mount Right Angle Through Hole	Circuit Board Solder	UL94 V-0	Male Pins Receptacle	2 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
Switchcraft Inc. EN3P15F26CX		Crimp	UL94 V-0	Receptacle Female Sockets	3 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
Switchcraft Inc. EN3P15M26PX	Panel Mount Through Hole	Solder	UL94 V-0	Male Pins Receptacle	3 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
Switchcraft Inc. EN3P15M26X			UL94 V-0	Male Pins Receptacle	3 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
Switchcraft Inc. EN3P15F26X			UL94 V-0	Receptacle Female Sockets	3 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15

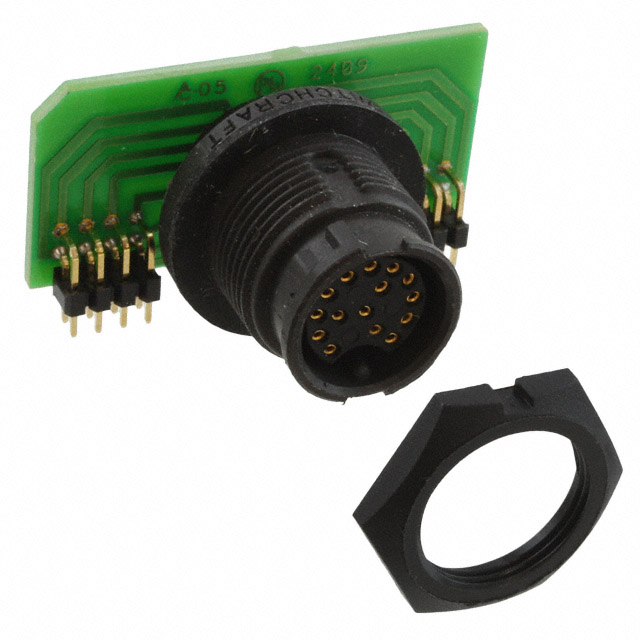

Switchcraft Inc. EN3P15FRAPCBW	Panel Mount Right Angle Through Hole	Circuit Board Solder	UL94 V-0	Receptacle Female Sockets	2 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
Switchcraft Inc. EN3P15F26SX			UL94 V-0	Receptacle Female Sockets	3 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
Switchcraft Inc. EN3P15MRAPCBW	Panel Mount Right Angle Through Hole	Circuit Board Solder	UL94 V-0	Male Pins Receptacle	2 A	Elastomer	General Purpose Instrumentation Marine Medical	Plastic	Gold	IP66/IP68	Black	65 °C	-40 °C	Unshielded	Keyed	Copper Alloy	250 VAC	Bulkhead - Front Side Nut	Bayonet Lock	15
