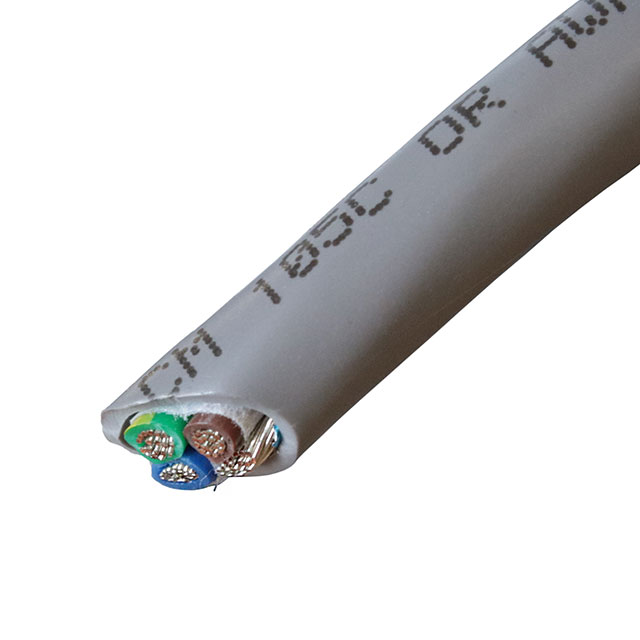

5363/1C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 3COND 16AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Usage | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket Color | Conductor Material | Cable Type | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Insulation | Wire Gauge | Conductor Strand [custom] | Conductor Strand [diameter] | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Foil | 6.81 mm | 0.268 in | 3 | Communication Control | 304.8 m | 1000 ft | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Black | Copper Tinned | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | 16 AWG | 19 | 0.0117 in | ISO 10993 UL Style 2464 | ||
 ALPHA WIRE | Aluminum | 100 % | Foil | 6.81 mm | 0.268 in | 3 | Communication Control | 304.8 m | 1000 ft | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | 16 AWG | 19 | 0.0117 in | ISO 10993 UL Style 2464 | ||
ALPHA WIRE | Aluminum | 100 % | Foil | 6.81 mm | 0.268 in | 3 | Communication Control | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | 16 AWG | 19 | 0.0117 in | ISO 10993 UL Style 2464 | 100 ft | 30.5 m |
