77013 Series

Catalog

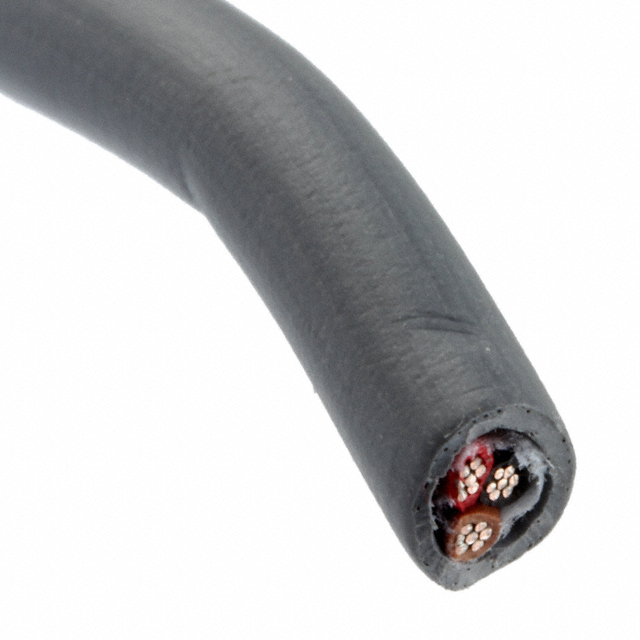

CABLE 3COND 20AWG SLATE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Features	Wire Gauge	Length [x]	Length [x]	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Material	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
ALPHA WIRE 77013 SL005	-50 °C	105 ░C	Polyphenylene Ether Modified (mPPE)	0.193 in	4.9 mm	Slate	3	Biological Compatibility	20 AWG	100 ft	30.5 m	600 V	Multi-Conductor	0.813 mm	0.032 in	Copper Tinned	Polyphenylene Ether Modified (mPPE)	ISO 10993	28 AWG	7
ALPHA WIRE 77013 SL199	-50 °C	105 ░C	Polyphenylene Ether Modified (mPPE)	0.193 in	4.9 mm	Slate	3	Biological Compatibility	20 AWG			600 V	Multi-Conductor	0.813 mm	0.032 in	Copper Tinned	Polyphenylene Ether Modified (mPPE)	ISO 10993	28 AWG	7
ALPHA WIRE 77013 SL001	-50 °C	105 ░C	Polyphenylene Ether Modified (mPPE)	0.193 in	4.9 mm	Slate	3	Biological Compatibility	20 AWG			600 V	Multi-Conductor	0.813 mm	0.032 in	Copper Tinned	Polyphenylene Ether Modified (mPPE)	ISO 10993	28 AWG	7	304.8 m	1000 ft
