1423008 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

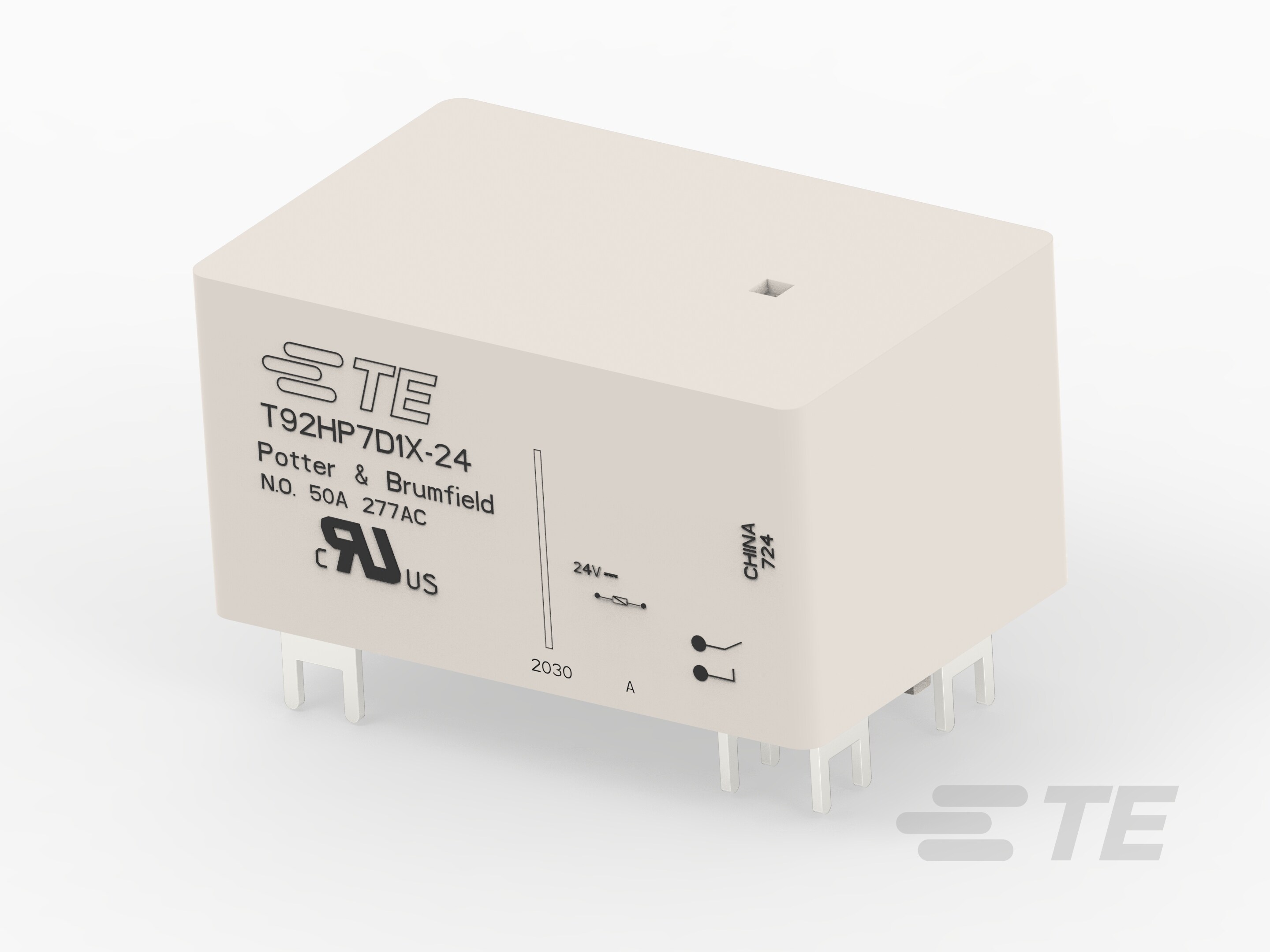

T92HS7D1X-24
| Part | Coil Resistance | Contact Form | Coil Insulation | Coil Type | Termination Style | Contact Material | Seal Rating | Load - Max Switching | Must Release Voltage | Relay Type | Coil Voltage | Mounting Type | Contact Rating (Current) | Operate Time | Switching Voltage [Max] | Must Operate Voltage | Coil Current | Release Time | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 350 Ohms | DPST-NO (2 Form A) | Class F | Non Latching | PC Pin | Silver Alloy Cadmium Free | Sealed - Fully | 30000 VA | 2.4 VDC | General Purpose | 24 VDC | Through Hole | 50 A | 25 ms | 600 VAC | 18 VDC | 68.6 mA | 25 ms | -55 C | 85 °C |
TE Connectivity AMP Connectors |
