H2185 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN PIN 1.75MM DIA GOLD 21.65MM
| Part | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Board Thickness | Board Thickness | Contact Finish | Terminal Style | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Material | Terminal Type | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

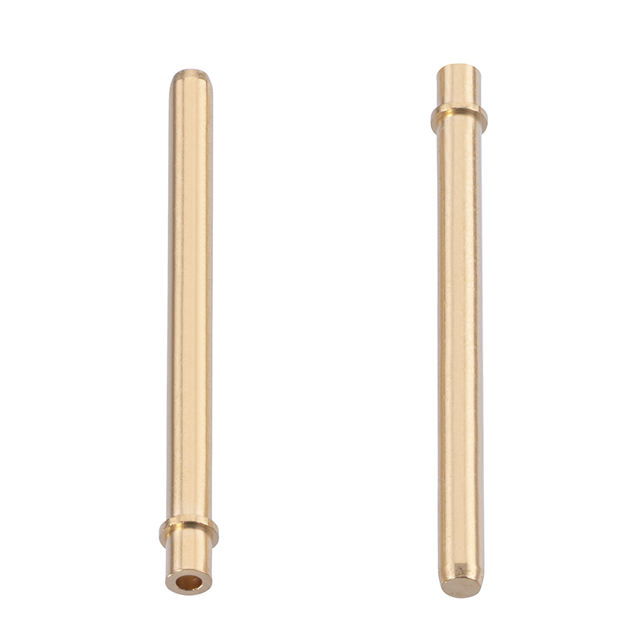

 Harwin Inc. | Swage | 0.852 in | 21.65 mm | 0.063 in | 1.6 mm | Gold | Single End | 0.07 " | 1.78 mm | Brass | PC Pin | 0.945 " | 24 mm | 0.089 " | 2.25 mm | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 1.95 mm | 0.077 " | 0.07 in | 1.78 mm | Non-Insulated | Through Hole |

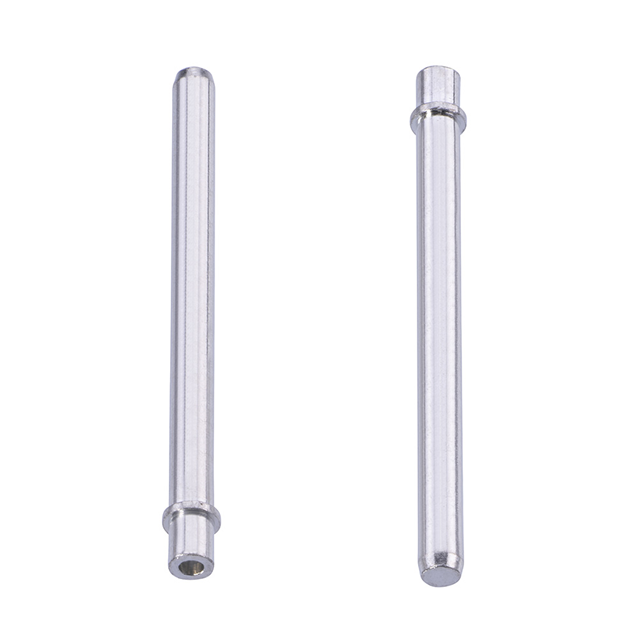

 Harwin Inc. | Swage | 0.852 in | 21.65 mm | 0.063 in | 1.6 mm | Tin | Single End | 0.07 " | 1.78 mm | Brass | PC Pin | 0.945 " | 24 mm | 0.089 " | 2.25 mm | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 1.95 mm | 0.077 " | 0.07 in | 1.78 mm | Non-Insulated | Through Hole |
