P231 Series

Catalog

POT 25K OHM 1/4W PLASTIC LOG

Part	Size - Body [diameter]	Size - Body [diameter]	Rotation	Actuator Type	Tolerance	Resistive Material	Mounting Type	Termination Style	Number of Gangs	Taper	Power (Watts)	Power (Watts)	Number of Turns	Bushing Thread	Adjustment Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Built in Switch	Resistance (Ohms) [custom]	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)	Resistance (Ohms)
TT Electronics/BI P231-QC20AR25K	0.945 "	24 mm	300 ░	Knurled and Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Logarithmic	0.25 W	0.25 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None	25 kOhms	0.787 in	20 mm
TT Electronics/BI P231-EC30BR10K	0.945 "	24 mm	300 ░	Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Linear	0.5 W	0.5 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None		1.181 in	30 mm	10k
TT Electronics/BI P231-EC30BR25K	0.945 "	24 mm	300 ░	Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Linear	0.5 W	0.5 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None	25 kOhms	1.181 in	30 mm
TT Electronics/BI P231-EA15AR50K
TT Electronics/BI P231-QC25AR50K	0.945 "	24 mm	300 ░	Knurled and Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Logarithmic	0.25 W	0.25 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None	50 kOhms	0.984 in	25 mm

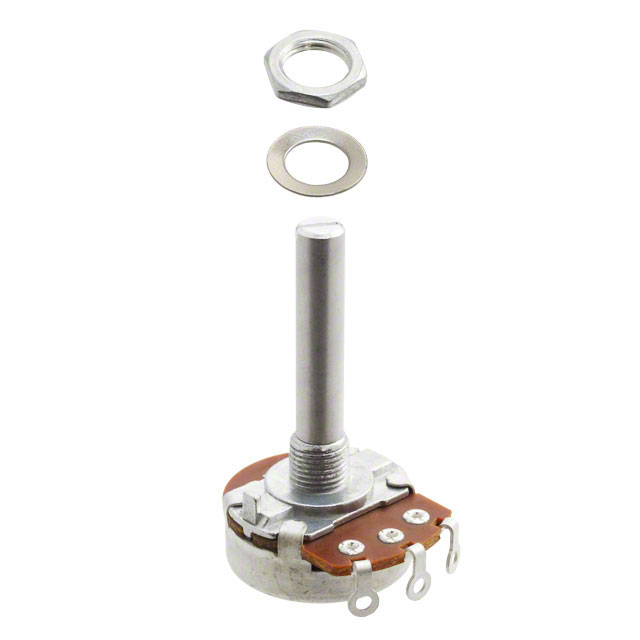

TT Electronics/BI P231-EC35BR5K	0.945 "	24 mm	300 ░	Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Linear	0.5 W	0.5 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None		1.378 in	35 mm		5 kOhms

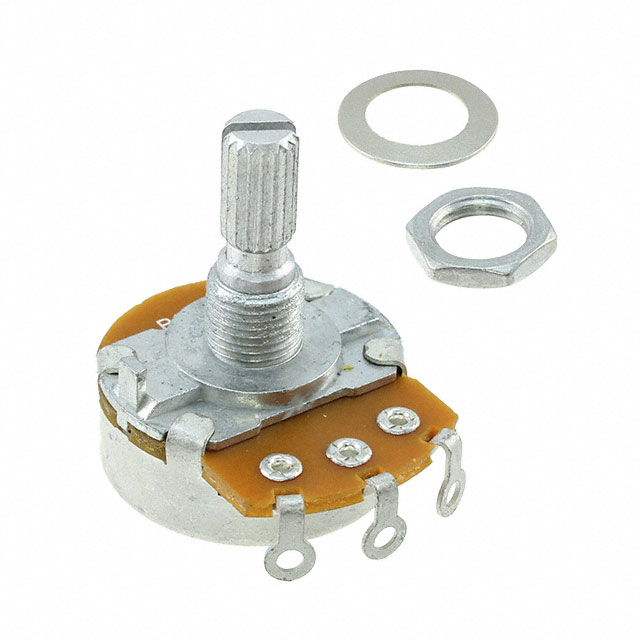

TT Electronics/BI P231-QC20BR100K	0.945 "	24 mm	300 ░	Knurled and Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Linear	0.5 W	0.5 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None		0.787 in	20 mm	100k
TT Electronics/BI P231-EC15AR10K	0.945 "	24 mm	300 ░	Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Logarithmic	0.25 W	0.25 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None		0.591 in	15 mm	10k
TT Electronics/BI P231-FA20BR5K	0.945 "	24 mm	300 ░	Flatted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Linear	0.5 W	0.5 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None		0.787 in	20 mm		5 kOhms
TT Electronics/BI P231-QC20AR20K	0.945 "	24 mm	300 ░	Knurled and Slotted	20 %	Conductive Plastic	Panel Mount	Solder Lug	1	Logarithmic	0.25 W	0.25 W	1	M8 x 0.75	User Defined	6 mm	0.236 in	None		0.787 in	20 mm		20 kOhms
