208403 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

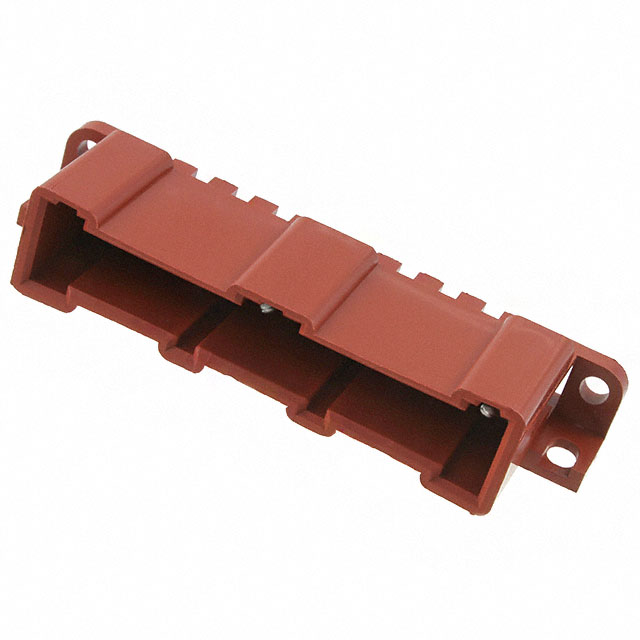

CONN HEADER R/A 10POS 5.08MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Termination | Contact Type | Number of Positions Loaded | Voltage Rating | Shrouding | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Features | Contact Finish - Post | Number of Positions | Style | Insulation Material | Material Flammability Rating | Fastening Type | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Rows | Applications | Current Rating (Amps) | Contact Finish - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 130 °C | -55 °C | Red | Solder | Male Pin | All | 600 V | Shrouded - 4 Wall | Header | 0.12 in | 3.05 mm | Through Hole Right Angle | Mounting Flange | Tin-Lead | 10 | Board to Board Cable | Nylon Polyamide (PA) | UL94 V-0 | Latch Holder | Copper Alloy | 5.08 mm | 0.2 in | 0.55 in | 13.97 mm | 1 | Automotive General Purpose Industrial | 7.5 A | Tin-Lead | Circular |
TE Connectivity Raychem Cable Protection | 130 °C | -55 °C | Red | Solder | Male Pin | All | 600 V | Shrouded - 4 Wall | Header | 0.12 in | 3.05 mm | Through Hole Right Angle | Mounting Flange | Tin-Lead | 10 | Board to Board Cable | Nylon Polyamide (PA) | UL94 V-0 | Latch Holder | Copper Alloy | 5.08 mm | 0.2 in | 0.55 in | 13.97 mm | 1 | Automotive General Purpose Industrial | 7.5 A | Tin-Lead | Circular |
