1825256 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

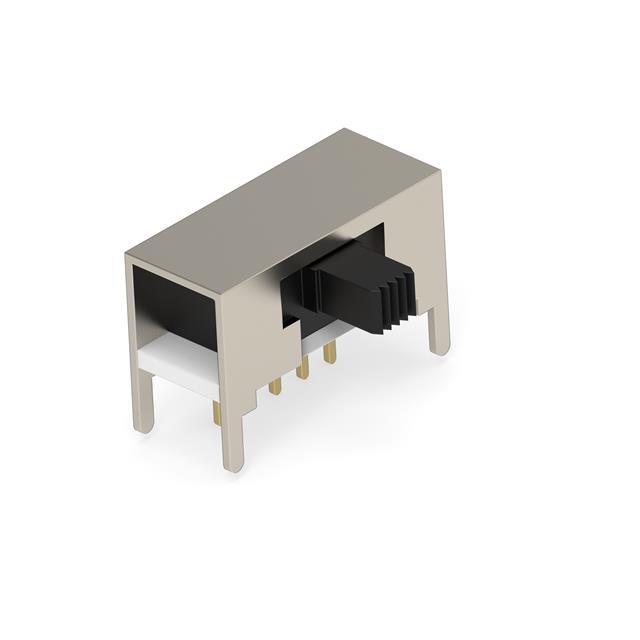

SWITCH SLIDE SP3T 300MA 125V
| Part | Voltage Rating - AC | Contact Finish | Operating Force | Circuit | Actuator Material | Contact Timing | Features | Mounting Type | Switch Function | Actuator Length [x] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Contact Material | Electrical Life | Switch Travel | Current Rating (Amps) | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 125 V | Silver | 600 gf | SP3T | Polyoxymethylene (Acetal) (POM) | Shorting | Epoxy Sealed Terminals | Through Hole Right Angle | On-On-On | 4.5 mm | PC Pin | 85 °C | -20 C | Standard | Copper Alloy | 15000 Cycles | 2 mm | 300 mA | 15000 Cycles |
