1393807 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

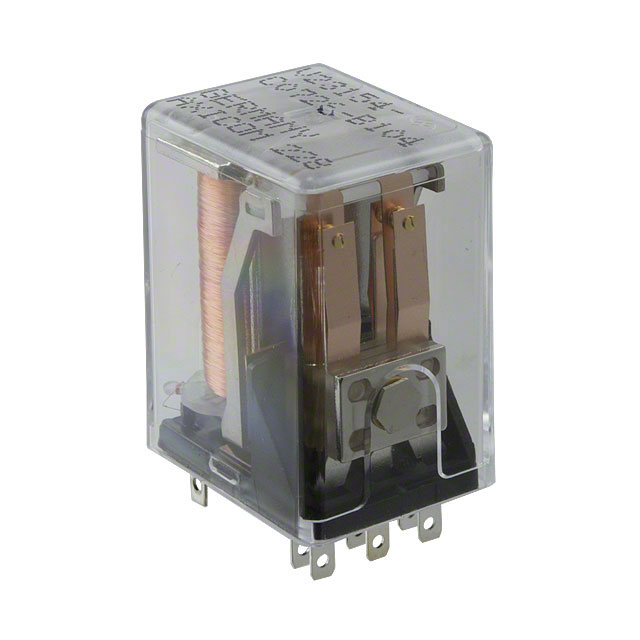

RELAY GEN PURPOSE 4PDT 2A 25V
| Part | Coil Resistance | Contact Rating (Current) | Contact Material | Termination Style | Load - Max Switching | Contact Form | Mounting Type | Must Operate Voltage | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Coil Current | Relay Type | Switching Voltage [Max] | Release Time | Coil Type | Contact Material [custom] | Contact Material [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 730 Ohms | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | 4PDT (4 Form C) | Socketable | 20.8 VDC | 25 VDC | 70 °C | -40 C | 7.5 ms | 34.2 mA | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | ||
 TE Connectivity AMP Connectors | 700 Ohms | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | 4PDT (4 Form C) | Socketable | 15 VDC | 24 VDC | 70 °C | -40 C | 7.5 ms | 34.3 mA | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | ||
 TE Connectivity AMP Connectors | 3.2 kOhms | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | DPDT (2 Form C) | Socketable | 23 VDC | 48 VDC | 70 °C | -40 C | 7.5 ms | 0.015 A | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | ||
TE Connectivity AMP Connectors | 700 Ohms | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | Socketable | 24 VDC | 70 °C | -40 C | 7.5 ms | 34.3 mA | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | ||||
TE Connectivity AMP Connectors | 15 kOhms | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | DPDT (2 Form C) | Socketable | 49 VDC | 110 VDC | 70 °C | -40 C | 7.5 ms | 7.3 mA | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | ||
TE Connectivity AMP Connectors | 390 Ohms | 2 A | Gold (Au) Silver (Ag) | Plug In | 4PDT (4 Form C) | Socketable | 15.2 VDC | 16 VDC | 70 °C | -40 C | 7.5 ms | 41 mA | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | |||
TE Connectivity AMP Connectors | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | 4PDT (4 Form C) | Socketable | 70 °C | -40 C | 7.5 ms | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | ||||||
TE Connectivity AMP Connectors | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | Socketable | 70 °C | -40 C | 7.5 ms | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching | |||||||
TE Connectivity AMP Connectors | 3.2 kOhms | 200 mA | Plug In | DPDT (2 Form C) | Socketable | 23 VDC | 48 VDC | 70 °C | -40 C | 7.5 ms | 0.015 A | General Purpose | 30 VAC 36 VDC | 3 ms | Non Latching | Gold | Au | ||
TE Connectivity AMP Connectors | 3.2 kOhms | 2 A | Gold (Au) Silver (Ag) | Plug In | 250 VA 300 W | DPDT (2 Form C) | Socketable | 30 VDC | 48 VDC | 70 °C | -40 C | 7.5 ms | 0.015 A | General Purpose | 125 VAC 150 VDC | 3 ms | Non Latching |
