CC1310 Series

SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz wireless MCU with 128kB Flash

Catalog

SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz wireless MCU with 128kB Flash

Part	Type	Supplied Contents	For Use With/Related Products	Modulation	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Sensitivity	Current - Transmitting [Min]	Current - Transmitting [Max]	Supplier Device Package	Current - Receiving	Mounting Type	Frequency [Min]	Frequency [Max]	Data Rate (Max)	Package / Case	GPIO	Memory Size [custom]	Memory Size [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Family/Standard	Current - Transmitting	Memory Size

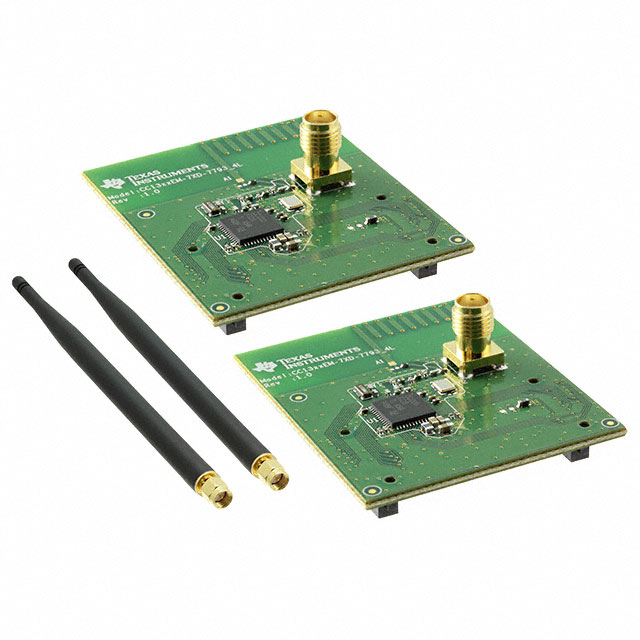

Texas Instruments CC1310EMK-7XD-7793	Transceiver	Board(s)	CC1310
Texas Instruments CC1310F32RSMR	TxRx + MCU			DSSS GFSK	I2C I2S JTAG SPI UART	85 °C	-40 °C	14 dBm	-124 dBm	12.9 mA	22.6 mA	32-VQFN (4x4)	5.5 mA	Surface Mount	300 MHz	930 MHz	50 kbps	32-VFQFN Exposed Pad	10	32 kB	16 kB	1.8 V	3.8 V	General ISM < 1GHz
Texas Instruments CC1310F32RHBT	TxRx + MCU				I2C I2S SPI UART	85 °C	-40 °C	10 dBm	-124 dBm			32-VQFN (5x5)	5.4 mA	Surface Mount	287 MHz 359 MHz 718 MHz	1.05 GHz 351 MHz 527 MHz	50 kbps	32-VFQFN Exposed Pad	15	32 kB	16 kB	1.8 V	3.8 V	802.15.4 General ISM < 1GHz	13.5 mA
Texas Instruments CC1310F64RSMT	TxRx + MCU				I2C I2S SPI UART	85 °C	-40 °C	10 dBm	-124 dBm			32-VQFN (4x4)	5.4 mA	Surface Mount			50 kbps	32-VFQFN Exposed Pad	10			1.8 V	3.8 V	802.15.4 General ISM < 1GHz	13.5 mA	16 kB 64 kB
Texas Instruments CC1310F64RSMR	TxRx + MCU			DSSS GFSK	I2C I2S JTAG SPI UART	85 °C	-40 °C	14 dBm	-124 dBm	12.9 mA	22.6 mA	32-VQFN (4x4)	5.5 mA	Surface Mount	300 MHz	930 MHz	50 kbps	32-VFQFN Exposed Pad	10			1.8 V	3.8 V	General ISM < 1GHz		16 kB 64 kB
Texas Instruments CC1310F64RHBR	TxRx + MCU			DSSS GFSK	I2C I2S JTAG SPI UART	85 °C	-40 °C	14 dBm	-124 dBm	12.9 mA	22.6 mA	32-VQFN (5x5)	5.5 mA	Surface Mount	300 MHz	930 MHz	50 kbps	32-VFQFN Exposed Pad	15			1.8 V	3.8 V	General ISM < 1GHz		16 kB 64 kB
Texas Instruments CC1310F128RSMT	TxRx + MCU			GFSK	I2C I2S SPI UART	85 °C	-40 °C	12 dBm	-110 dBm			32-VQFN (4x4)	5.5 mA	Surface Mount	300 MHz	930 MHz	50 kbps	32-VFQFN Exposed Pad	10			1.8 V	3.8 V	General ISM < 1GHz	12.9 mA	28 kB 128 kB
Texas Instruments CC1310F64RHBT	TxRx + MCU			DSSS GFSK	I2C I2S JTAG SPI UART	85 °C	-40 °C	14 dBm	-124 dBm	12.9 mA	22.6 mA	32-VQFN (5x5)	5.5 mA	Surface Mount	300 MHz	930 MHz	50 kbps	32-VFQFN Exposed Pad	15			1.8 V	3.8 V	General ISM < 1GHz		16 kB 64 kB
Texas Instruments CC1310F32RSMT	TxRx + MCU				I2C I2S SPI UART	85 °C	-40 °C	10 dBm	-124 dBm			32-VQFN (4x4)	5.4 mA	Surface Mount	287 MHz 359 MHz 718 MHz	1.05 GHz 351 MHz 527 MHz	50 kbps	32-VFQFN Exposed Pad	10	32 kB	16 kB	1.8 V	3.8 V	802.15.4 General ISM < 1GHz	13.5 mA
Texas Instruments CC1310F64RGZT	TxRx + MCU			DSSS GFSK	I2C I2S JTAG SPI UART	85 °C	-40 °C	14 dBm	-124 dBm	12.9 mA	22.6 mA	48-VQFN (7x7)	5.5 mA	Surface Mount	300 MHz	930 MHz	50 kbps	48-VFQFN Exposed Pad	30			1.8 V	3.8 V	General ISM < 1GHz		16 kB 64 kB

Catalog

SimpleLink™ 32-bit Arm Cortex-M3 Sub-1 GHz wireless MCU with 128kB Flash

Key Features

• MicrocontrollerPowerful Arm®Cortex®-M3 ProcessorEEMBC CoreMark®Score: 142EEMBC ULPBench™ Score: 158Clock Speed up to 48-MHz32KB, 64KB, and 128KB of In-System Programmable Flash8KB of SRAM for Cache(or as General-Purpose RAM)20KB of Ultra-Low-Leakage SRAM2-Pin cJTAG and JTAG DebuggingSupports Over-the-Air (OTA) UpdateUltra-Low-Power Sensor ControllerCan Run Autonomously From the Rest of the System16-Bit Architecture2KB of Ultra-Low-Leakage SRAM for Code and DataEfficient Code-Size Architecture, Placing Parts ofTI-RTOS, Drivers, and Bootloader in ROMRoHS-Compliant Package7-mm × 7-mm RGZ VQFN48 (30 GPIOs)5-mm × 5-mm RHB VQFN32 (15 GPIOs)4-mm × 4-mm RSM VQFN32 (10 GPIOs)PeripheralsAll Digital Peripheral Pins Can Be Routed to Any GPIOFour General-Purpose Timer Modules(Eight 16-Bit or Four 32-Bit Timers, PWM Each)12-Bit ADC, 200 ksamples/s, 8-Channel Analog MUXContinuous Time ComparatorUltra-Low-Power Clocked ComparatorProgrammable Current SourceUART2× SSI (SPI, MICROWIRE, TI)I2C, I2SReal-Time Clock (RTC)AES-128 Security ModuleTrue Random Number Generator (TRNG)Support for Eight Capacitive Sensing ButtonsIntegrated Temperature SensorExternal SystemOn-Chip Internal DC/DC ConverterSeamless Integration With the SimpleLink™ CC1190 Range ExtenderLow PowerWide Supply Voltage Range: 1.8 to 3.8 VRX: 5.4 mATX at +10 dBm: 13.4 mAActive-Mode MCU 48 MHz Running Coremark: 2.5 mA (51 µA/MHz)Active-Mode MCU: 48.5 CoreMark/mAActive-Mode Sensor Controller at 24 MHz:0.4 mA + 8.2 µA/MHzSensor Controller, One Wakeup Every Second Performing One 12-Bit ADC Sampling: 0.95 µAStandby: 0.7 µA (RTC Running and RAM and CPU Retention)Shutdown: 185 nA (Wakeup on External Events)RF SectionExcellent Receiver Sensitivity –124 dBm Using Long-Range Mode, –110 dBm at 50 kbpsExcellent Selectivity (±100 kHz): 56 dBExcellent Blocking Performance (±10 MHz):90 dBProgrammable Output Power up to +15 dBmSingle-Ended or Differential RF InterfaceSuitable for Systems Targeting Compliance With Worldwide Radio Frequency RegulationsETSI EN 300 220, EN 303 204 (Europe)FCC CFR47 Part 15 (US)ARIB STD-T108 (Japan)Wireless M-Bus (EN 13757-4) and IEEE®802.15.4g PHYTools and Development EnvironmentFull-Feature and Low-Cost Development KitsMultiple Reference Designs for Different RF ConfigurationsPacket Sniffer PC SoftwareSensor Controller StudioSmartRF™ StudioSmartRF Flash Programmer 2IAR Embedded Workbench®for ArmCode Composer Studio™ (CCS) IDECCS UniFlashMicrocontrollerPowerful Arm®Cortex®-M3 ProcessorEEMBC CoreMark®Score: 142EEMBC ULPBench™ Score: 158Clock Speed up to 48-MHz32KB, 64KB, and 128KB of In-System Programmable Flash8KB of SRAM for Cache(or as General-Purpose RAM)20KB of Ultra-Low-Leakage SRAM2-Pin cJTAG and JTAG DebuggingSupports Over-the-Air (OTA) UpdateUltra-Low-Power Sensor ControllerCan Run Autonomously From the Rest of the System16-Bit Architecture2KB of Ultra-Low-Leakage SRAM for Code and DataEfficient Code-Size Architecture, Placing Parts ofTI-RTOS, Drivers, and Bootloader in ROMRoHS-Compliant Package7-mm × 7-mm RGZ VQFN48 (30 GPIOs)5-mm × 5-mm RHB VQFN32 (15 GPIOs)4-mm × 4-mm RSM VQFN32 (10 GPIOs)PeripheralsAll Digital Peripheral Pins Can Be Routed to Any GPIOFour General-Purpose Timer Modules(Eight 16-Bit or Four 32-Bit Timers, PWM Each)12-Bit ADC, 200 ksamples/s, 8-Channel Analog MUXContinuous Time ComparatorUltra-Low-Power Clocked ComparatorProgrammable Current SourceUART2× SSI (SPI, MICROWIRE, TI)I2C, I2SReal-Time Clock (RTC)AES-128 Security ModuleTrue Random Number Generator (TRNG)Support for Eight Capacitive Sensing ButtonsIntegrated Temperature SensorExternal SystemOn-Chip Internal DC/DC ConverterSeamless Integration With the SimpleLink™ CC1190 Range ExtenderLow PowerWide Supply Voltage Range: 1.8 to 3.8 VRX: 5.4 mATX at +10 dBm: 13.4 mAActive-Mode MCU 48 MHz Running Coremark: 2.5 mA (51 µA/MHz)Active-Mode MCU: 48.5 CoreMark/mAActive-Mode Sensor Controller at 24 MHz:0.4 mA + 8.2 µA/MHzSensor Controller, One Wakeup Every Second Performing One 12-Bit ADC Sampling: 0.95 µAStandby: 0.7 µA (RTC Running and RAM and CPU Retention)Shutdown: 185 nA (Wakeup on External Events)RF SectionExcellent Receiver Sensitivity –124 dBm Using Long-Range Mode, –110 dBm at 50 kbpsExcellent Selectivity (±100 kHz): 56 dBExcellent Blocking Performance (±10 MHz):90 dBProgrammable Output Power up to +15 dBmSingle-Ended or Differential RF InterfaceSuitable for Systems Targeting Compliance With Worldwide Radio Frequency RegulationsETSI EN 300 220, EN 303 204 (Europe)FCC CFR47 Part 15 (US)ARIB STD-T108 (Japan)Wireless M-Bus (EN 13757-4) and IEEE®802.15.4g PHYTools and Development EnvironmentFull-Feature and Low-Cost Development KitsMultiple Reference Designs for Different RF ConfigurationsPacket Sniffer PC SoftwareSensor Controller StudioSmartRF™ StudioSmartRF Flash Programmer 2IAR Embedded Workbench®for ArmCode Composer Studio™ (CCS) IDECCS UniFlash

Description

The CC1310 device is a cost-effective, ultra-low-power, Sub-1 GHz RF device from Texas Instruments™ that is part of the SimpleLink™microcontroller (MCU) platform. The platform consists of Wi-Fi®,Bluetooth®low energy, Sub-1 GHz, Ethernet, Zigbee®, Thread, and host MCUs. These devices all share a common, easy-to-use development environment with a single core software development kit (SDK) and a rich tool set. A one-time integration of the SimpleLink platform enables users to add any combination of devices from the portfolio into their design, allowing 100 percent code reuse when design requirements change. For more information, visitwww.ti.com/simplelink. With very low active RF and MCU current consumption, in addition to flexible low-power modes, the CC1310 device provides excellent battery life and allows long-range operation on small coin-cell batteries and in energy harvesting applications. The CC1310 is a device in the CC13xx and CC26xx family of cost-effective, ultra-low-power wireless MCUs capable of handling Sub-1 GHz RF frequencies. The CC1310 device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm®Cortex®-M3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and flexibility. The low-power consumption of the CC1310 device does not come at the expense of RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance. The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC/DC converter. Sensors can be handled in a very low-power manner by a dedicated autonomous ultra-low-power MCU that can be configured to handle analog and digital sensors; thus the main MCU (Arm®Cortex®-M3) can maximize sleep time. The power and clock management and radio systems of the CC1310 device require specific configuration and handling by software to operate correctly, which has been implemented in the TI-RTOS. TI recommends using this software framework for all application development on the device. The completeTI-RTOSand device drivers are offered free of charge in source code. The CC1310 device is a cost-effective, ultra-low-power, Sub-1 GHz RF device from Texas Instruments™ that is part of the SimpleLink™microcontroller (MCU) platform. The platform consists of Wi-Fi®,Bluetooth®low energy, Sub-1 GHz, Ethernet, Zigbee®, Thread, and host MCUs. These devices all share a common, easy-to-use development environment with a single core software development kit (SDK) and a rich tool set. A one-time integration of the SimpleLink platform enables users to add any combination of devices from the portfolio into their design, allowing 100 percent code reuse when design requirements change. For more information, visitwww.ti.com/simplelink. With very low active RF and MCU current consumption, in addition to flexible low-power modes, the CC1310 device provides excellent battery life and allows long-range operation on small coin-cell batteries and in energy harvesting applications. The CC1310 is a device in the CC13xx and CC26xx family of cost-effective, ultra-low-power wireless MCUs capable of handling Sub-1 GHz RF frequencies. The CC1310 device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm®Cortex®-M3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and flexibility. The low-power consumption of the CC1310 device does not come at the expense of RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance. The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC/DC converter. Sensors can be handled in a very low-power manner by a dedicated autonomous ultra-low-power MCU that can be configured to handle analog and digital sensors; thus the main MCU (Arm®Cortex®-M3) can maximize sleep time. The power and clock management and radio systems of the CC1310 device require specific configuration and handling by software to operate correctly, which has been implemented in the TI-RTOS. TI recommends using this software framework for all application development on the device. The completeTI-RTOSand device drivers are offered free of charge in source code.
