881808 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

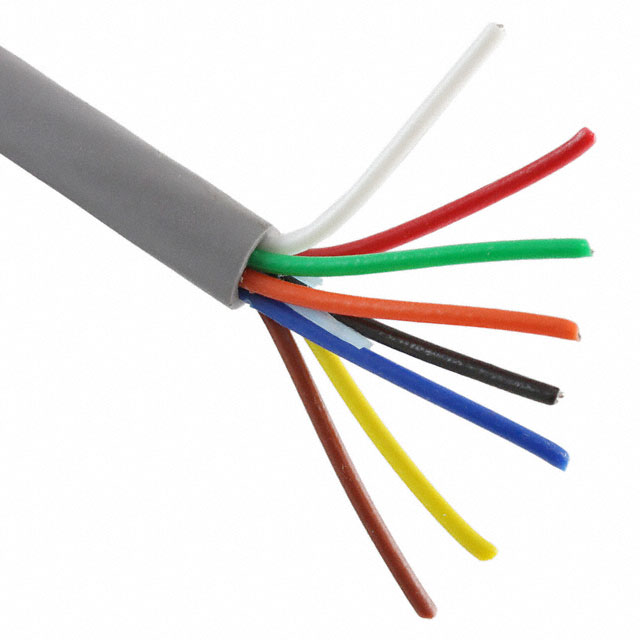

CABLE 8COND 18AWG SLATE 1000'
| Part | Number of Conductors [custom] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Insulation | Length | Length | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 8 | UL Style 2464 | 0.94 mm | 0.037 in | 18 AWG | Copper Tinned | 300 VDC | 16 | 30 AWG | Multi-Conductor | 8.66 mm | 0.341 in | Slate | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | -20 ░C | 90 °C |
