V23057 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 8A 12V
| Part | Coil Resistance | Operate Time | Approval Agency | Switching Voltage [Max] | Contact Form | Relay Type | Must Operate Voltage | Release Time | Mounting Type | Coil Type | Load - Max Switching | Termination Style | Coil Current | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Rating (Current) | Must Release Voltage | Load - Max Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

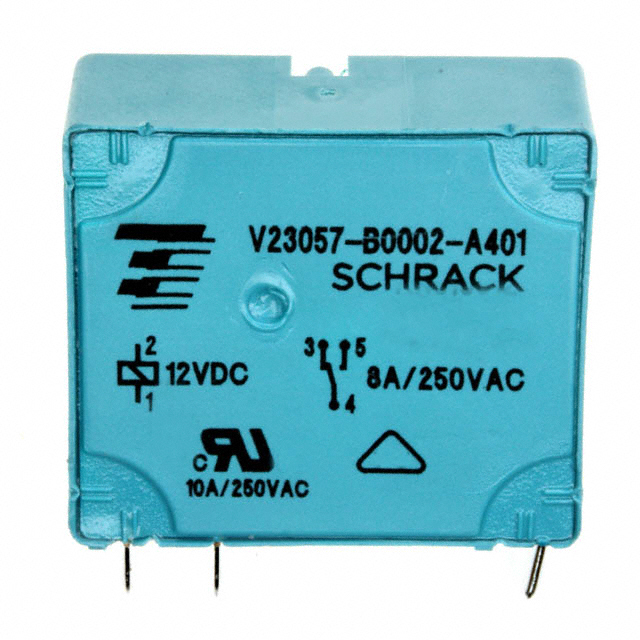

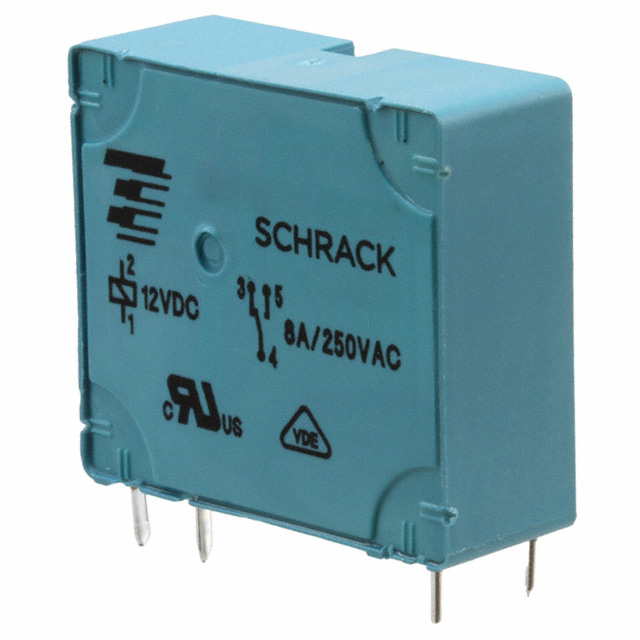

 TE Connectivity AMP Connectors | 330 Ohms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 8 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 36.3 mA | Silver Cadmium Oxide (AgCdO) | 70 °C | -40 C | 12 VDC | 8 A | 1.2 VDC | |

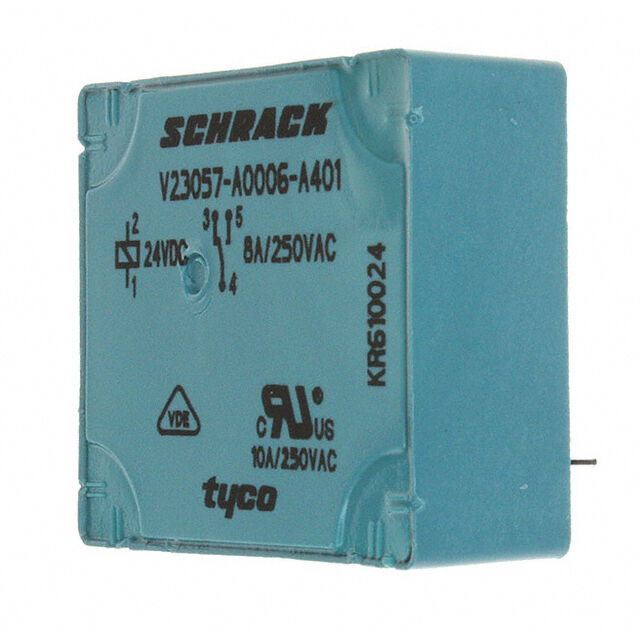

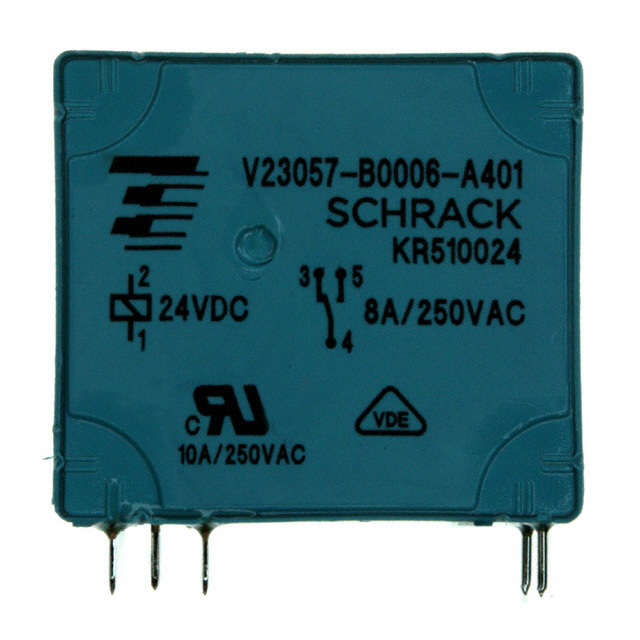

 TE Connectivity AMP Connectors | 1.2 kOhms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 16 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 0.02 A | Silver Cadmium Oxide (AgCdO) | 70 °C | -40 C | 24 VDC | 8 A | 2.4 VDC | |

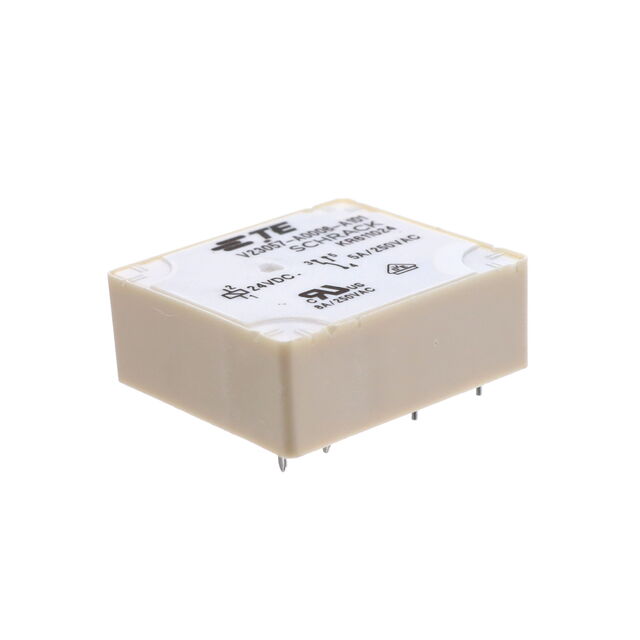

 TE Connectivity AMP Connectors | 1.2 kOhms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 16 VDC | 3 ms | Through Hole | Non Latching | PC Pin | 0.02 A | Silver Nickel (AgNi) | 70 °C | -40 C | 24 VDC | 5 A | 2.4 VDC | 2000 VA | |
 TE Connectivity AMP Connectors | 330 Ohms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 8 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 36.3 mA | Silver Nickel (AgNi) | 70 °C | -40 C | 12 VDC | 8 A | 1.2 VDC | |

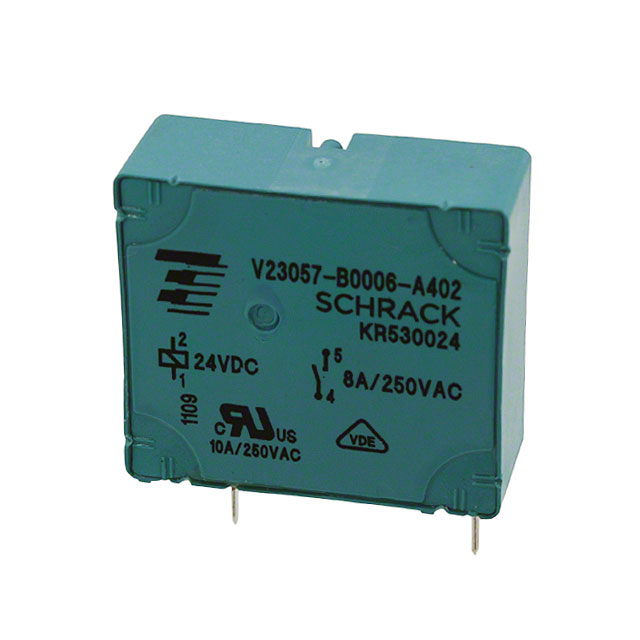

 TE Connectivity AMP Connectors | 1.2 kOhms | 7 ms | cURus VDE | 400 VAC | SPST-NO (1 Form A) | General Purpose | 16 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 0.02 A | Silver Cadmium Oxide (AgCdO) | 70 °C | -40 C | 24 VDC | 8 A | 2.4 VDC | |
 TE Connectivity AMP Connectors | 1.2 kOhms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 16 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 0.02 A | Silver Cadmium Oxide (AgCdO) | 70 °C | -40 C | 24 VDC | 8 A | 2.4 VDC | |
 TE Connectivity AMP Connectors | 4700 Ohms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 32 VDC | 3 ms | Through Hole | Non Latching | PC Pin | 10.2 mA | Silver Nickel (AgNi) | 70 °C | -40 C | 48 VDC | 5 A | 4.8 VDC | 2000 VA | |
TE Connectivity AMP Connectors | ||||||||||||||||||||
TE Connectivity AMP Connectors | 330 Ohms | 7 ms | cURus VDE | 400 VAC | SPST-NO (1 Form A) | General Purpose | 8 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 36.3 mA | Silver Cadmium Oxide (AgCdO) | 70 °C | -40 C | 12 VDC | 8 A | 1.2 VDC | |
TE Connectivity AMP Connectors | 330 Ohms | 7 ms | cURus VDE | 400 VAC | SPDT (1 Form C) | General Purpose | 8.3 VDC | 3 ms | Through Hole | Non Latching | 3200 VA | PC Pin | 36.4 mA | Silver Nickel (AgNi) | 70 °C | -40 C | 12 VDC | 8 A | 1.2 VDC |
