1744067 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

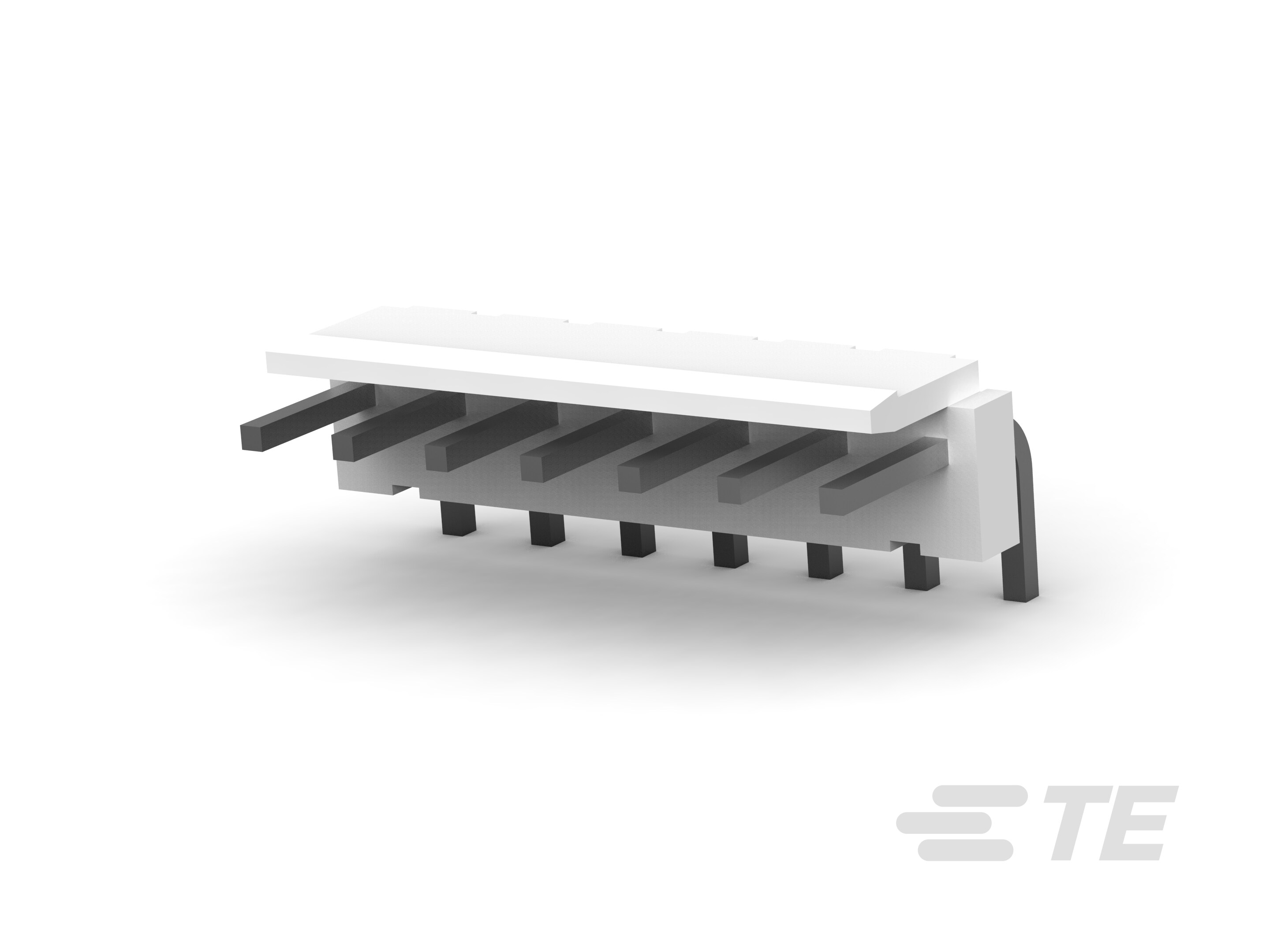

07P EC PWR.200 CL ASSY RA WO#5
| Part | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Number of Rows | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Material | Style | Termination | Number of Positions | Fastening Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Type | Contact Length - Mating | Contact Length - Mating | Shrouding | Insulation Color | Current Rating (Amps) | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | General Purpose Industrial Lighting | 120 µin | 3.05 Ám | 250 VAC | 1 | Header | 120 Áin | 3.05 Ám | Square | 8.2 mm | 0.323 in | 3.6 mm | 0.142 in | Copper Alloy | Board to Cable/Wire | Solder | 7 | Locking Ramp | UL94 V-0 | 5.08 mm | 0.2 in | Tin | Male Pin | 8.59 mm | 0.338 " | Shrouded - 1 Wall | Natural | 7.5 A | Polyamide (PA66) Nylon 6/6 | -25 °C | 105 ░C | Through Hole Right Angle |
