0671-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Socket Depth	Socket Depth	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]

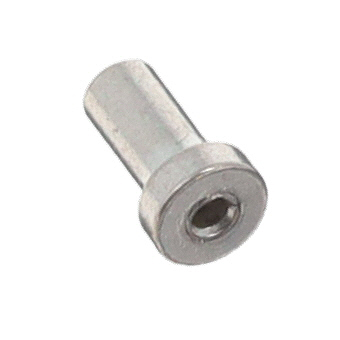

Mill-Max Manufacturing Corp. 0671-0-15-01-12-02-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	2.54 µm	100 µin	0.38 mm	0.022 in	0.015 "	0.56 mm	Tin-Lead	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm
Mill-Max Manufacturing Corp. 0671-0-15-80-12-14-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	Gold	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm
Mill-Max Manufacturing Corp. 0671-0-15-80-12-84-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	2.54 µm	100 µin	0.38 mm	0.022 in	0.015 "	0.56 mm	Tin	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm
Mill-Max Manufacturing Corp. 0671-0-15-15-12-14-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	Gold	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm
Mill-Max Manufacturing Corp. 0671-0-15-01-12-14-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	Gold	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm
Mill-Max Manufacturing Corp. 0671-0-15-80-12-27-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	0.76 Ám	30 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	Gold	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm

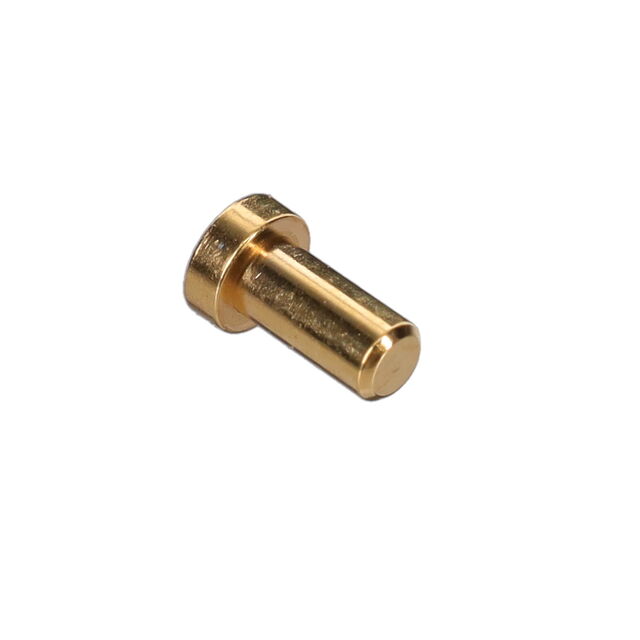

Mill-Max Manufacturing Corp. 0671-0-15-15-12-27-10-0	-55 C	125 °C	Solder	0.13 in	3.3 mm	Beryllium Copper	0.76 Ám	30 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	Gold	No Tail	0.094 "	2.39 mm	3.94 mm	0.155 in	0.063 in	1.6 mm
