842-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 42POS 0.100
| Part | Termination Rows | Material - Insulation | Read Out | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Gender | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Color | Termination | Number of Positions/Bay/Row | Number of Positions | Number of Rows | Contact Type | Termination Rows [custom] | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

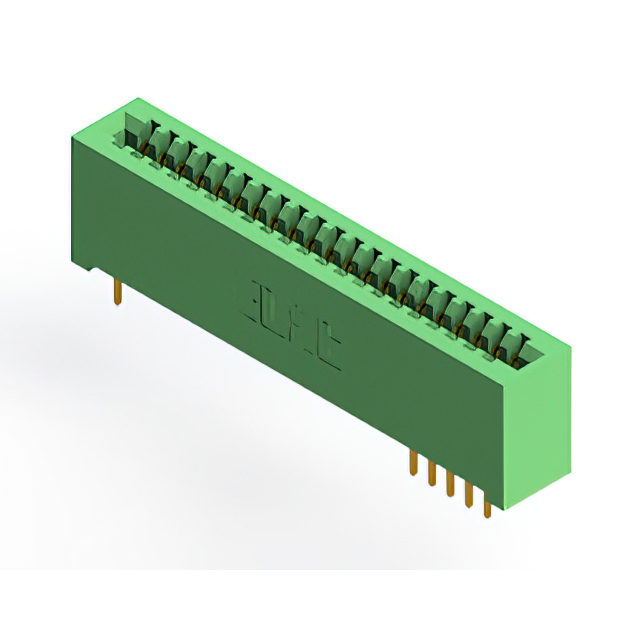

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Green | Wire Wrap | 42 | 42 | 1 | Cantilever | ||||

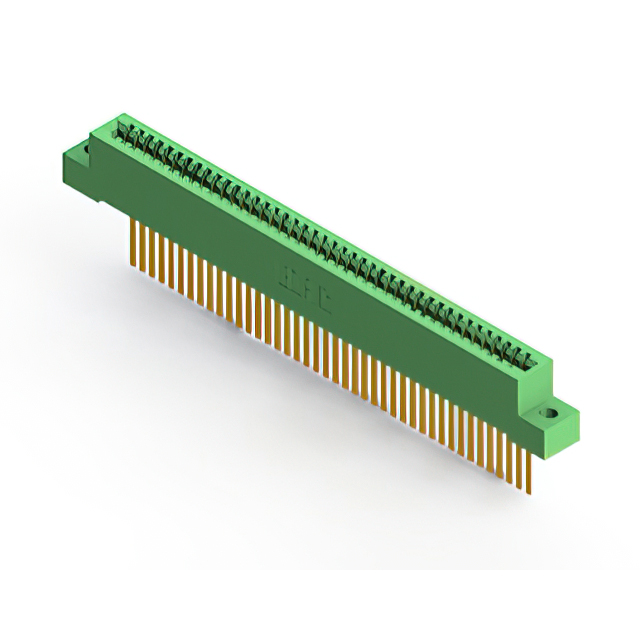

 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Wire Wrap | 42 | Cantilever | 2 | 2 | 21 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | 125 °C | -40 C | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Solder | 42 | Cantilever | 2 | 2 | 21 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Gold | 125 °C | -40 C | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Solder | 42 | Cantilever | 2 | 2 | 21 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Solder | 42 | Cantilever | 2 | 2 | 21 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 125 °C | -40 C | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Solder | 42 | Cantilever | 2 | 2 | 21 | Card Extender | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Wire Wrap | 42 | Cantilever | 2 | 2 | 21 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Solder | 42 | Cantilever | 2 | 2 | 21 | |||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Solder | 42 | Cantilever | 2 | 2 | 21 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Female | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Gold | 125 °C | -40 C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Green | Wire Wrap | 42 | Cantilever | 2 | 2 | 21 |
