SFW4R Series

Catalog

CONN FFC FPC BOTTOM 4POS 1MM R/A

Part	Actuator Color	Housing Color	Mating Cycles	Connector/Contact Type	Contact Finish	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Voltage Rating	Locking Feature	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch	Pitch	Cable End Type	Material Flammability Rating	Housing Material	Termination	Mounting Type	Number of Positions	FFC, FCB Thickness	Features

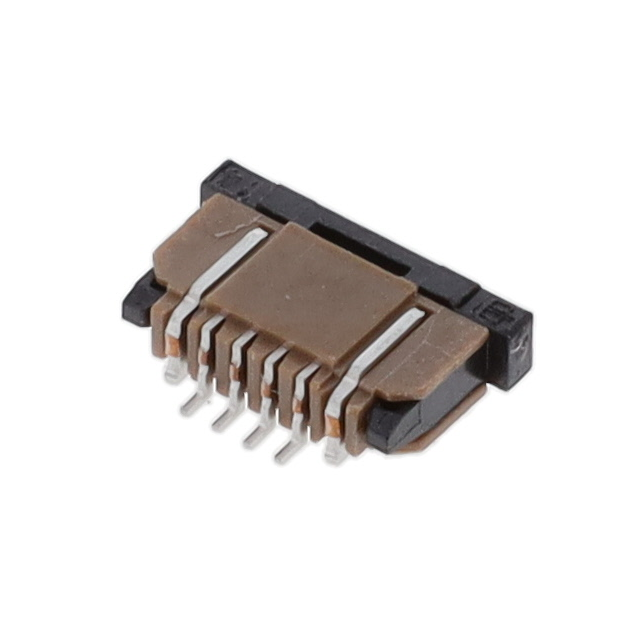

Amphenol ICC (FCI) SFW4R-1STE9LF	Black	Brown	20	Contacts Bottom	Tin	0.3 mm	0.33 mm	0.106 in	2.7 mm	FFC FPC	100 V	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	1 mm	0.039 in	Straight Tapered	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Right Angle Surface Mount	4
Amphenol ICC (FCI) SFW4R-2STGE1LF		Brown	20	Contacts Top	Gold			0.106 in	2.7 mm	FPC	100 V		Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	1 mm	0.039 in	Straight or Tapered	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Kinked Pin	Right Angle Surface Mount	4	0.3 mm
Amphenol ICC (FCI) SFW4R-1STAE1HLF																	1 mm	0.039 in				Solder	Right Angle Surface Mount	4
Amphenol ICC (FCI) SFW4R-3STE1HLF	Gray	Gray		Contacts Bottom	Tin	0.3 mm	0.33 mm	0.106 in	2.7 mm	FFC FPC		Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free			Phosphor Bronze	1 mm	0.039 in	Notched	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Solder	Right Angle Surface Mount	4
Amphenol ICC (FCI) SFW4R-1STAE5LF	Black	Brown		Contacts Bottom	Gold			0.106 in	2.7 mm	FPC		Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled			Phosphor Bronze	1 mm	0.039 in	Tapered	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Right Angle Surface Mount	4	0.33 mm
Amphenol ICC (FCI) SFW4R-2STRE1LF				Contacts Top	Tin			0.106 in	2.7 mm		100 V	Slide Lock		-55 C	105 ░C		1 mm	0.039 in	Straight		Polyphenylene Sulfide (PPS) Glass Filled	Solder	Right Angle Surface Mount	4	0.33 mm
Amphenol ICC (FCI) SFW4R-2STRE1				Contacts Top				0.106 in	2.7 mm			Slide Lock					1 mm	0.039 in				Solder	Right Angle Surface Mount	4

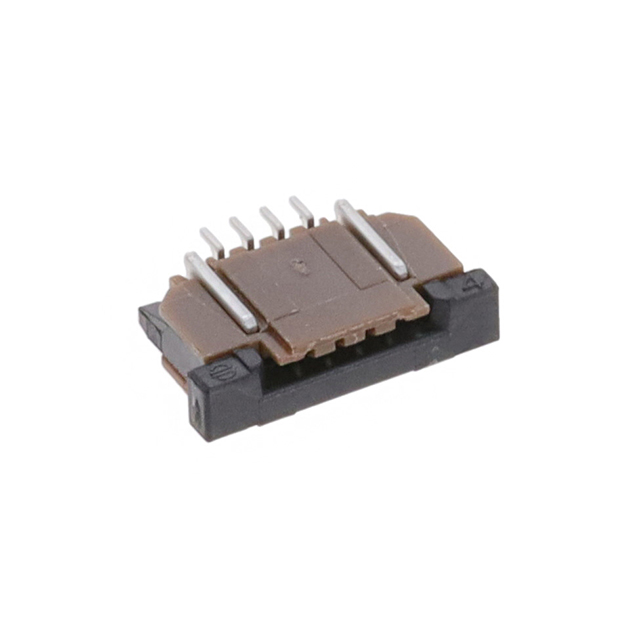

Amphenol ICC (FCI) SFW4R-1STE1LF	Black	Brown	20	Contacts Bottom	Tin	0.3 mm	0.33 mm	0.106 in	2.7 mm	FFC FPC	100 V	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	1 mm	0.039 in	Straight Tapered	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Right Angle Surface Mount	4		Solder Retention Zero Insertion Force (ZIF)

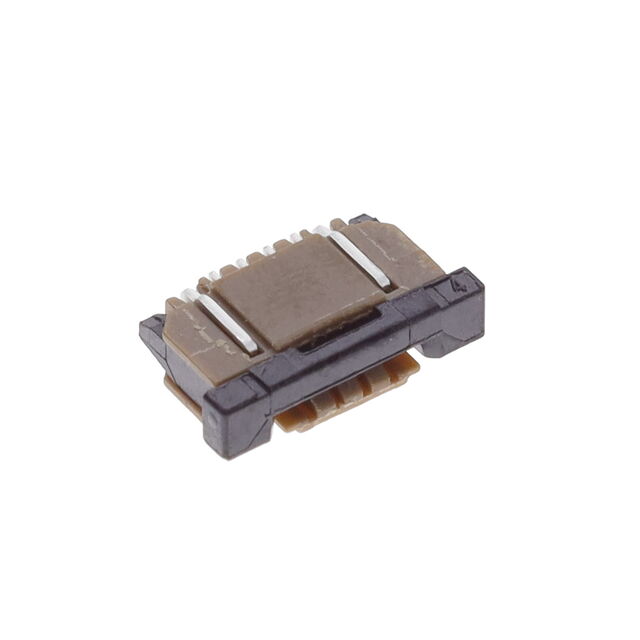

Amphenol ICC (FCI) SFW4R-1STAE1LF	Black	Brown	20	Contacts Bottom	Gold	0.3 mm	0.33 mm	0.106 in	2.7 mm	FPC	100 V	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	1 mm	0.039 in	Straight Tapered	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Solder	Right Angle Surface Mount	4
Amphenol ICC (FCI) SFW4R-5STE1LF		Brown	10	Contacts Bottom	Tin			0.106 in	2.7 mm	CIC	100 V		Polyphenylene Sulfide (PPS) Glass Filled	-55 C	105 ░C	Phosphor Bronze	1 mm	0.039 in	Straight or Tapered	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Kinked Pin	Right Angle Surface Mount	4	0.3 mm
