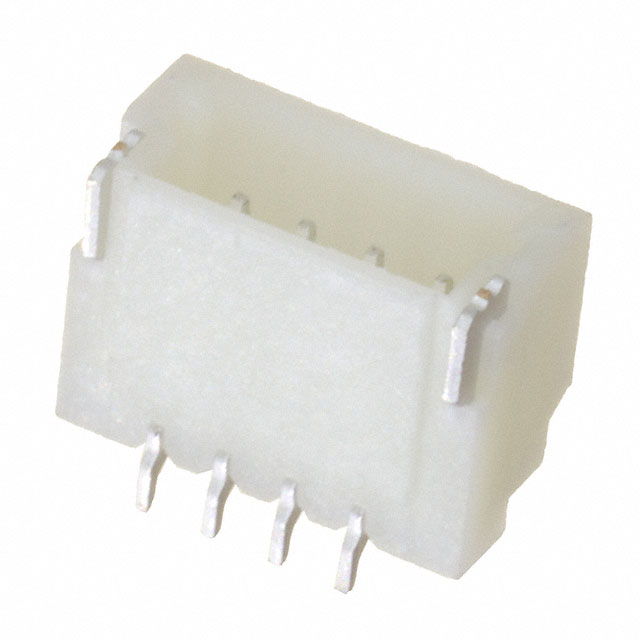

1SH-A Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER SMD 6POS 1MM
| Part | Pitch - Mating | Pitch - Mating | Connector Type | Number of Rows | Insulation Color | Contact Type | Material Flammability Rating | Shrouding | Style | Contact Shape | Number of Positions Loaded | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Material | Fastening Type | Number of Positions | Mounting Type | Termination | Contact Finish - Post | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

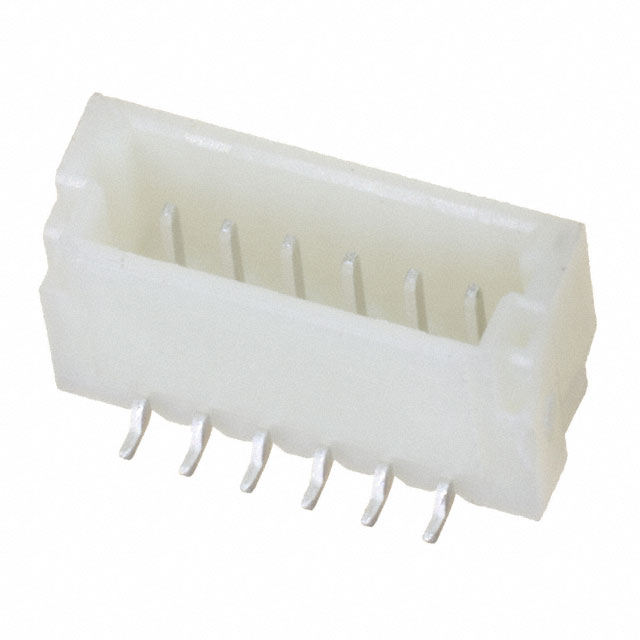

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 4.25 mm | 0.167 " | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 6 | Surface Mount | Solder | Tin | Solder Retention |

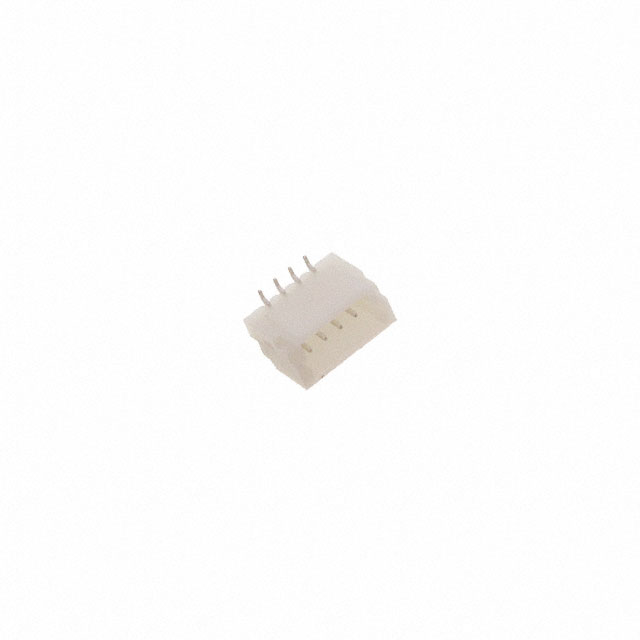

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 4.25 mm | 0.167 " | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 4 | Surface Mount | Solder | Tin | Solder Retention |
 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 2.9 mm | 0.114 in | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 4 | Right Angle Surface Mount | Solder | Tin | Solder Retention |

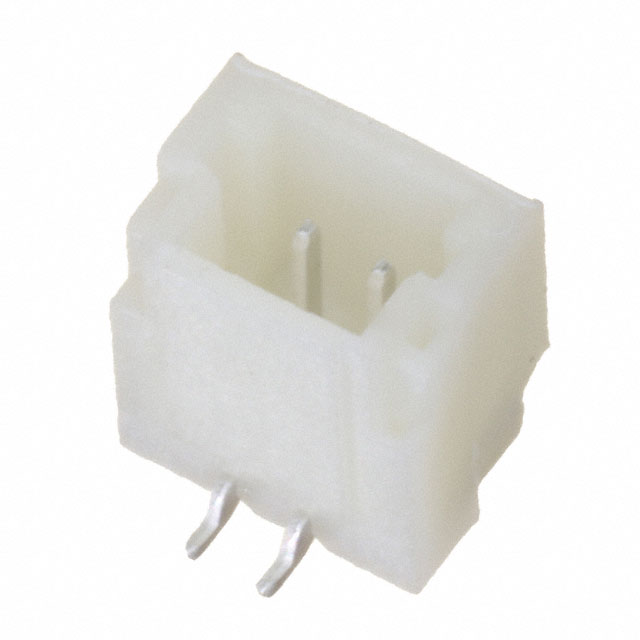

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 4.25 mm | 0.167 " | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 2 | Surface Mount | Solder | Tin | Solder Retention |

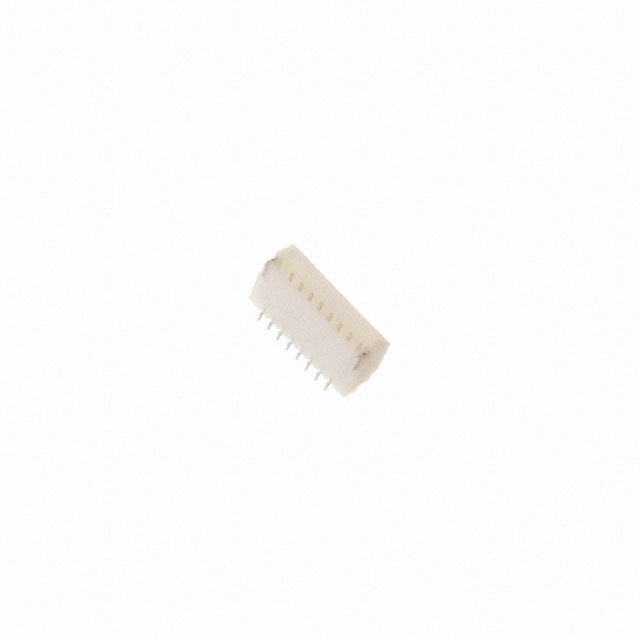

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 2.9 mm | 0.114 in | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 8 | Right Angle Surface Mount | Solder | Tin | Solder Retention |

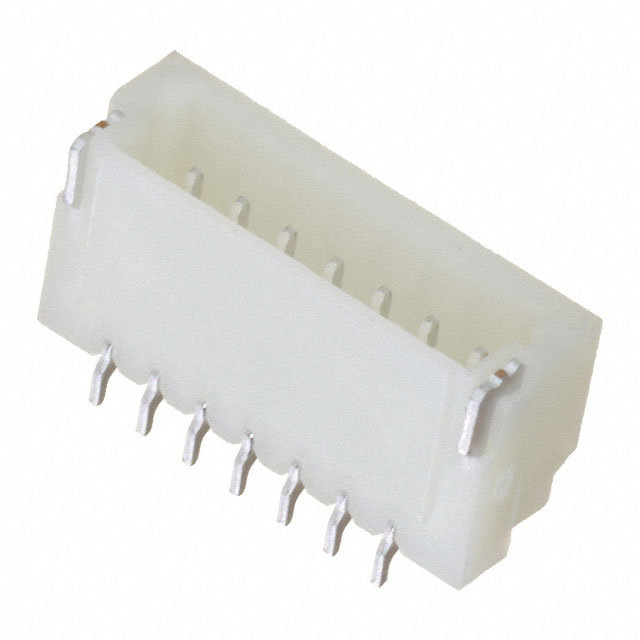

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 2.9 mm | 0.114 in | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 7 | Right Angle Surface Mount | Solder | Tin | Solder Retention |
 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 2.9 mm | 0.114 in | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | Right Angle Surface Mount | Solder | Tin | Solder Retention | |
 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 4.25 mm | 0.167 " | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 8 | Surface Mount | Solder | Tin | Solder Retention |

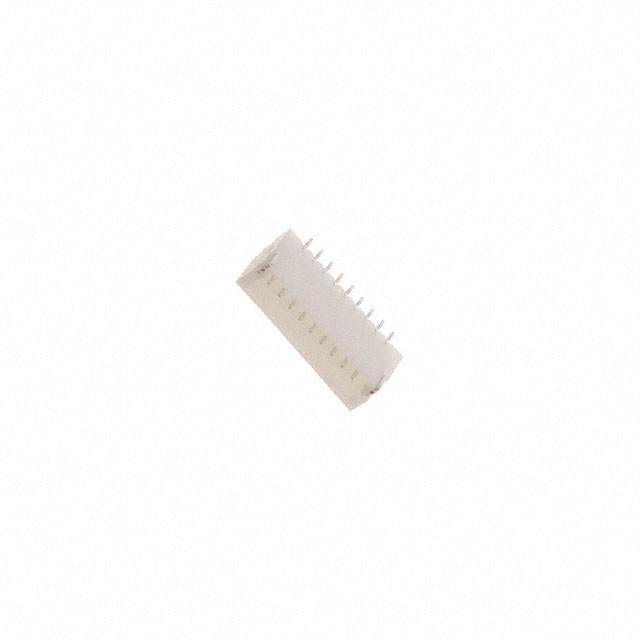

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 2.9 mm | 0.114 in | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 9 | Right Angle Surface Mount | Solder | Tin | Solder Retention |

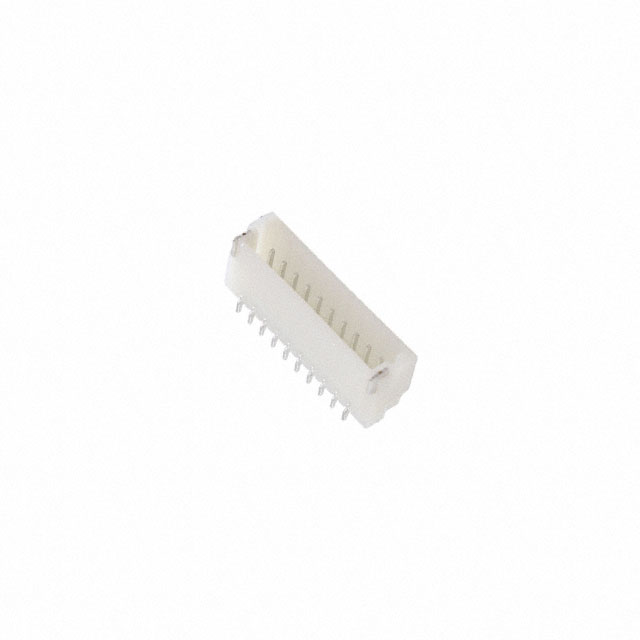

 Adam Tech | 1 mm | 0.039 in | Header | 1 | Natural | Male Pin | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Square | All | 2.9 mm | 0.114 in | 85 °C | -25 °C | 50 VAC | Brass | Friction Lock | 10 | Right Angle Surface Mount | Solder | Tin | Solder Retention |
