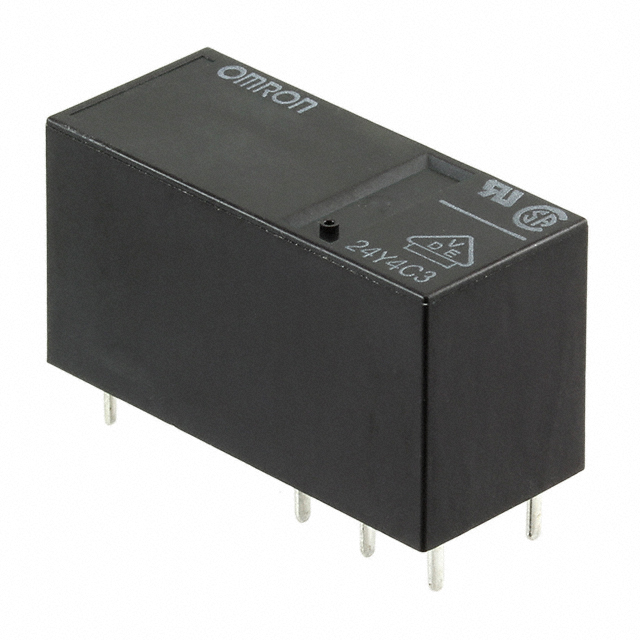

G5RLU-1-E Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPDT 16A 5V

Part	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Resistance	Termination Style	Load - Max Switching	Operate Time	Switching Voltage	Contact Material	Contact Form	Mounting Type	Coil Current	Release Time	Seal Rating	Must Operate Voltage	Coil Voltage	Approval Agency	Contact Rating (Current)
Omron Electronics Inc-EMC Div G5RLU-1-E DC5	General Purpose	85 °C	-40 °C	Latching Single Coil	41.7 Ohms	PC Pin	384 W 4000 VA	15 ms	24 VDC 250 VAC	Cadmium Free Silver Alloy	SPDT (1 Form C)	Through Hole	120 mA	15 ms	Sealed - Flux Protection	3.5 VDC	5 VDC	CQC CSA cURus UR VDE	16 A
Omron Electronics Inc-EMC Div G5RLU-1-E DC6	General Purpose	85 °C	-40 °C	Latching Single Coil	60 Ohms	PC Pin	384 W 4000 VA	15 ms	24 VDC 250 VAC	Cadmium Free Silver Alloy	SPDT (1 Form C)	Through Hole	100 mA	15 ms	Sealed - Flux Protection	4.2 VDC		CQC CSA cURus UR VDE	16 A
Omron Electronics Inc-EMC Div G5RL-U1-E DC12	General Purpose	85 °C	-40 °C	Latching Single Coil	240 Ohms	PC Pin	384 W 4000 VA	15 ms	24 VDC 250 VAC	Cadmium Free Silver Alloy	SPDT (1 Form C)	Through Hole	50 mA	15 ms	Sealed - Flux Protection	8.4 VDC	12 VDC	CQC CSA cURus UR VDE	16 A
Omron Electronics Inc-EMC Div G5RL-U1-E DC24	General Purpose	85 °C	-40 °C	Latching Single Coil	960 Ohms	PC Pin	384 W 4000 VA	15 ms	24 VDC 250 VAC	Cadmium Free Silver Alloy	SPDT (1 Form C)	Through Hole		15 ms	Sealed - Flux Protection	16.8 VDC	24 VDC	CQC CSA cURus UR VDE	16 A
Omron Electronics Inc-EMC Div G5RLU-1-E DC3	General Purpose	85 °C	-40 °C	Latching Single Coil	15 Ohms	PC Pin	384 W 4000 VA	15 ms	24 VDC 250 VAC	Cadmium Free Silver Alloy	SPDT (1 Form C)	Through Hole	200 mA	15 ms	Sealed - Flux Protection	2.1 VDC		CQC CSA cURus UR VDE	16 A
