RFABSMA Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

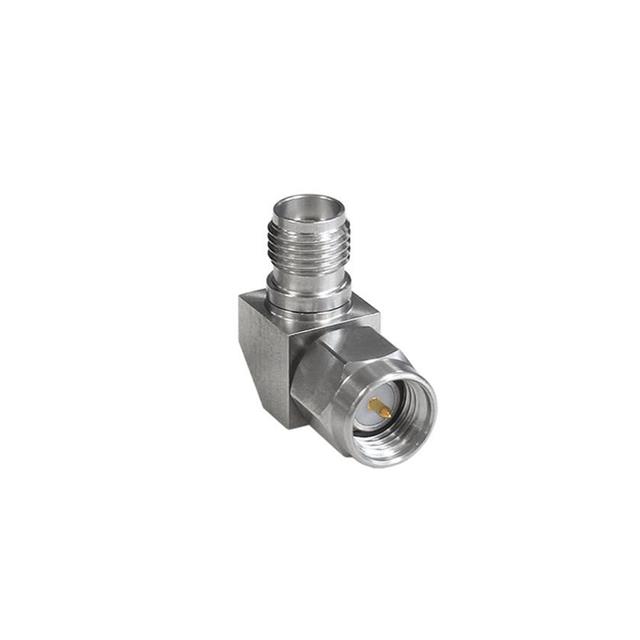

RF / COAXIAL ADAPTER, SMA, JACK, SMA, PLUG, RIGHT ANGLE ADAPTER, 50 OHM
| Part | Body Material | Center Contact Material | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Style | Adapter Type | Conversion Type | Mounting Type | Convert From (Adapter End) | Impedance | Frequency - Max [Max] | Convert To (Adapter End) | Adapter Series | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Stainless Steel | Beryllium Copper | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Right Angle | Plug to Jack | Same Series | Free Hanging (In-Line) Right Angle | Female Socket SMA Jack | 50 Ohms | 26.5 GHz | SMA Plug Male Pin | SMA to SMA | |
BULGIN LIMITED | Stainless Steel | Beryllium Copper | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Right Angle | Jack to Jack | Same Series | Free Hanging (In-Line) Right Angle | Female Socket SMA Jack | 50 Ohms | 26.5 GHz | SMA Jack Female Socket | SMA to SMA | Female to Female |
BULGIN LIMITED | Stainless Steel | Beryllium Copper | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Right Angle | Plug to Plug | Same Series | Free Hanging (In-Line) Right Angle | Male Pin SMA Plug | 50 Ohms | 26.5 GHz | SMA Plug Male Pin | SMA to SMA | Male to Male |
