BD7562 Series

High Speed Input-Output Full Swing Operational Amplifier

Catalog

High Speed Input-Output Full Swing Operational Amplifier

Part	Number of Circuits	Current - Output / Channel	Voltage - Supply Span (Min) [Min]	Voltage - Supply Span (Max) [Max]	Package / Case	Voltage - Input Offset	Output Type	Current - Input Bias	Supplier Device Package	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Slew Rate	Amplifier Type	Mounting Type	Gain Bandwidth Product

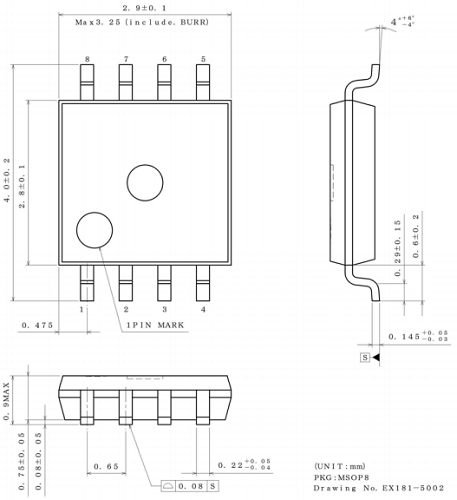

Rohm Semiconductor BD7562FVM-TR	2	14 mA	5 V	14.5 V	8-MSOP 8-VSSOP	1 mV	Rail-to-Rail	1 pA	8-MSOP	900 µA	85 °C	-40 C	1 V/µs	CMOS	Surface Mount	1 MHz
Rohm Semiconductor BD7562SFVM-TR	2	14 mA	5 V	14.5 V	8-MSOP 8-VSSOP	1 mV	Rail-to-Rail	1 pA	8-MSOP	900 µA	105 ░C	-40 C	1 V/µs	CMOS	Surface Mount	1 MHz
Rohm Semiconductor BD7562F-E2	2	14 mA	5 V	14.5 V	8-SOIC (0.173" 4.40mm Width)	1 mV	Rail-to-Rail	1 pA	8-SOP	900 µA	85 °C	-40 C	1 V/µs	CMOS	Surface Mount	1 MHz

Catalog

High Speed Input-Output Full Swing Operational Amplifier

Description

ROHM's family of High voltage CMOS op-amps (BD7561, BD7541, BD7562, and BD7542) integrate phase compensation, input / output full swing operation, and 1 or 2 circuits on a single chip. Additional feature wide operating voltage range of between 5.0V and 14.5V (single power supply) , combined with low current consumption and incredibly low input bias current, make them ideal for applications of all types.
