G3B15AH Series

Catalog

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Part	Electrical Life	Mechanical Life	Type	Termination Style	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage Rating - AC	Color - Actuator/Cap	Actuator Marking	Mounting Type	Voltage Rating - DC	Circuit	Actuator Type
NKK Switches G3B15AH-R-XA	50000 Cycles	50000 Cycles	Standard	Gull Wing	0.4 VA	On-Mom	85 °C	-30 ░C	Process Sealed	28 V	Black	No Marking	Right Angle Surface Mount	28 V	SPDT	Button Round

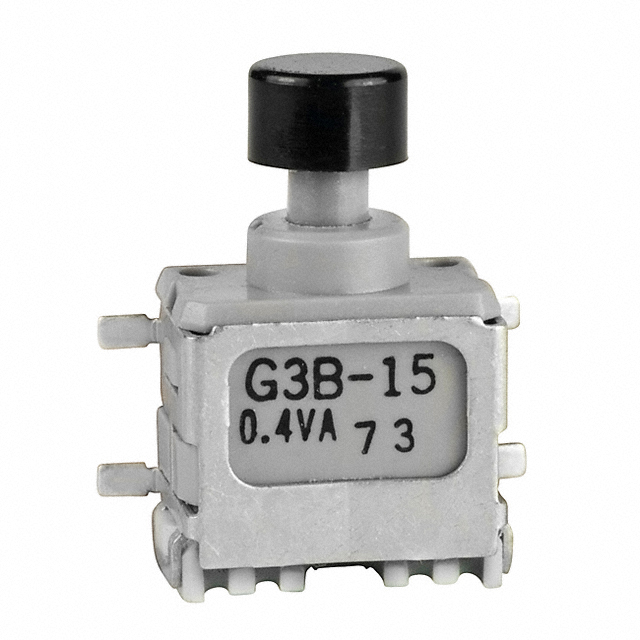

NKK Switches G3B15AH-XA	50000 Cycles	50000 Cycles	Standard	Gull Wing	0.4 VA	On-Mom	85 °C	-30 ░C	Process Sealed	28 V	Black	No Marking	Right Angle Surface Mount	28 V	SPDT	Button Round

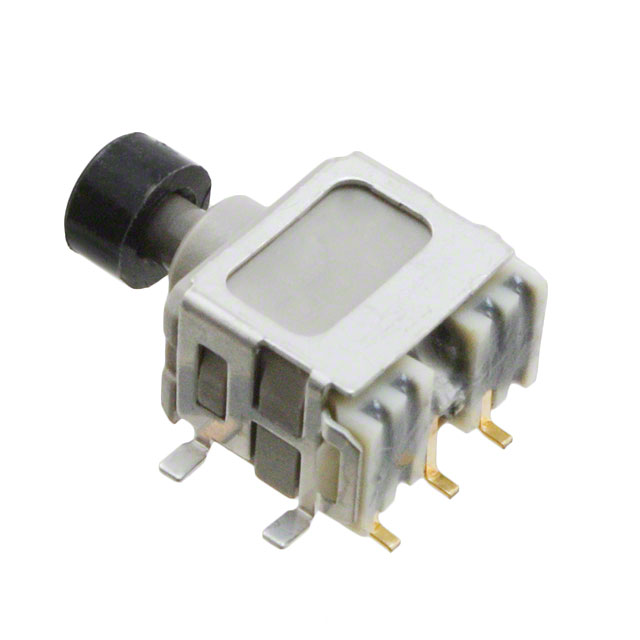

NKK Switches G3B15AH-R-YA	50000 Cycles	50000 Cycles	Standard	Gull Wing	0.4 VA	On-Mom	85 °C	-30 ░C	Process Sealed	28 V	Black	No Marking	Right Angle Surface Mount	28 V	SPDT	Button Round

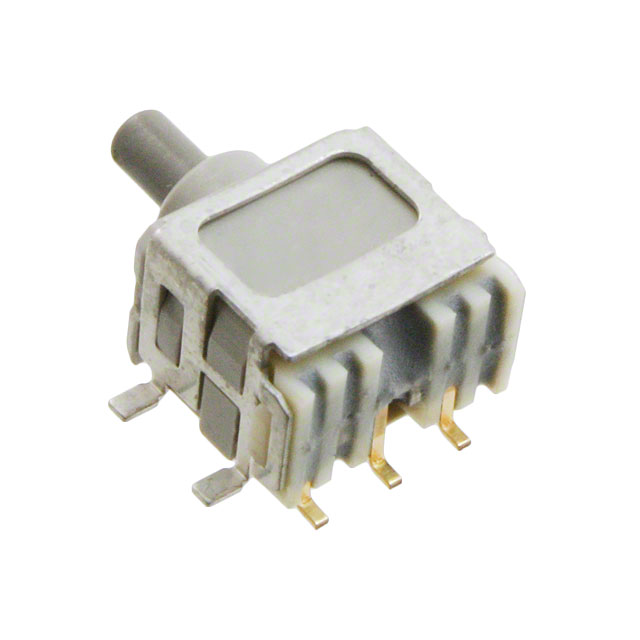

NKK Switches G3B15AH-R	50000 Cycles	50000 Cycles	Standard	Gull Wing	0.4 VA	On-Mom	85 °C	-30 ░C	Process Sealed	28 V		No Marking	Right Angle Surface Mount	28 V	SPDT	Plunger Round

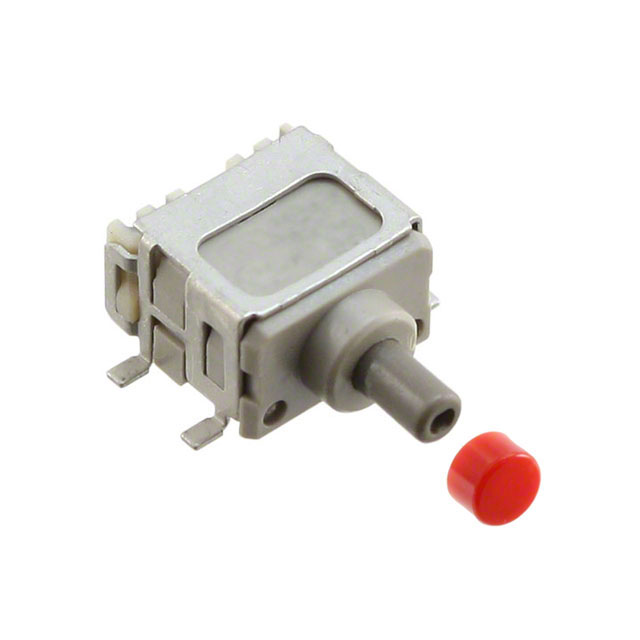

NKK Switches G3B15AH-XC	50000 Cycles	50000 Cycles	Standard	Gull Wing	0.4 VA	On-Mom	85 °C	-30 ░C	Process Sealed	28 V	Red	No Marking	Right Angle Surface Mount	28 V	SPDT	Button Round
NKK Switches G3B15AH-R-XC	50000 Cycles	50000 Cycles	Standard	Gull Wing	0.4 VA	On-Mom	85 °C	-30 ░C	Process Sealed	28 V	Red	No Marking	Right Angle Surface Mount	28 V	SPDT	Button Round
