8484 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

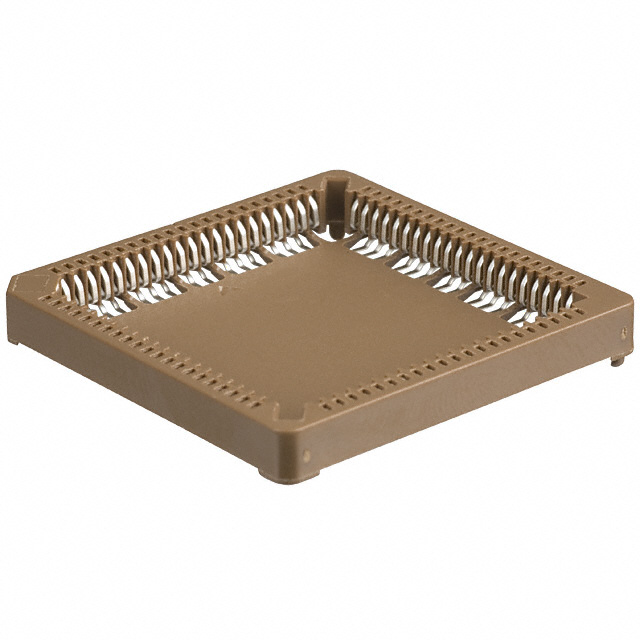

CONN PLCC SOCKET SKT 84 POS 1.27MM SOLDER ST SMD BOX
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Mounting Type | Pitch - Post | Pitch - Post | Housing Material | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Contact Material - Post [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 1 A | 0.132 " | 3.35 mm | UL94 V-0 | Surface Mount | 0.05 in | 1.27 mm | Polybutylene Terephthalate (PBT) Glass Filled | Tin | -40 C | 105 ░C | Copper Alloy | 1.27 mm | 0.05 in | Copper Alloy | 4.06 µm | 160 µin | Solder | PLCC | Closed Frame |
 3M Electronic Specialty | 1 A | 0.132 " | 3.35 mm | UL94 V-0 | Surface Mount | 0.05 in | 1.27 mm | Polybutylene Terephthalate (PBT) Glass Filled | Tin | -40 C | 105 ░C | Copper Alloy | 1.27 mm | 0.05 in | Copper Alloy | 4.06 µm | 160 µin | Solder | PLCC | Closed Frame |
