3TL3 Series

Catalog

SWITCH TOGGLE 3PDT 15A 125V

Part	Actuator Material	Current Rating (Amps)	Actuator Type	Switch Function	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Termination Style	Circuit	Bushing Thread	Actuator Length [x]	Ingress Protection	Illumination Type, Color	Illumination Voltage (Nominal)

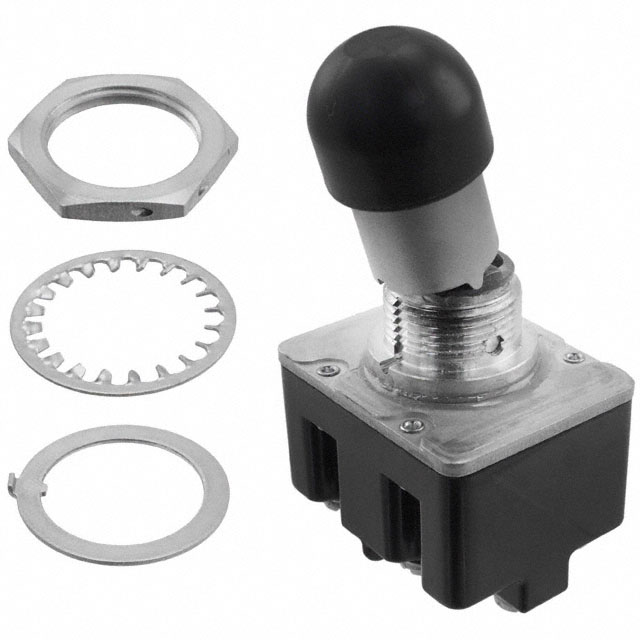

Honeywell Sensing and Productivity Solutions 3TL32-1-3D	Nickel Plated	15 A	Locking Lever	On-On	Illuminated	-65 ░C	71 °C	Panel Mount	125 V	Wire Leads	3PDT	3/4-20	38.86 mm	Environment Sealed	Incandescent Red	28 VAC
Honeywell Sensing and Productivity Solutions 3TL32-12A	Nickel Plated	15 A	Locking Lever	On-On-On	Illuminated	-65 ░C	71 °C	Panel Mount	125 V	Wire Leads	3PDT	3/4-20	38.86 mm	Environment Sealed	Incandescent Red	28 VAC

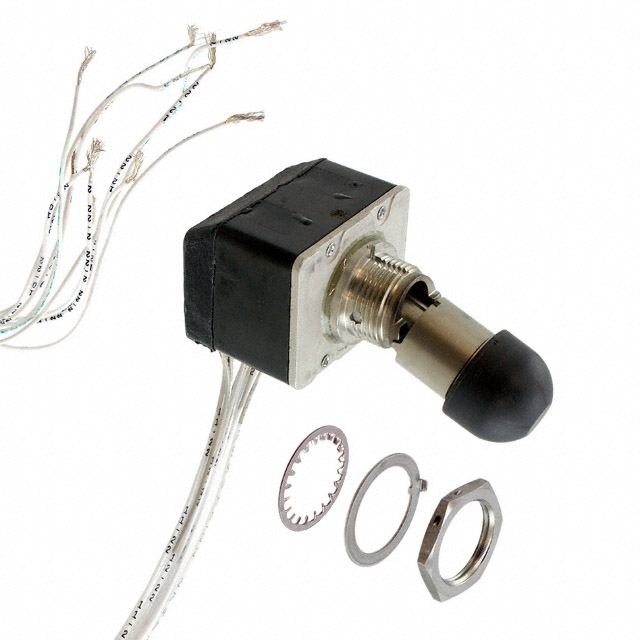

Honeywell Sensing and Productivity Solutions 3TL32-3D	Nickel Plated	15 A	Locking Lever	On-On	Illuminated	-65 ░C	71 °C	Panel Mount	125 V	Wire Leads	3PDT	3/4-20	38.86 mm	Environment Sealed	Incandescent Red	28 VAC
Honeywell Sensing and Productivity Solutions 3TL32-3-3D	Nickel Plated	15 A	Locking Lever	On-On	Illuminated	-65 ░C	71 °C	Panel Mount	125 V	Wire Leads	3PDT	3/4-20	38.86 mm	Environment Sealed	Incandescent Red	28 VAC
