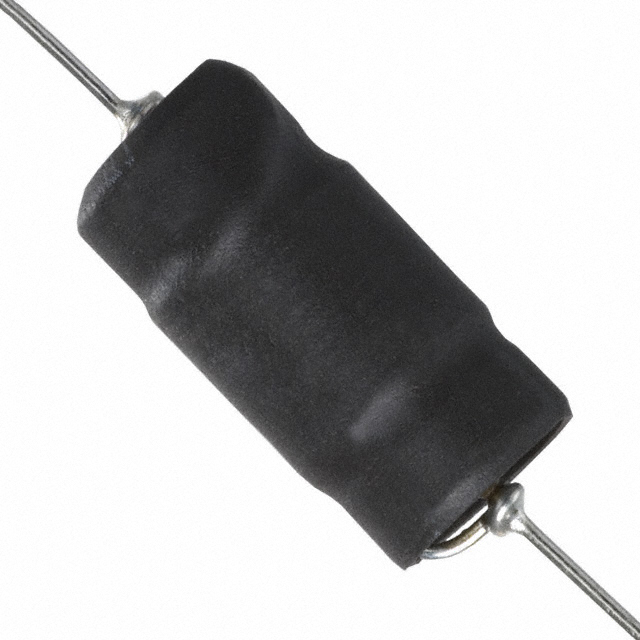

5900 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 120UH 2.1A 97 MOHM TH
| Part | Current Rating (Amps) | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Current - Saturation (Isat) | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Shielding | Tolerance | Material - Core | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Inductance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2.1 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 2.4 A | 1 kHz | 97 mOhm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | ||
Bourns Inc. | 1 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 1.1 A | 1 kHz | 460 mOhm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 560 µH | |
Bourns Inc. | 0.23 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 260 mA | 1 kHz | 7.6 Ohm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 10 mH | |
Bourns Inc. | 3.3 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 4.3 A | 1 kHz | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 39 µH | 39 mOhm | |
Bourns Inc. | 0.71 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 830 mA | 1 kHz | 830 mOhm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 1 mH | |
Bourns Inc. | 1.5 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 1.8 A | 1 kHz | 185 mOhm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 220 µH | |
Bourns Inc. | 100 mA | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 120 mA | 1 kHz | 40 Ohm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 47 mH | |
Bourns Inc. | 2.3 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 2.9 A | 1 kHz | 78 mOhm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 82 µH | |
Bourns Inc. | 190 mA | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 210 mA | 1 kHz | 11.5 Ohm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 15 mH | |
Bourns Inc. | 1.4 A | Drum Core Wirewound | 0.453 in | 11.51 mm | 0.9 in | 22.86 mm | 1.6 A | 1 kHz | 210 mOhm | Unshielded | 10 % | Ferrite | -55 C | 105 ░C | Axial | Through Hole | 270 µH |
