E5AC-TC Series

Manufacturer: Omron Automation and Safety

Catalog

2 CURR 6 EVENT TRANS OUT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Display Characters - Height	Display Characters - Height	Output Type	Display Type	Input Range [Max]	Input Range [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply	Mounting Type	Ingress Protection	Type	Termination Style	Control Method	Communications	Features	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Weight	Weight

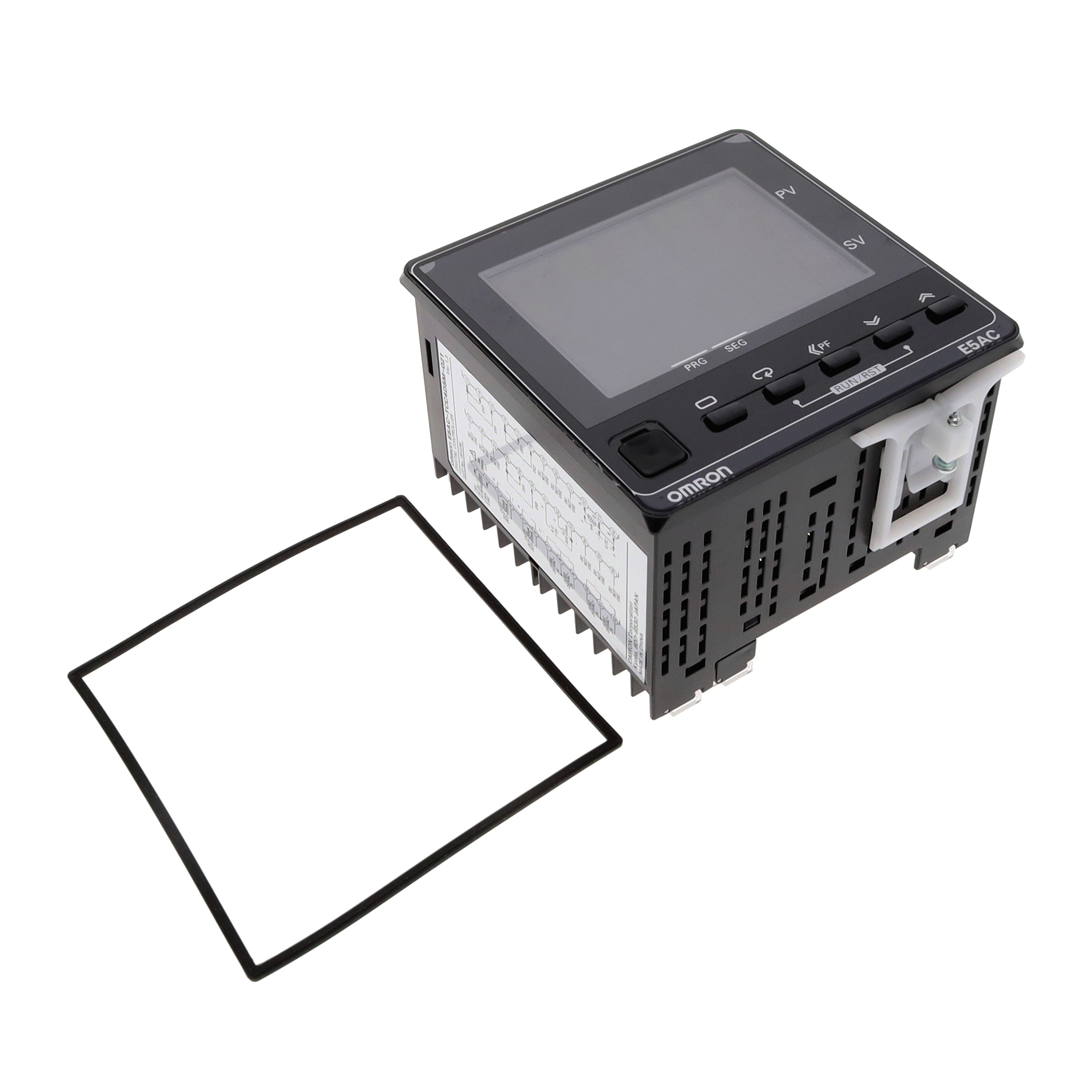

Omron Automation and Safety E5AC-TCC4D5M-021	55 °C	-10 °C	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	Relay	LCD White Characters	10 V 20 mA	0 V 0 A	96 mm	96 mm	24 VAC	Panel Mount	IP20 IP66	Temperature Controller (Type B C E J K L N P PLII R S T U)	Screw Terminal	On/Off Proportional (PID)	RS-485	Event Input	4	4	4

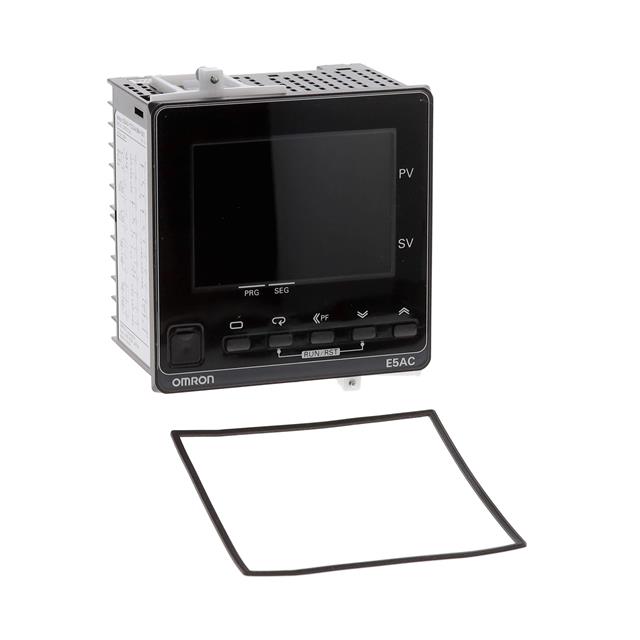

Omron Automation and Safety E5AC-TCC4A5M-021	55 °C	-10 °C	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	Relay	LCD White Characters	10 V 20 mA	0 V 0 A	96 mm	96 mm		Panel Mount	IP20 IP66	Temperature Controller (Type B C E J K L N P PLII R S T U)	Screw Terminal	On/Off Proportional (PID)	RS-485	Event Input	4	4	4	240 VAC	100 VAC

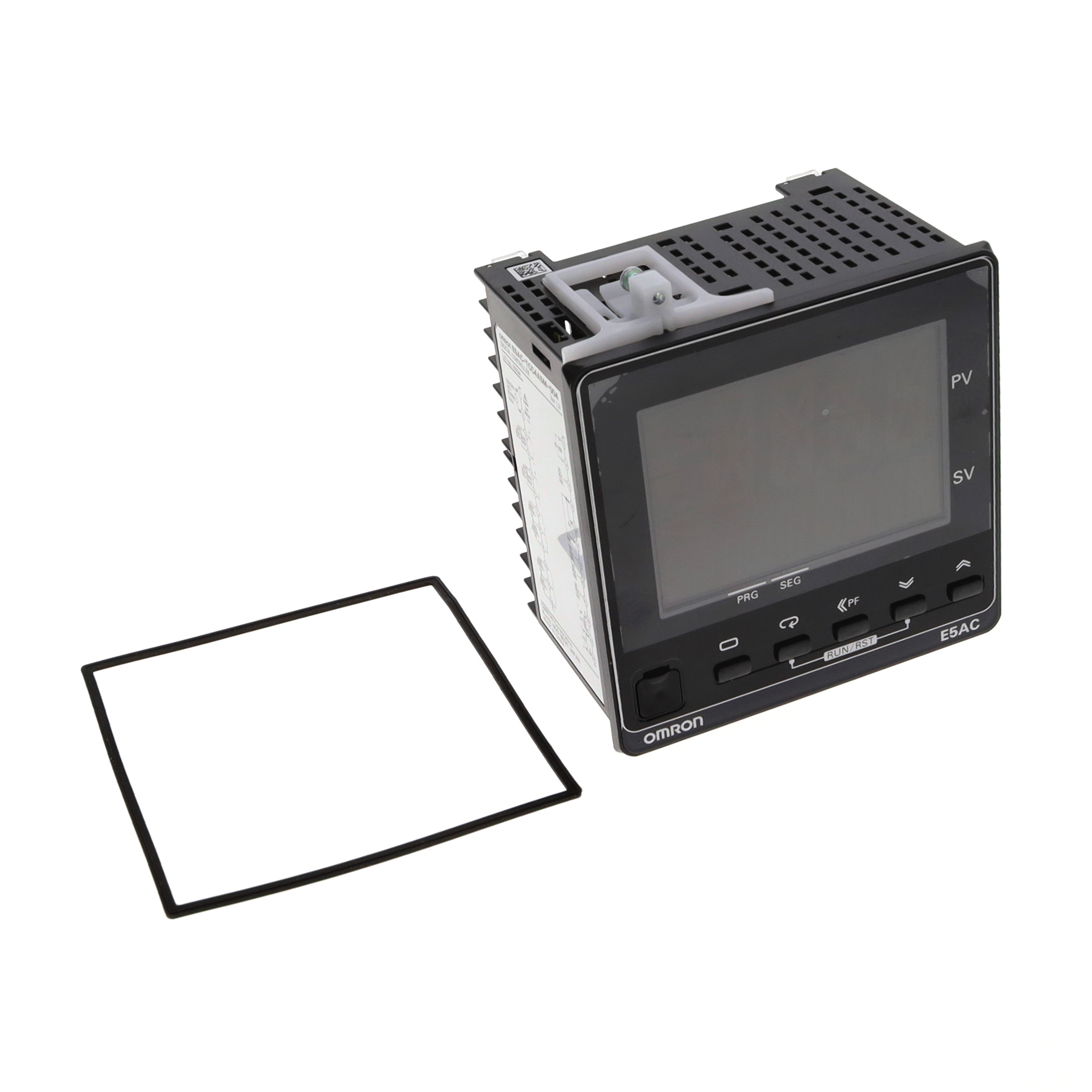

Omron Automation and Safety E5AC-TCC4A5M-004	55 °C	-10 °C	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	Relay	LCD White Characters	10 V 20 mA	0 V 0 A	96 mm	96 mm		Panel Mount	IP20 IP66	Temperature Controller (Type B C E J K L N P PLII R S T U)	Screw Terminal	On/Off Proportional (PID)	RS-485	Event Input	4	4	4	240 VAC	100 VAC
Omron Automation and Safety E5AC-TCX4D5M-021	55 °C	-10 °C	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	Analog Relay (4)	Backlight Tri Color Characters	10 V 20 mA 2300 °C	-200 °C 0 V 0 A	92 mm	92 mm	24 VAC	Panel Mount	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	On/Off Proportional (PID)		Event Input	4	4	4			0.551 lb	249.93 g
Omron Automation and Safety E5AC-TCC4D5M-004
Omron Automation and Safety E5AC-TCX4A5M-022	55 °C	-10 °C	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	Analog Relay (4)	Backlight Tri Color Characters	10 V 20 mA 2300 °C	-200 °C 0 V 0 A	92 mm	92 mm		Panel Mount	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	On/Off Proportional (PID)	RS-485 (CompoWay/F Modbus)	Event Input	4	4	4	240 VAC	100 VAC	0.551 lb	249.93 g
Omron Automation and Safety E5AC-TCQ4A5M-000	55 °C	-10 °C	0.374 in 0.59 in 0.984 in	9.5 mm 15 mm 25 mm	Analog Relay (4) Voltage (External SSR)	Backlight Tri Color Characters	10 V 20 mA 2300 °C	-200 °C 0 V 0 A	92 mm	92 mm		Panel Mount	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	On/Off Proportional (PID)			4	4	4	240 VAC	100 VAC
Omron Automation and Safety E5AC-TCC4A5M-005
Omron Automation and Safety E5AC-TCC4A5M-022
Omron Automation and Safety E5AC-TCC4D5M-000
