BAT54 Series

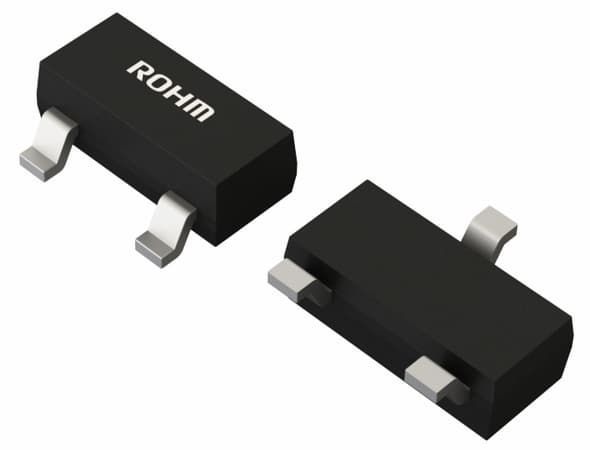

30V, 200mA, SOT-23, Anode Common, Schottky Barrier Diode for Automotive

Catalog

30V, 200mA, SOT-23, Anode Common, Schottky Barrier Diode for Automotive

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Technology	Reverse Recovery Time (trr)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Grade	Speed	Speed	Diode Configuration	Mounting Type	Package / Case	Current - Average Rectified (Io) (per Diode)	Qualification	Current - Average Rectified (Io)	Capacitance @ Vr, F	Operating Temperature - Junction
Rohm Semiconductor BAT54AHMFHT116	30 V	2 çA	Schottky	50 ns	SSD3	800 mV	150 °C	Automotive	200 mA	Any Speed	1 Pair Common Anode	Surface Mount	SC-59 SOT-23-3 TO-236-3	200 mA	AEC-Q101
Rohm Semiconductor BAT54CHMT116	30 V	2 çA	Schottky	50 ns	SSD3	800 mV	150 °C		200 mA	Any Speed	1 Pair Common Cathode	Surface Mount	SC-59 SOT-23-3 TO-236-3	200 mA
Rohm Semiconductor BAT54HMFHT116	30 V	2 çA	Schottky	50 ns	SSD3	800 mV	150 °C	Automotive	200 mA	Any Speed		Surface Mount	SC-59 SOT-23-3 TO-236-3		AEC-Q101	200 mA	12 pF
Rohm Semiconductor BAT54AHYFHT116	30 V	2 çA	Schottky	50 ns	SSD3	800 mV	150 °C	Automotive	200 mA	Any Speed	1 Pair Common Anode	Surface Mount	SC-59 SOT-23-3 TO-236-3	200 mA	AEC-Q101
Rohm Semiconductor BAT54HYFHT116	30 V	2 çA	Schottky	50 ns	SOT-23	800 mV		Automotive	200 mA	Any Speed		Surface Mount	SC-59 SOT-23-3 TO-236-3		AEC-Q101	200 mA	12 pF	150 ¯C
Rohm Semiconductor BAT54AHMT116	30 V	2 çA	Schottky	50 ns	SSD3	800 mV	150 °C		200 mA	Any Speed	1 Pair Common Anode	Surface Mount	SC-59 SOT-23-3 TO-236-3	200 mA

Catalog

30V, 200mA, SOT-23, Anode Common, Schottky Barrier Diode for Automotive

Description

BAT54AHYFH is low VFand high reliability Automotive Schottky Barrier Diode, suitable for small current rectification. This product complies AEC-Q101 Automotive Grade.
