OSTTD05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

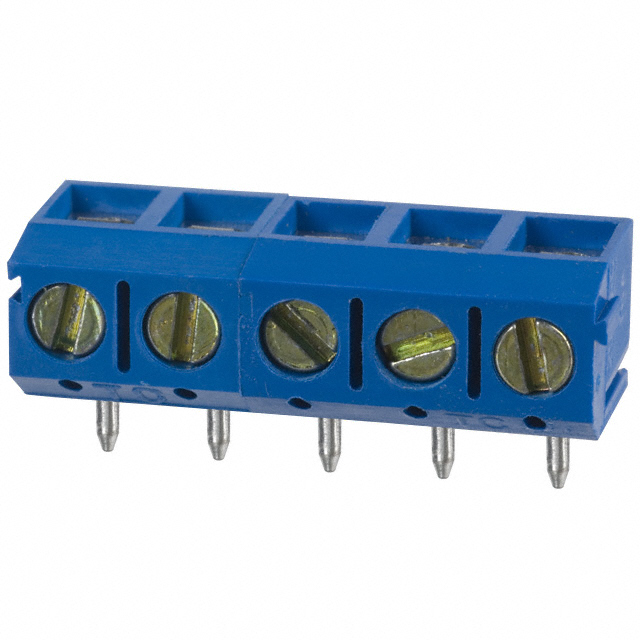

TERM BLK 5POS TOP ENTRY 5MM PCB
| Part | Clamp Material - Plating [custom] | Housing Material | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Screw Material - Plating | Screw Thread | Wire Termination | Number of Levels | Features | Pitch | Pitch | Positions Per Level | Mounting Type | Color | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Stainless Steel | Thermoplastic | Tin Plated | -30 ░C | 105 ░C | 2.6 Lb-In | 0.3 Nm | Steel - Zinc Plated | M2.6 | Screw - Leaf Spring Wire Guard | 1 | Interlocking (Side) | 0.197 in | 5 mm | 5 | Through Hole | Blue | Vertical with Board | 14 AWG | 22 AWG | 16 A |
