09200321 Series
Manufacturer: HARTING
Beta
⌘K

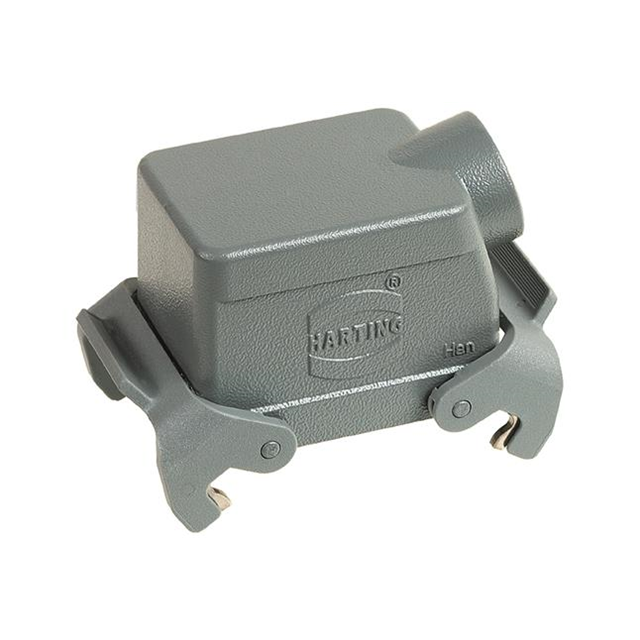

HAN A HOOD SIDE ENTRY LC 2 LEVERS PG 21 ROHS COMPLIANT: NA
| Part | Housing Finish | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Ingress Protection | Housing Color | Lock Location | Style | Size | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

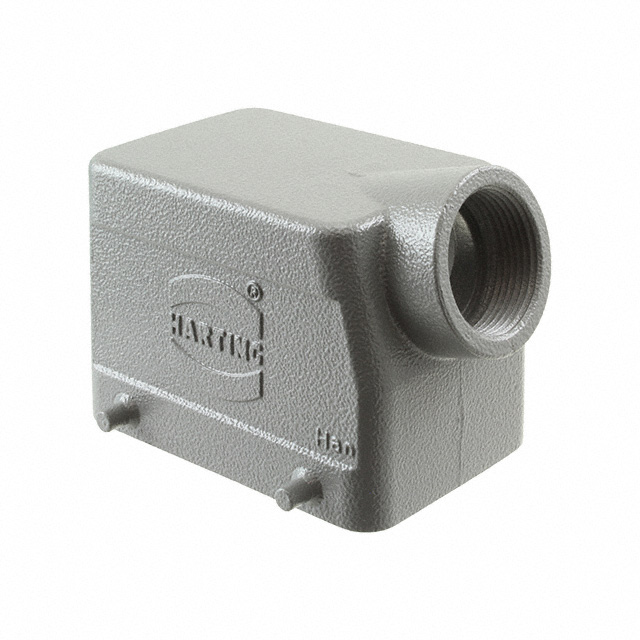

 HARTING | Powder Coated | 56 mm | 82 mm | 3.228 in | 60 mm | 2.362 in | 2.205 in | IP65 - Dust Tight Water Resistant | Gray | Locking Clip (2) on Hood | Side Entry | 32 A | Hood | 125 °C | -40 C | Aluminum Die Cast | PG21 |
 HARTING | Powder Coated | 56 mm | 82 mm | 3.228 in | 60 mm | 2.362 in | 2.205 in | IP65 - Dust Tight Water Resistant | Gray | Locking Clip (2) on Base Bottom | Side Entry | 32 A | Hood | 125 °C | -40 C | Aluminum Die Cast | PG21 |
