SS-82000 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

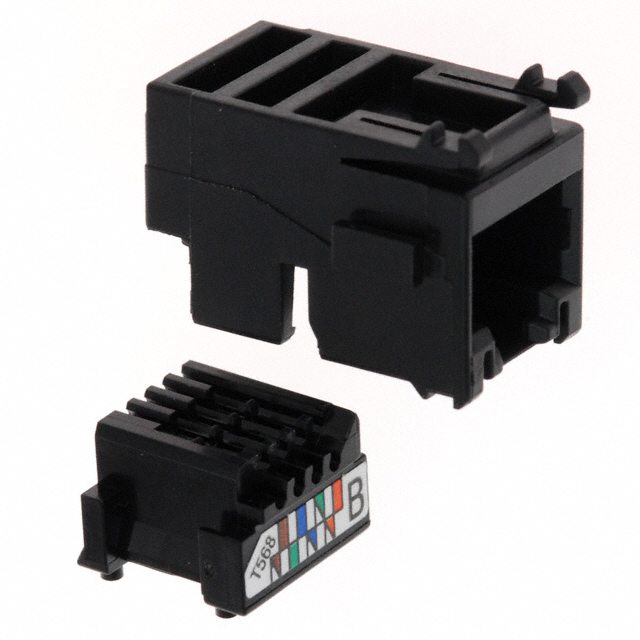

CONN MOD JACK 8P8C UNSHIELDED
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Shielding | Number of Rows | Orientation | Features | Number of Positions/Contacts | Tab Direction | Termination | Mounting Type | Contact Finish | LED Color | Contact Material | Number of Ports | Ratings | Connector Type | Exterior Contact Finish Thickness | Exterior Contact Finish Thickness | Exterior Contact Material | Interior Type (Adapter End) | Style | Interior Contact Material [custom] | Exterior Contact Finish | Exterior Type (Adapter End) | Interior Contact Finish Thickness [custom] | Interior Contact Finish Thickness [custom] | Interior Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

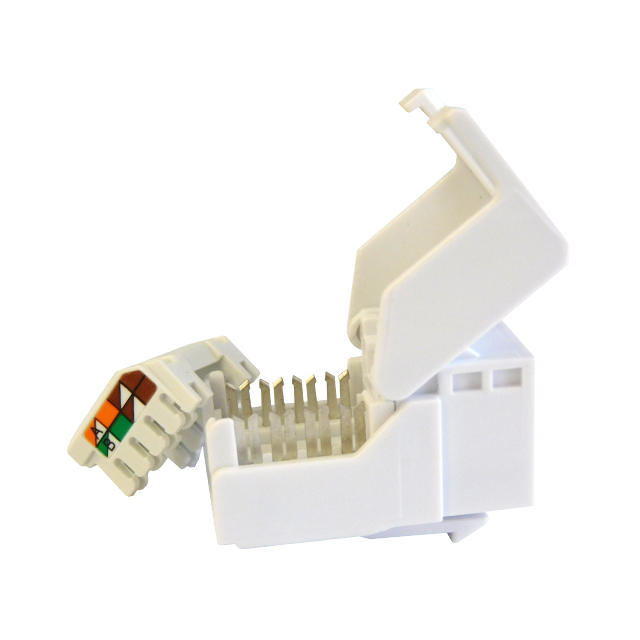

 Bel Fuse Inc. | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Unshielded | 1 | Straight | Latch Lock | 8p8c (RJ45 Ethernet) | User Selectable | IDC | Panel Mount | Gold | Does Not Contain LED | Copper Alloy | 1 | Cat5e | Jack | |||||||||||

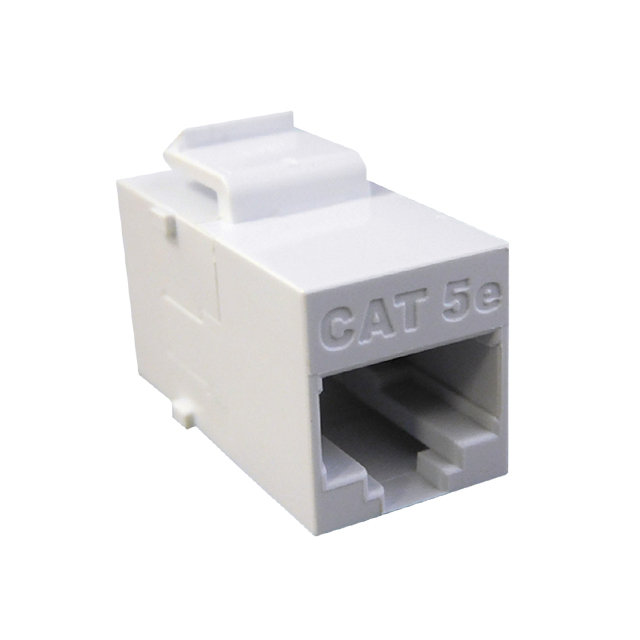

 Bel Fuse Inc. | Panel Lock Panel Stops | Cat5e | 50 Áin | 1.27 Ám | Phosphor Bronze | Modular Jack 8p8c (RJ45 Ethernet) | Modular | Phosphor Bronze | Gold | Modular Jack 8p8c (RJ45 Ethernet) | ||||||||||||||||||||
 Bel Fuse Inc. | Latch Lock | Cat5e | 50 Áin | 1.27 Ám | Phosphor Bronze | IDC Pressdown Punchdown Block | Modular | Phosphor Bronze | Gold | Modular Jack 8p8c (RJ45 Ethernet) | 100 µin | 2.54 µm | Tin |
