MVSTBU Series

Catalog

PLUGGABLE TERMINAL BLOCKS 11 POS 5.08MM PITCH BOX HEADER

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Material Flammability Rating	Wire Strip Length	Screw Size	Insulation Height [z]	Insulation Height [z]	Housing Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Number of Positions	Current - IEC	Pitch	Pitch	Positions Per Level	Number of Levels	Features	Voltage - IEC	Type	Mounting Type	Contact Mating Finish	Current - UL	Voltage - UL	Termination Style

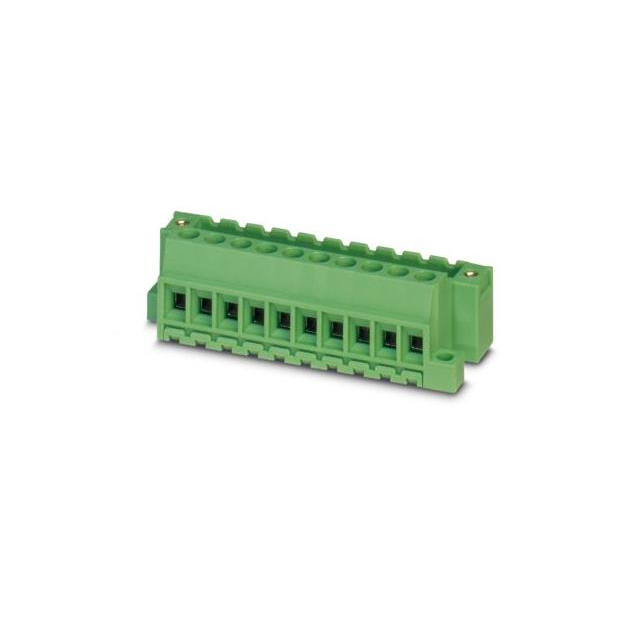

Phoenix Contact 1788431	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	7 mm	M3	0.681 in	17.3 mm	Polyamide (PA) Nylon	30 AWG	12 AWG	2.5 mm²	0.2 mm²	Green	11	12 A	5.08 mm	0.2 in	11	1	Mating and Mounting Flange	630 V	Receptacle Male Pins	Board Mount	Tin	10 A	300 V	Screw
Phoenix Contact 1788473	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	UL94 V-0	7 mm	M3	0.681 in	17.3 mm	Polyamide (PA) Nylon	30 AWG	12 AWG	2.5 mm²	0.2 mm²	Green	15	12 A	5.08 mm	0.2 in	15	1	Mating and Mounting Flange	630 V	Receptacle Male Pins	Board Mount	Tin	10 A	300 V	Screw
