227743 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

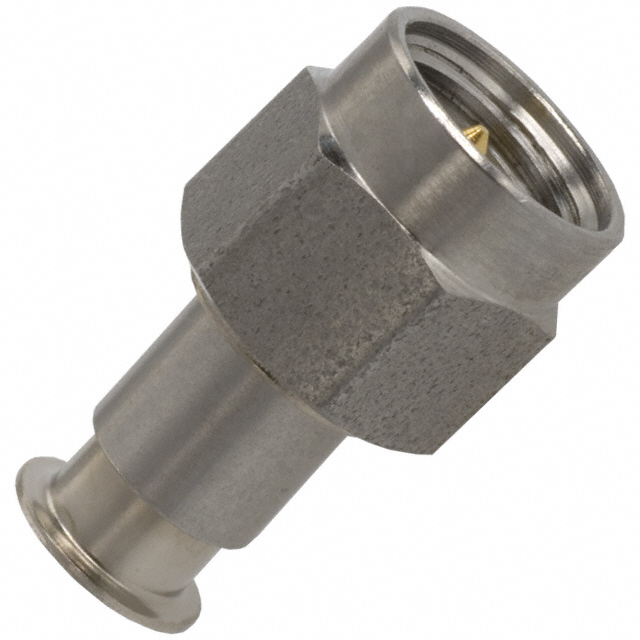

CONN SMA PLUG STR 50 OHM CRIMP
| Part | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mounting Type | Impedance | Connector Type | Center Contact Plating | Number of Ports | Housing Color | Frequency - Max [Max] | Insertion Loss | Body Material | Mating Cycles | Connector Style | Dielectric Material | Voltage Rating | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Beryllium Copper | -65 ░C | 105 ░C | Crimp | Free Hanging (In-Line) | 50 Ohms | Male Pin Plug | Gold | 1 | Silver | 18 GHz | 0.3 dB | Stainless Steel | 500 | SMA | Polytetrafluoroethylene (PTFE) | 500 V | Crimp |
