A766KE Series

Manufacturer: KEMET

Catalog

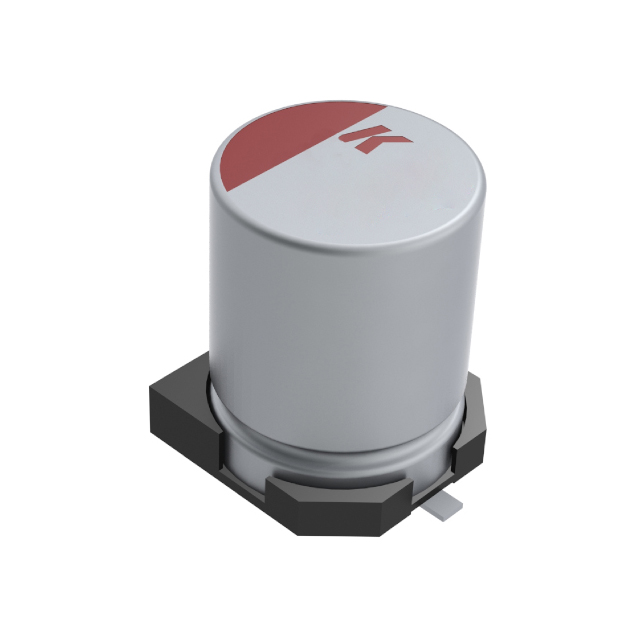

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 47 ΜF, 20 V, RADIAL CAN - SMD, 0.045 OHM

Part	Applications	Lifetime @ Temp.	Package / Case	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Ripple Current @ High Frequency	Voltage - Rated
KEMET A766KE476M1DLAE045	General Purpose	5000 Hrs	Radial Can - SMD	20 %	47 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	94.5 mA	Surface Mount	0.276 in	7 mm	45 mOhm	8.3 mm	8.3 mm	0.327 in	0.327 in	1.89 A	20 V
KEMET A766KE826M1CLAE030	General Purpose	5000 Hrs	Radial Can - SMD	20 %	0.082 mF	-55 C	105 ░C	Polymer	0.315 in	8 mm	138 mA	Surface Mount	0.276 in	7 mm	30 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	2.76 A	16 V
KEMET A766KE157M1ALAE030	General Purpose	5000 Hrs	Radial Can - SMD	20 %	150 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	138 mA	Surface Mount	0.276 in	7 mm	30 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	2.76 A	10 V
KEMET A766KE227M0JLAE022	General Purpose	5000 Hrs	Radial Can - SMD	20 %	220 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	161 mA	Surface Mount	0.276 in	7 mm	22 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	3.22 A	6.3 VDC
KEMET A766KE127M1CLAE027	General Purpose	5000 Hrs	Radial Can - SMD	20 %	120 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	145 mA	Surface Mount	0.276 in	7 mm	27 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	2.9 A	16 V
KEMET A766KE277M0GLAE022	General Purpose	5000 Hrs	Radial Can - SMD	20 %	270 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	161 mA	Surface Mount	0.276 in	7 mm	22 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	3.22 A	4 V
KEMET A766KE567M0GLAE022	General Purpose	5000 Hrs	Radial Can - SMD	20 %	560 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	161 mA	Surface Mount	0.276 in	7 mm	22 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	3.22 A	4 V
KEMET A766KE106M1ELAE060	General Purpose	5000 Hrs	Radial Can - SMD	20 %	10 µF	-55 C	105 ░C	Polymer	0.315 in	8 mm	75 mA	Surface Mount	0.276 in	7 mm	60 mOhms	8.3 mm	8.3 mm	0.327 in	0.327 in	1.5 A	25 VDC
