174639 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

1.25FP,R18,DL,B,N,BG ROHS COMPLIANT: YES

Part	Contact Material	Insulation Material	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Voltage Rating	Number of Positions	Connector Type	Number of Rows [custom]	Termination	Fastening Type	Contact Type	Contact Finish - Post	Mounting Type	Features	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 4-174639-8	Phosphor Bronze	Polyphenylene Sulfide (PPS)	Circular	UL94 V-0	31.5 µin	0.8 µm	Black	0.049 in	1.25 mm	0.134 in	3.4 mm	-30 ░C	105 ░C	All	50 V	18	Receptacle	2	Solder	Push-Pull	Forked	Tin	Surface Mount	Board Guide	0.5 A	1.25 mm	0.049 in
TE Connectivity AMP Connectors 4-174639-2	Phosphor Bronze	Polyphenylene Sulfide (PPS)	Circular	UL94 V-0	31.5 µin	0.8 µm	Black	0.049 in	1.25 mm	0.134 in	3.4 mm	-30 ░C	105 ░C	All	50 V	12	Receptacle	2	Solder	Push-Pull	Forked	Tin	Surface Mount	Board Guide	0.5 A	1.25 mm	0.049 in

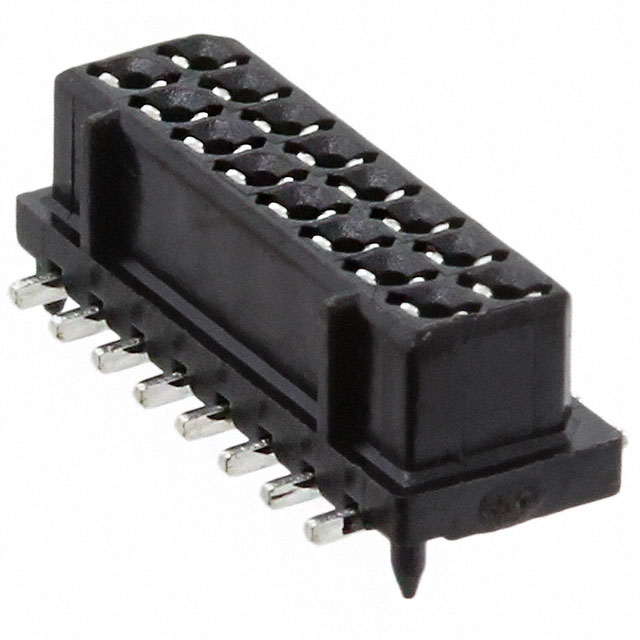

TE Connectivity AMP Connectors 4-174639-6	Phosphor Bronze	Polyphenylene Sulfide (PPS)	Circular	UL94 V-0	31.5 µin	0.8 µm	Black	0.049 in	1.25 mm	0.134 in	3.4 mm	-30 ░C	105 ░C	All	50 V	16	Receptacle	2	Solder	Push-Pull	Forked	Tin	Surface Mount	Board Guide	0.5 A	1.25 mm	0.049 in
TE Connectivity AMP Connectors 4-174639-4	Phosphor Bronze	Polyphenylene Sulfide (PPS)	Circular	UL94 V-0	31.5 µin	0.8 µm	Black	0.049 in	1.25 mm	0.134 in	3.4 mm	-30 ░C	105 ░C	All	50 V	14	Receptacle	2	Solder	Push-Pull	Forked	Tin	Surface Mount	Board Guide	0.5 A	1.25 mm	0.049 in
