RR9LG2400 Series

Catalog

AC/DC DSKTP/WALL MT ADPT 15V 36W

Part	Approval Agency	Polarization	Power (Watts)	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Output Connector [diameter]	Output Connector	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Voltage - Output	Form	Applications	Efficiency	No Load Power Consumption	Input Type	Current - Output (Max) [Max]	Input Connector

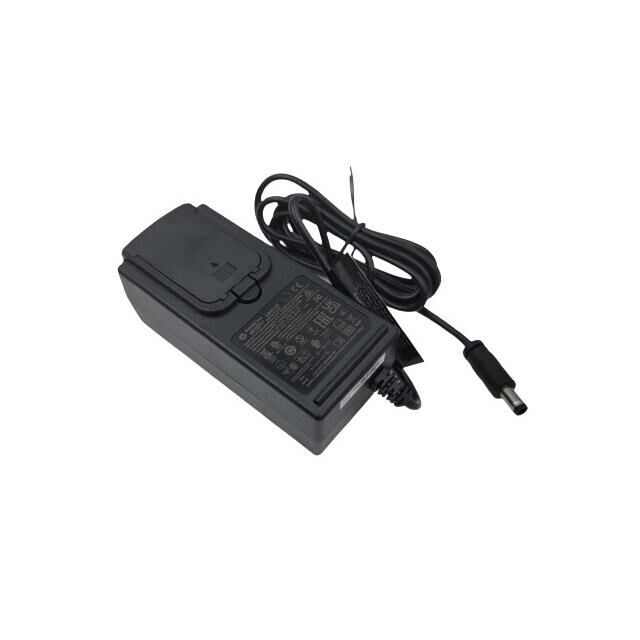

GlobTek, Inc. RR9LG2400LCPCIMR6B	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI	Positive Center	36 W	60.2 in	1.53 m	1.83 "	38.2 mm	46.5 mm	101.7 mm	1.5 in	4 in	2.5 mm 5.5 mm	Barrel Plug	11 mm	264 VAC	90 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	International	15 V	Desktop Wall Mount	Household Appliances ITE (Commercial) Medical	Level VI	75 mW	Cord Multi-Blade (Sold Separately)	2.4 A

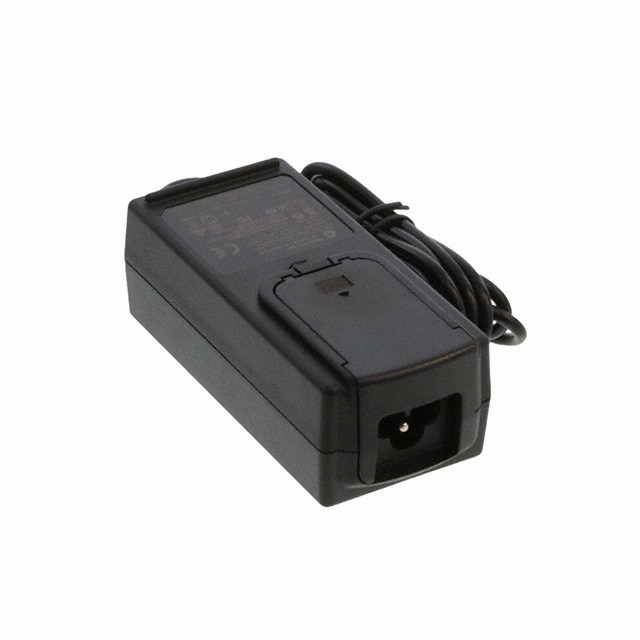

GlobTek, Inc. RR9LG2400CCPCIMR6B	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI	Positive Center	36 W	60.2 in	1.53 m	1.83 "	38.2 mm	46.5 mm	101.7 mm	1.5 in	4 in	2.1 mm 5.5 mm	Barrel Plug	11 mm	264 VAC	90 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	International	15 V	Desktop Wall Mount	Household Appliances ITE (Commercial) Medical	Level VI	75 mW	Cord Multi-Blade (Sold Separately)	2.4 A
GlobTek, Inc. RR9LG2400T00NAIMR6B	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO VCCI		36 W	59 in	1.5 m	1.83 "	38.2 mm	46.5 mm	101.7 mm	1.5 in	4 in		Barrel Plug Kit (1.3mm x 3.5mm		264 VAC	90 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	-20 ░C	40 °C	International	15 V	Desktop Wall Mount	Household Appliances ITE (Commercial) Medical	Level VI	75 mW	Cord (Sold Separately) Multi-Blade (Single Blade Included)	2.4 A	IEC 320-C6 Multi-Blade (Single Blade Included)
