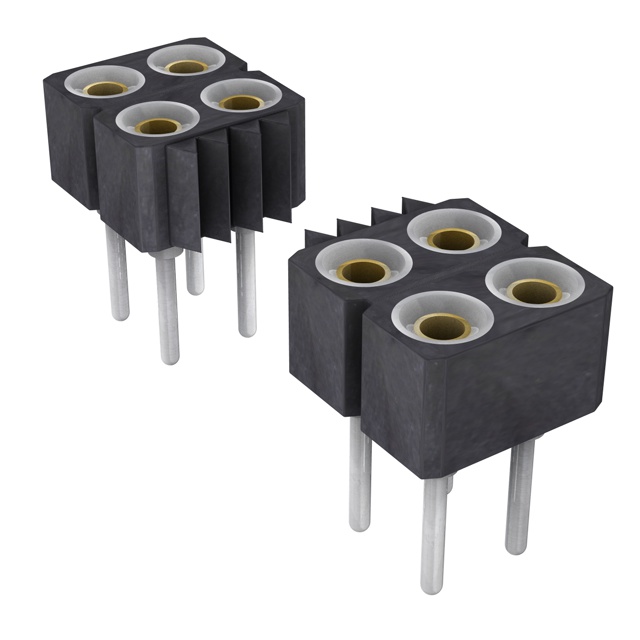

411-87 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 4POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Termination	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Type	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Mounting Type	Number of Positions	Number of Positions [custom]

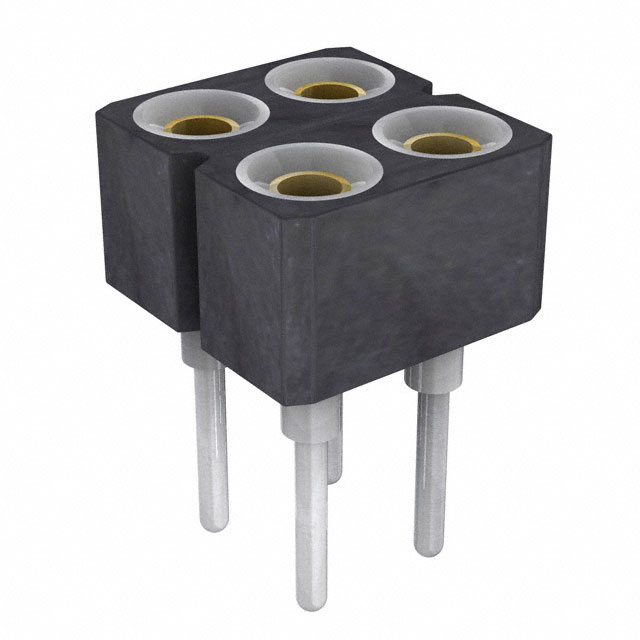

Preci-Dip 411-87-204-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	4
Preci-Dip 411-87-250-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	50
Preci-Dip 411-87-234-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole		34
Preci-Dip 411-87-232-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole
Preci-Dip 411-87-210-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	10
Preci-Dip 411-87-216-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	16

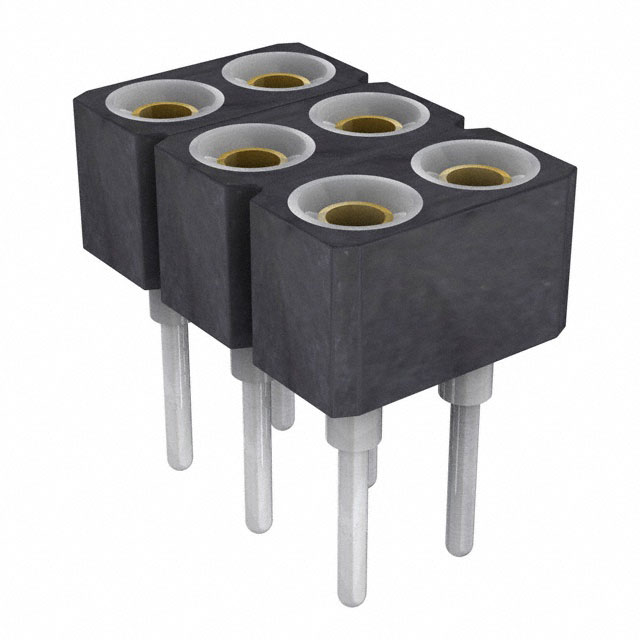

Preci-Dip 411-87-206-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	6
Preci-Dip 411-87-240-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	40
Preci-Dip 411-87-224-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	24
Preci-Dip 411-87-236-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Black	0.1 "	2.54 mm	3 A	Solder	0.165 in	4.19 mm	2	-55 C	125 °C	UL94 V-0	0.1 in	2.54 mm	4.1 mm	0.161 in	Female Socket	All	Push-Pull	Tin	Flash	Gold	Socket	Through Hole	36
