PEC28 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 28POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Style	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Termination	Fastening Type	Material Flammability Rating	Insulation Material	Current Rating (Amps)	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Shrouding	Number of Positions Loaded	Contact Finish - Post	Contact Type	Connector Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]

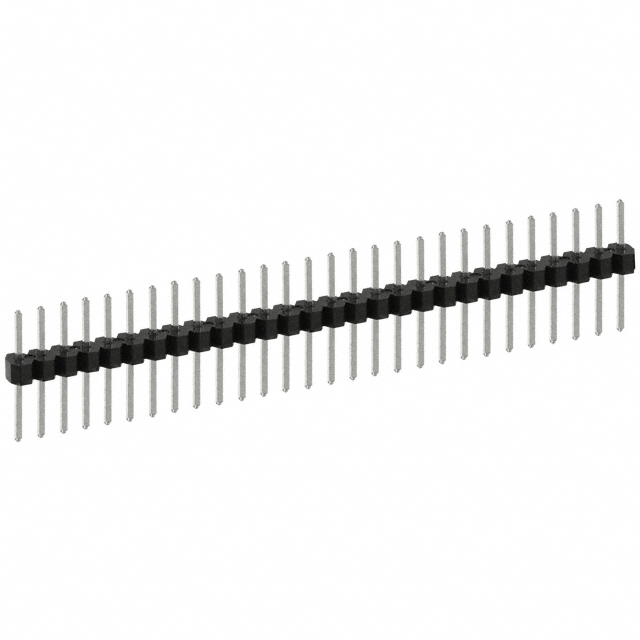

Sullins Connector Solutions PEC28SACN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	28	Square	Board to Board Cable	-65 ░C	125 °C	16.51 mm	0.65 in	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A	1	8.13 mm	0.32 in	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway

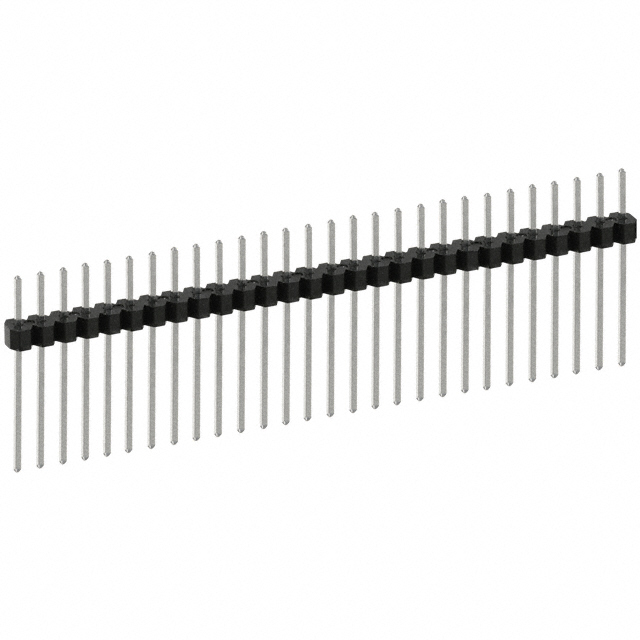

Sullins Connector Solutions PEC28SAGN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	28	Square	Board to Board Cable	-65 ░C	125 °C	26.67 mm	1.05 in	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A	1	18.29 mm	0.72 "	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway

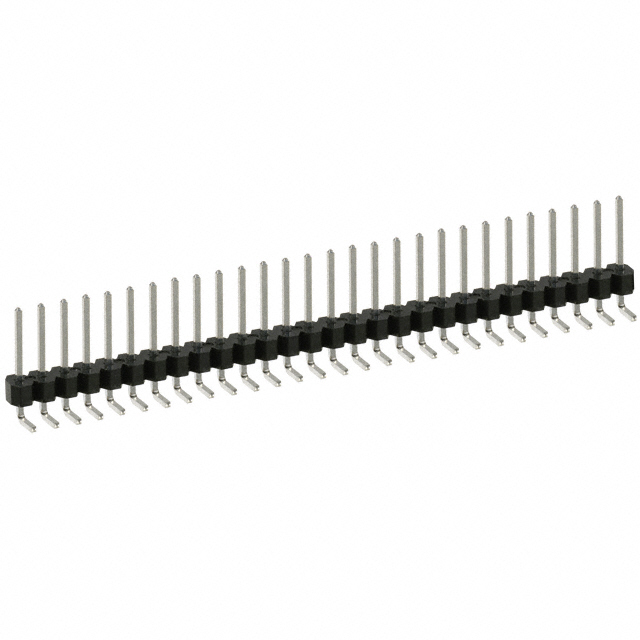

Sullins Connector Solutions PEC28SGAN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.14 in	3.56 mm	28	Square	Board to Board Cable	-65 ░C	125 °C			0.1 "	2.54 mm	Phosphor Bronze	Right Angle Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A	1	2.54 mm	0.1 in	0.318 in	8.08 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway
Sullins Connector Solutions PEC28DBEN	2.54 µm	100 µin	Black	100 çin	2.54 çm			56	Square	Board to Board Cable	-65 ░C	125 °C			0.1 "	2.54 mm	Phosphor Bronze	Right Angle Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A		12.7 mm	0.5 "	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway	6.1 mm	0.24 in	2	0.1 in	2.54 mm

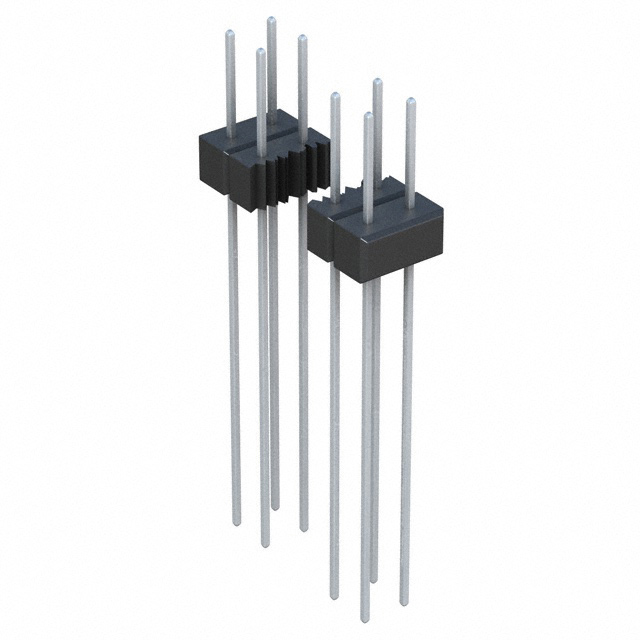

Sullins Connector Solutions PEC28DAHN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	56	Square	Board to Board Cable	-65 ░C	125 °C	29.21 mm	1.15 in	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A		20.83 mm	0.82 in	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway			2	0.1 in	2.54 mm

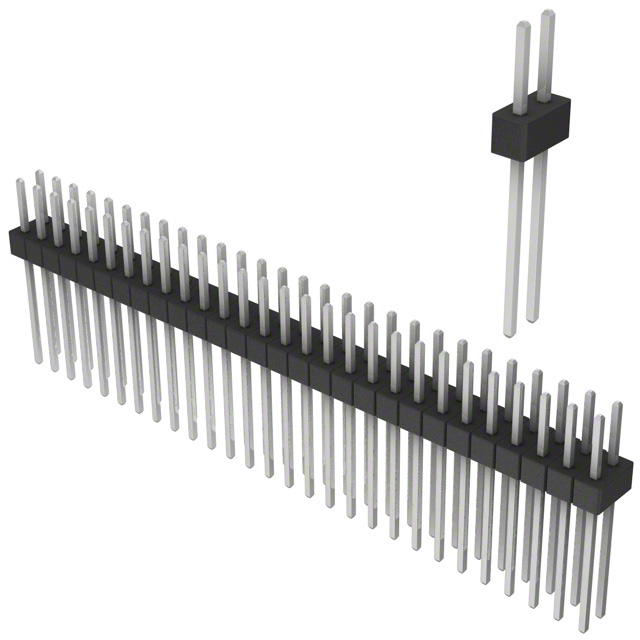

Sullins Connector Solutions PEC28DAEN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	56	Square	Board to Board Cable	-65 ░C	125 °C	21.59 mm	0.85 in	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A		13.21 mm	0.52 in	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway			2	0.1 in	2.54 mm

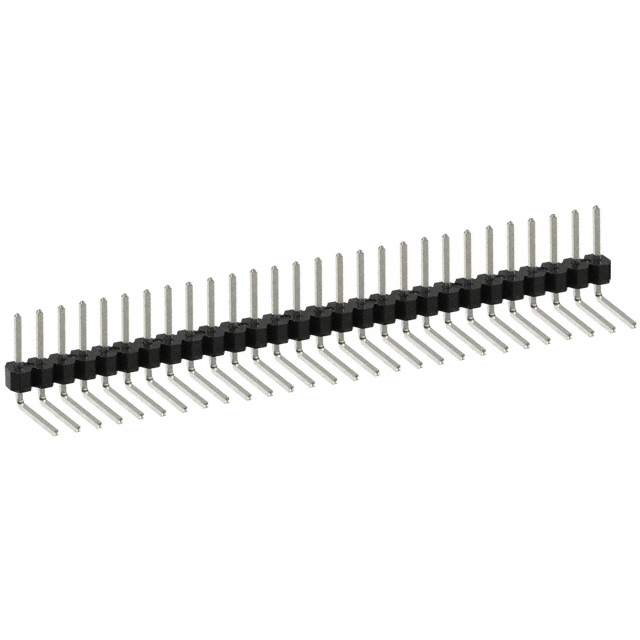

Sullins Connector Solutions PEC28SBCN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.14 in	3.56 mm	28	Square	Board to Board Cable	-65 ░C	125 °C			0.1 "	2.54 mm	Phosphor Bronze	Right Angle Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A	1	7.62 mm	0.3 in	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway

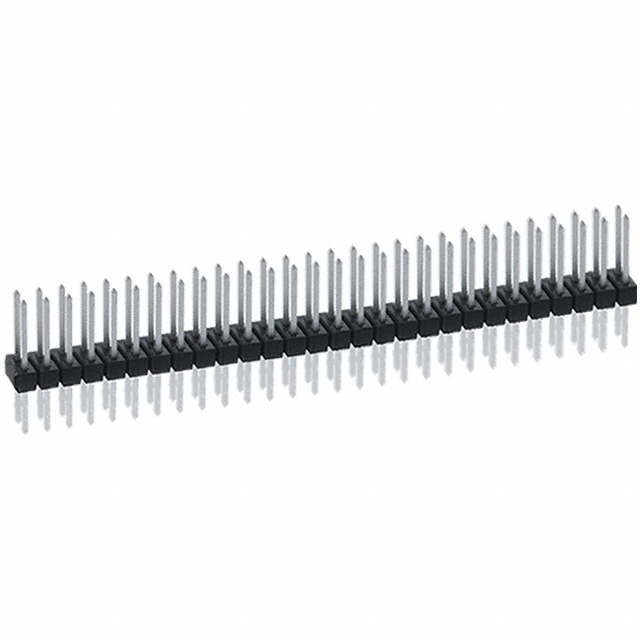

Sullins Connector Solutions PEC28DFBN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	56	Square	Board to Board Cable	-65 ░C	125 °C	16.21 mm	0.638 in	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A		5.58 mm	0.22 in	0.318 in	8.08 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway			2	0.1 in	2.54 mm
Sullins Connector Solutions PEC28SFAN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	28	Square	Board to Board Cable	-65 ░C	125 °C			0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A	1	3.05 mm	0.12 in	0.318 in	8.08 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway						13.67 mm	0.538 in
Sullins Connector Solutions PEC28DAAN	2.54 µm	100 µin	Black	100 çin	2.54 çm	0.1 in	2.54 mm	56	Square	Board to Board Cable	-65 ░C	125 °C			0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Solder	Push-Pull	UL94 V-0	Polybutylene Terephthalate (PBT)	3 A		3.05 mm	0.12 in	0.23 in	5.84 mm	Unshrouded	All	Tin	Male Pin	Header Breakaway			2	0.1 in	2.54 mm	11.43 mm	0.45 in
